➤ Used Engel Victory 750/180 Power For Sale | gindumac.com

Show in original language

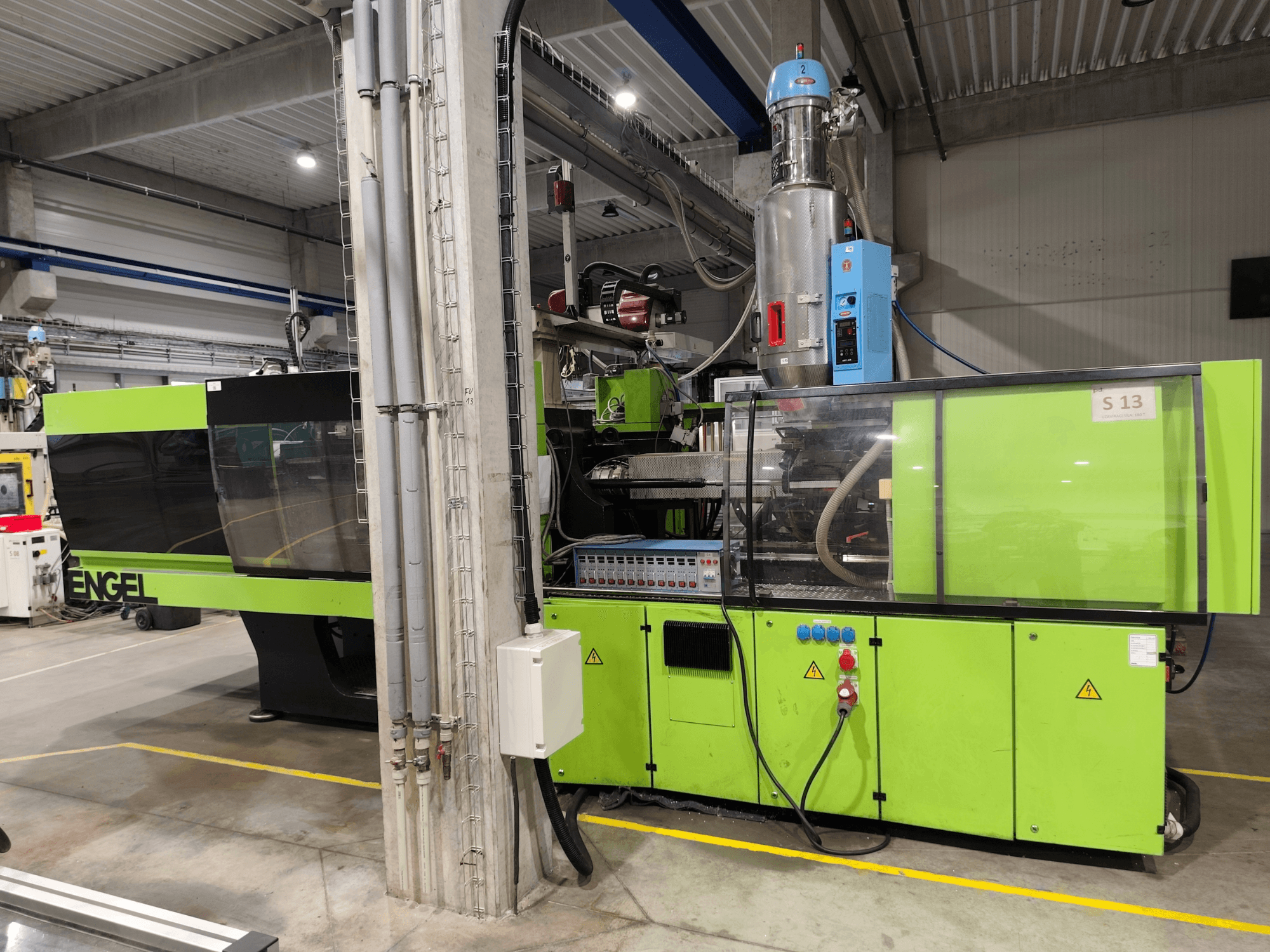

Hydraulic injection moulding machine manufactured in 2004. This Engel Victory 750/180 Power features a clamping force of 1,600 kN and a maximum injection volume of 259 cm³. It includes a screw diameter of 45 mm and a maximum injection pressure of 1,600 Bar. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 750/180 Power machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Engel
year: 2004
MODEL: Victory 750/180 Power
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel Victory 750/180 Power

Technical Specification

Clamping Force: 1600 kN
Screw Diameter: 45 mm

Additional Information

Space between columns: 520 x 520 mm
Maximum mold height: 585 mm
Minimum mold height: 275 mm
Maximum injection volume: 259 cm³
Maximum injection pressure: 1,600 bar
Centering ring: 160 mm
Hot runners in the machine: 8
Core puller: 1
Pneumatic valves: 2
Programmable inputs: 2

Additional equipment

Robot: Wittmann W818 (MY: 2015)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
