Engel - DUO 3550/400 pico RO-INJ-ENG-2013-00003

Rs. 12,085,514
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

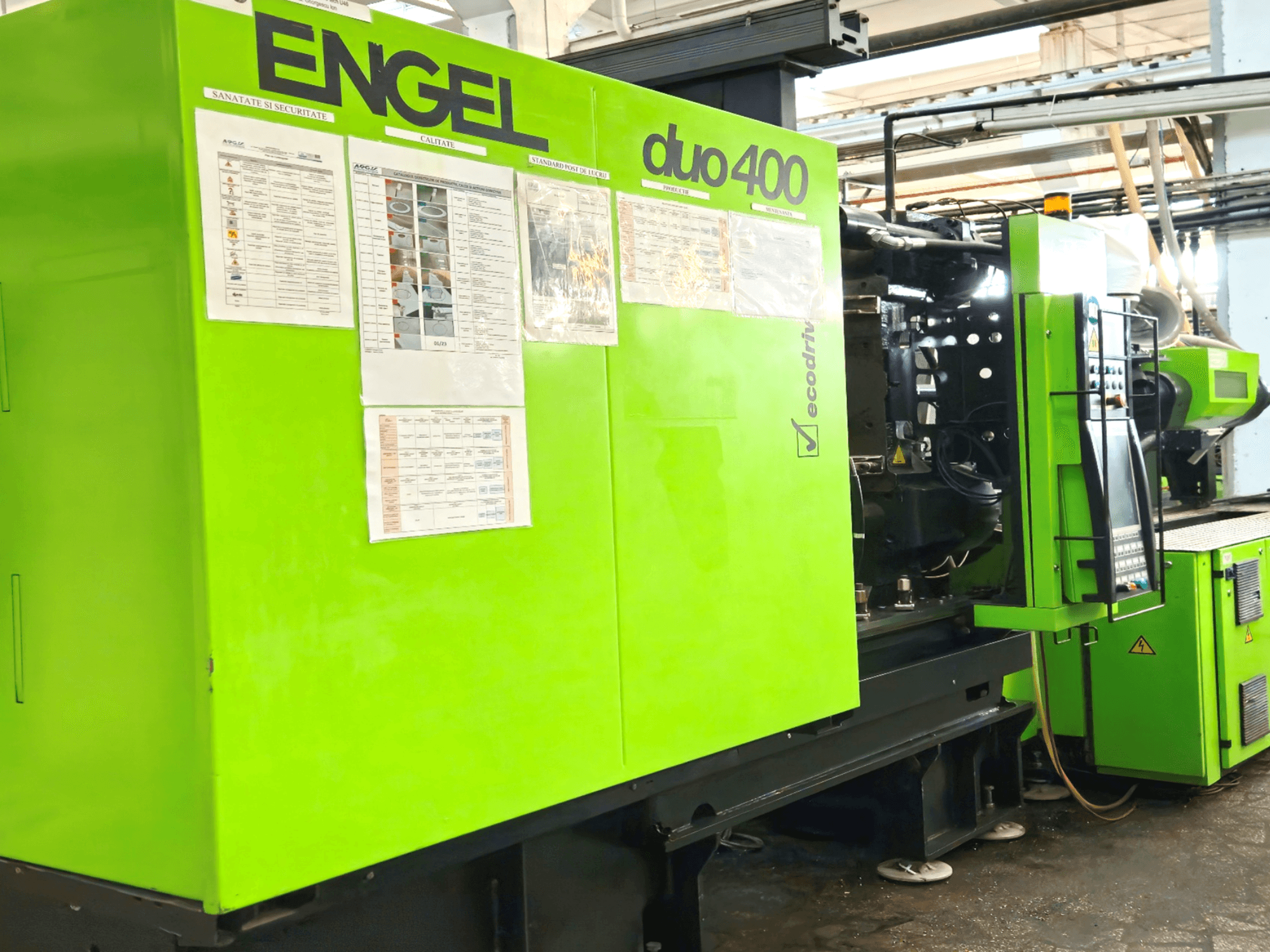

This Engel DUO 3550/400 pico was manufactured in 2013. It features a clamping force of 4,000 kN, a screw diameter of 80 mm, and a maximum injection volume of 1,960 cm³. The machine dimensions are 7,420 × 2,360 × 2,360 mm, and it weighs 11,000 kg. It is equipped with a robot interface Euromap 67. Contact us for more information about this machine.

Overview

  • brand: Engel
  • year: 2013
  • MODEL: DUO 3550/400 pico
  • production hours: 60672
  • application type: Injection Moulding
  • Location: Romania
  • machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel DUO 3550/400 pico

Dimensions

  • Machine Height: 2360 mm
  • Machine Length: 7420 mm
  • Machine Weight: 11000 kg

Technical Specification

  • Clamping Force: 4000 kN
  • Screw Diameter: 80 mm

Additional Information

  • Operating hours: 60,672 h

  • Condition: Excellent

  • Status: In production

  • Maximum injection volume: 1,960 cm³

  • Minimum mould height: 350 mm

  • Maximum mould height: 850 mm

  • Platen opening stroke: 1,050 mm

  • Platen dimensions (W × L): 1,100 × 1,190 mm

  • Tie-bar distance: 800 × 800 mm

  • Motor power: 70 kW

  • Heater power: 52.95 kW

  • Number of electrical connection pins: 32

  • Injection nozzle radius (tip): R35

  • Centering ring diameter: 200 mm

  • Number of cores: 0

  • Number of heating zones: 0

Additional equipment

  • Robot equipped: Yes

  • Robot interface: Euromap 67

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
