Engel - DUO 7050/650 picoRO-INJ-ENG-2013-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Engel DUO 7050/650 pico For Sale | gindumac.com

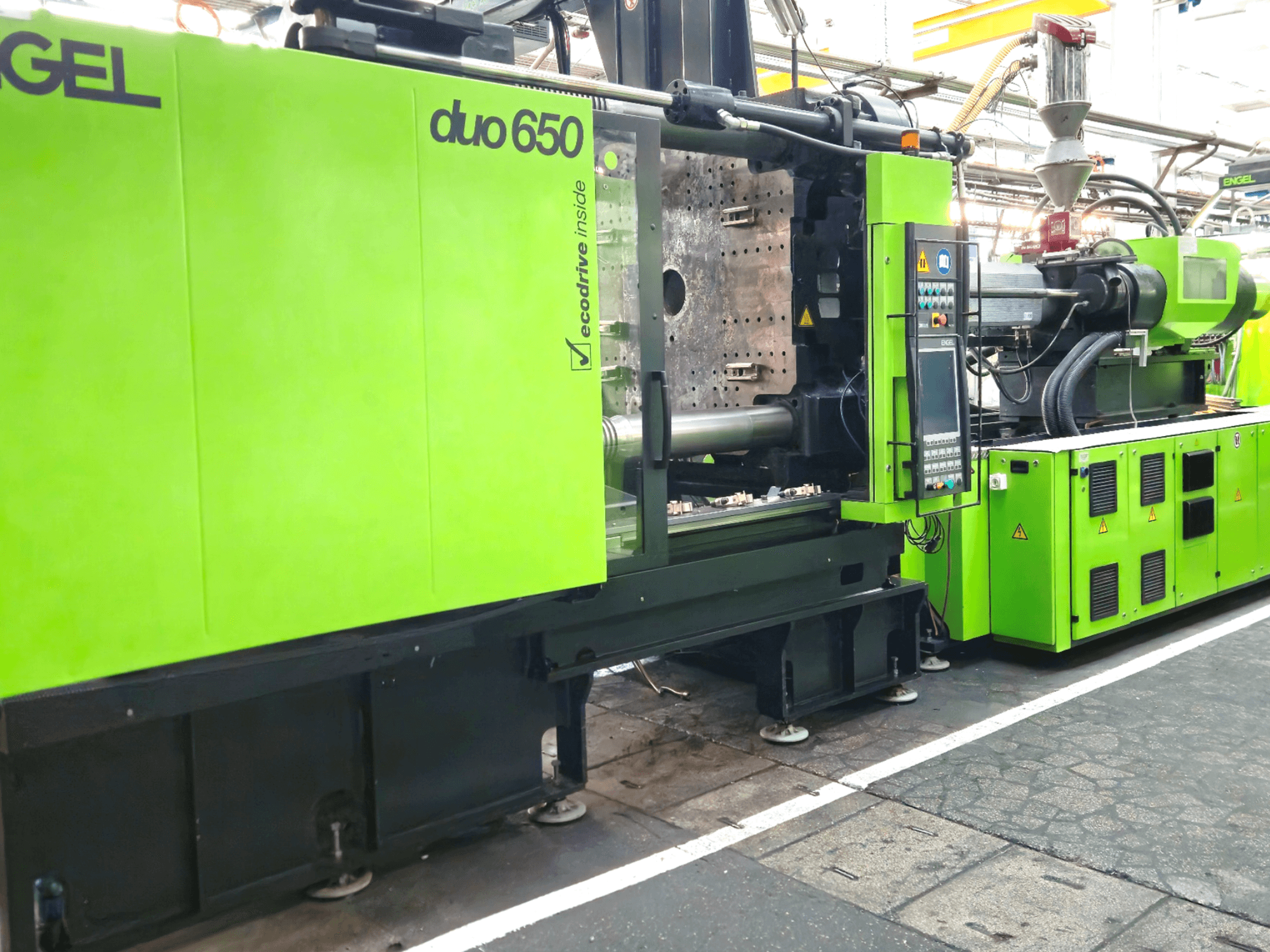

This Engel DUO 7050/650 pico was manufactured in 2013. It features a clamping force of 6500 kN, a maximum injection volume of 4160 cm³, and a screw diameter of 105 mm. The machine includes a robot interface (Euromap 67) and is still in production with excellent condition. If you are looking to get high-quality injection molding capabilities, consider the Engel DUO 7050/650 pico machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Engel
- year: 2013
- MODEL: DUO 7050/650 pico
- production hours: 60244
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel DUO 7050/650 pico
Dimensions
- Machine Height: 2355 mm
- Machine Length: 7800 mm
- Machine Weight: 14000 kg
Technical Specification
- Clamping Force: 6500 kN
- Screw Diameter: 105 mm
Additional Information
Maximum injection volume: 4160 cm³
Minimum mold height: 450 mm
Maximum mold height: 950 mm
Platen opening stroke: 1400 mm
Platen dimensions (W × L): 1510 × 1440 mm
Tie-bar distance: 1100 × 960 mm
Motor power: 161 kW
Heater power: 73.9 kW
Number of electrical connection pins: 32
Injection nozzle radius (at tip): R35
Centering ring diameter: 200 mm
Number of cores: 0
Number of heating zones: 0
Year of manufacture: 2013
Operating hours: approx. 60,244 h
Condition: Excellent
Status: In production
Additional equipment
Equipped with robot: Yes
Robot interface: Euromap 67
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
