Engel - Victory VC1800/300 PAT-INJ-ENG-2007-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Engel Victory VC1800/300 P For Sale | gindumac.com

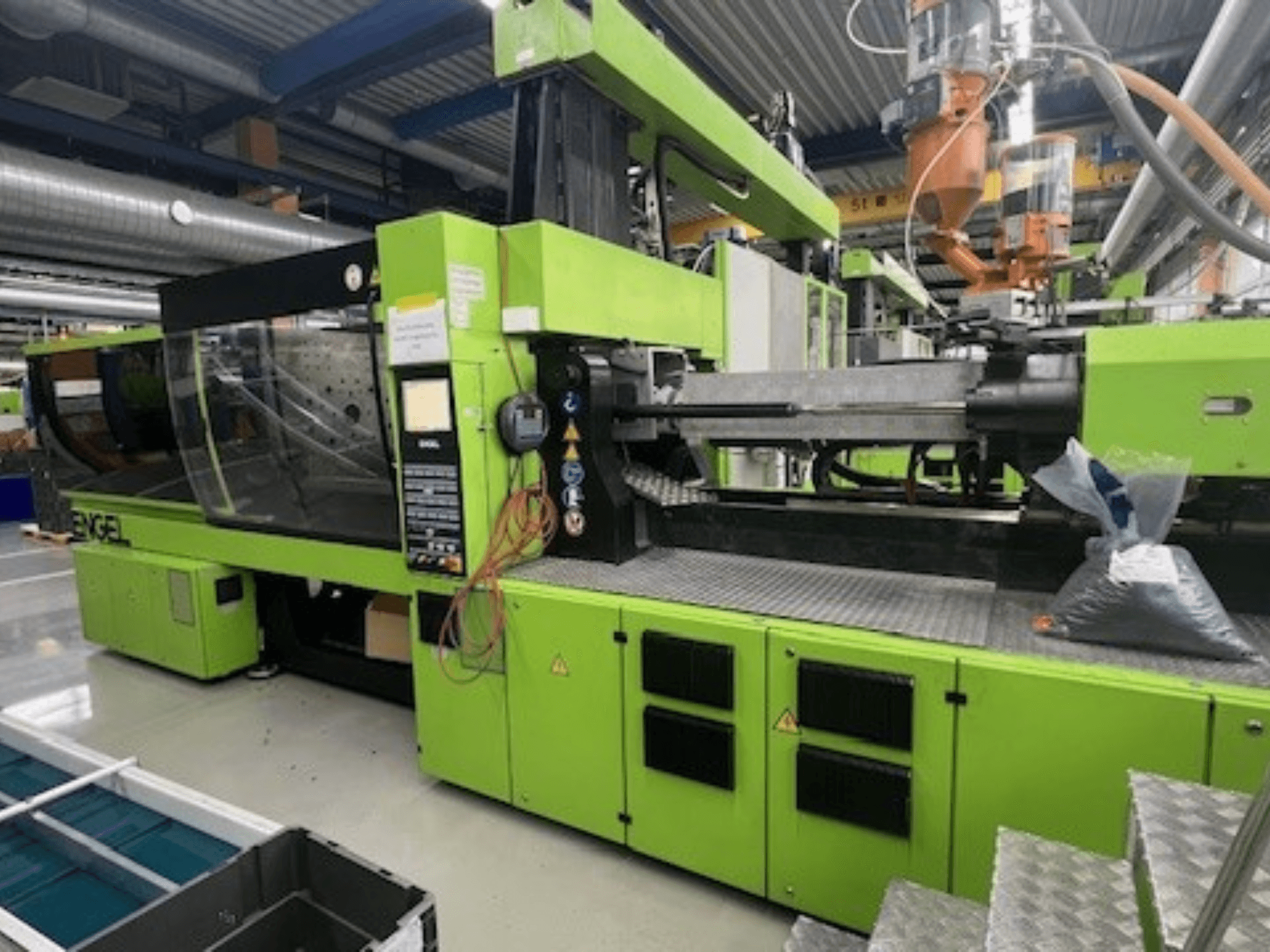

Hydraulic injection moulding machine manufactured in 2007. This Engel Victory VC1800/300 P features a clamping force of 3,000 kN and an opening stroke of 900 mm. It includes a robust control system with a 15" TFT touchscreen and a maximum injection pressure of 1,735 bar. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory VC1800/300 P machine we have for sale. Contact us for further details. Identical Engel Victory VC 1800/300P (2008 model) also for sale — same configurations.
Overview
- brand: Engel
- year: 2007
- MODEL: Victory VC1800/300 P
- production hours: 101500
- application type: Injection Moulding
- Location: Austria
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel Victory VC1800/300 P
Dimensions
- Machine Weight: 19700 kg
Technical Specification
- Clamping Force: 3000 kN
Additional Information
Power supply: 3 x 400 V + N + PE / 50 Hz
Control system: ENGEL CC200 A02 (15" TFT touchscreen)
Opening stroke: 900 mm
Maximum platen distance: 1,500 mm
Minimum mould installation height: 600 mm
Ejector stroke: 200 mm
Ejector force: 90 kN
Pump drive power: 37 kW
Injection unit version: M3
Available screw diameters: 60 / 70 / 80 mm
Screw diameter installed: 70 mm
Maximum swept volume (70 mm): 1,039 cm³
Maximum screw speed: 226 rpm
Injection rate (70 mm): 385 cm³/s
Specific injection pressure (70 mm): 1,442 bar
Maximum injection pressure (increased): 1,735 bar
Nozzle stroke: 500 mm
Nozzle contact force: 110 kN
Hours: 101,500 h
Maintenance/Service history:
Complete hydraulic hose replacement in 2025
Motor and planetary gearbox replacement in 2021
High-pressure cylinder replacement in 2020
Several cost-intensive main components renewed in recent years
Additional equipment
Robot: ENGEL ERC 64 (included)
Axes travel: X 1,200 mm, Y 1,300 mm, Z 3,600 mm
B-axis rotation: -90° to +270°
Vacuum circuits: 4
Pneumatic circuits: 8
Reject/quality conveyor belt
Box transfer for 600 x 400 x 250 mm boxes
GWK temperature control tower (optional)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
