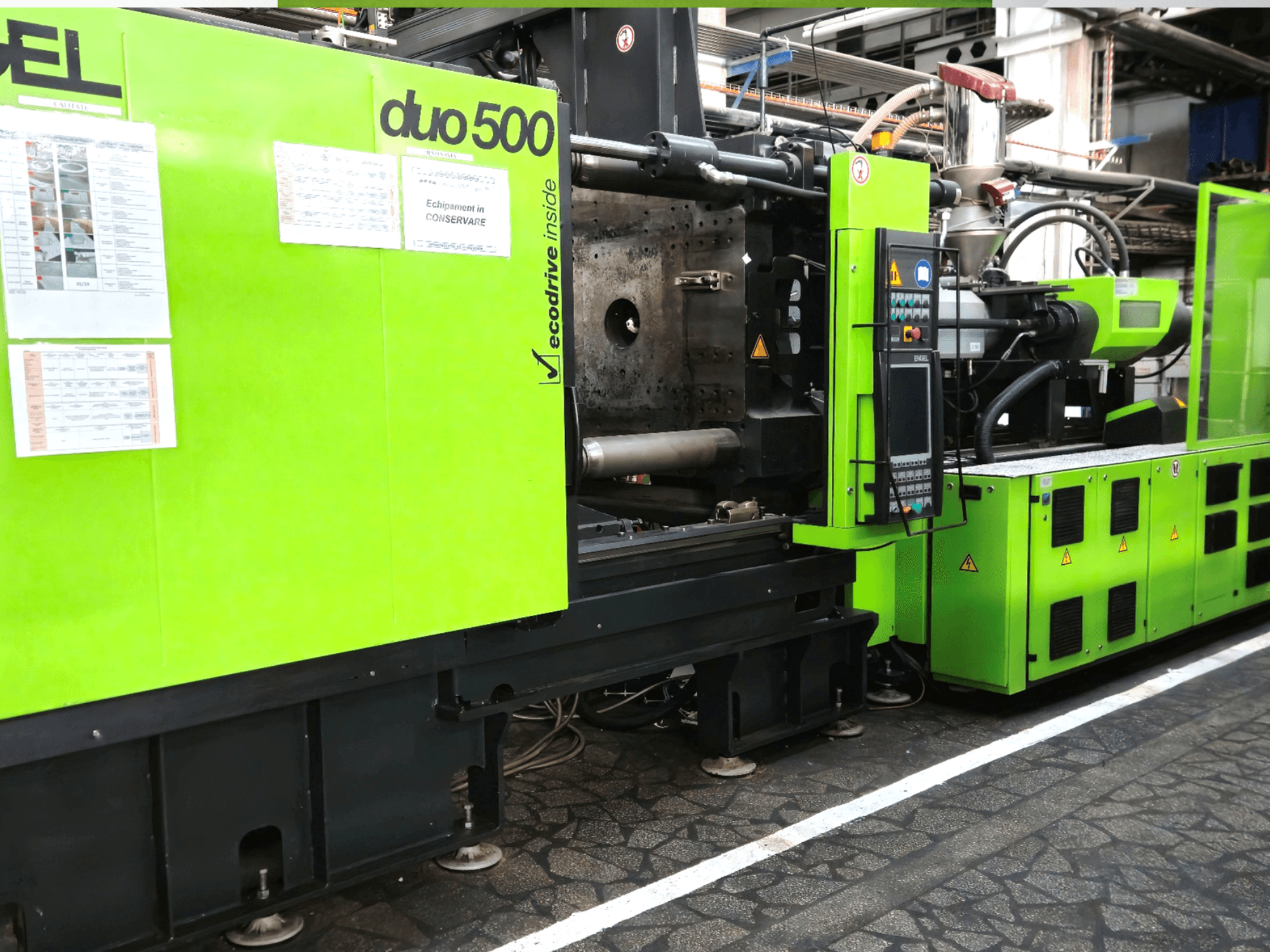

This Engel DUO 4550/500 pico was manufactured in 2013. It features a clamping force of 5,000 kN, a screw diameter of 90 mm, and a maximum injection volume of 2,480 cm³. The machine dimensions are 7,800 x 2,405 x 2,355 mm, and it weighs 14,000 kg. Currently in production with approximately 65,000 operating hours, it remains in excellent condition. Contact us for more information about this machine.
Overview
- brand: Engel
- year: 2013
- MODEL: DUO 4550/500 pico
- production hours: 65000
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel DUO 4550/500 pico
Dimensions
- Machine Height: 2355 mm
- Machine Length: 7800 mm
- Machine Weight: 14000 kg
Technical Specification
- Clamping Force: 5000 kN
- Screw Diameter: 90 mm
Additional Information
Maximum injection volume: 2,480 cm³
Minimum mold height: 350 mm
Maximum mold height: 900 mm
Platen opening stroke: 1,300 mm
Platen dimensions (W x L): 1,270 x 1,260 mm
Tie-bar distance (H x V): 910 x 830 mm
Motor power: 83 kW
Heater power: 61.2 kW
Number of electrical connection pins: 32
Injection nozzle radius (tip): R35
Centering ring diameter: 200 mm
Robot interface: Euromap 67
Number of cores: 0
Number of heating zones: 0
Operating hours: approx. 65,000 h
Condition: Excellent
Status: In production
Additional equipment
Robot (equipped)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
