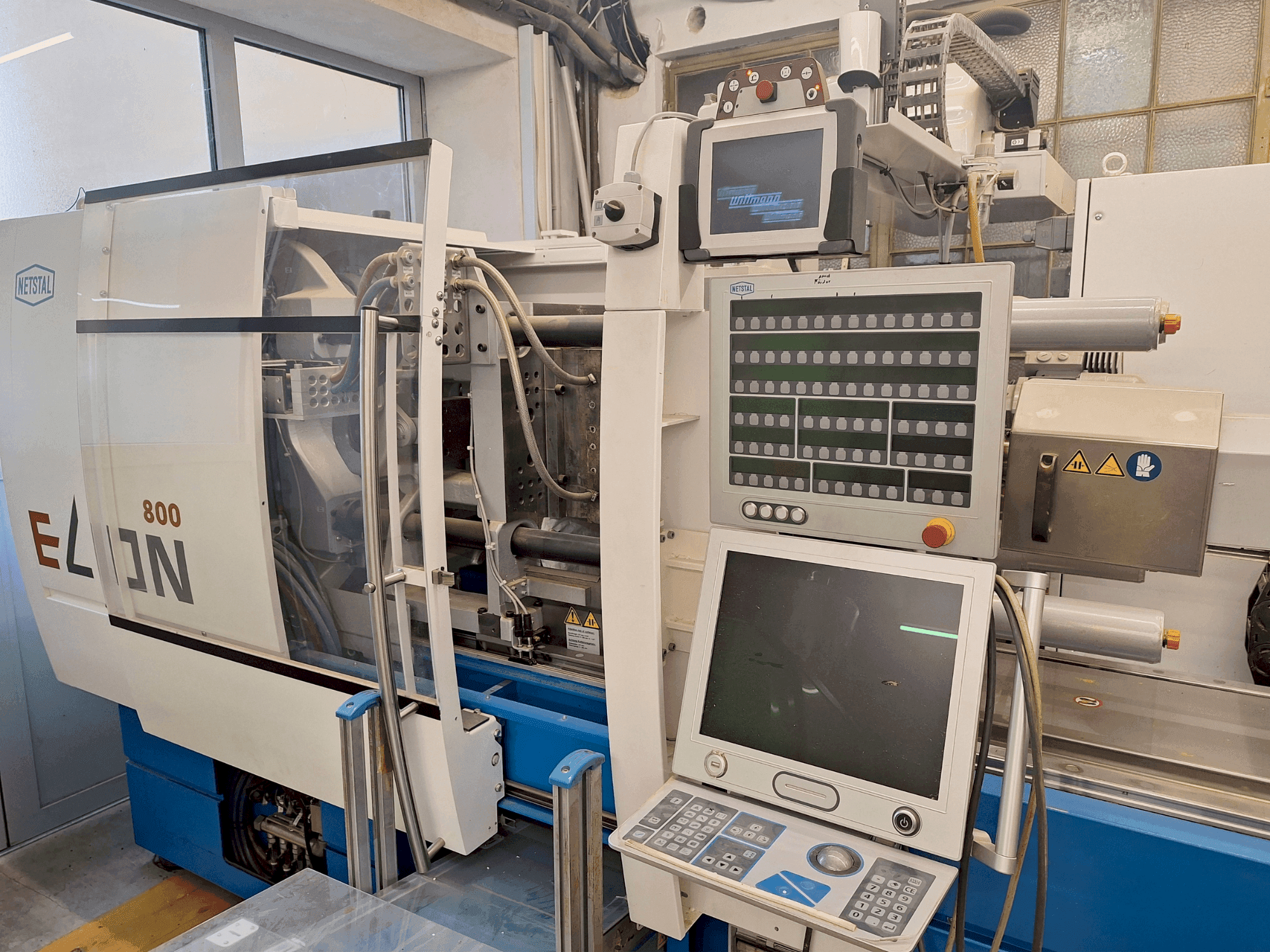

This Netstal Elion 800-270 was manufactured in 2021. It features a robust AXOS control system and a high-speed injection unit capable of 450 mm/s. The machine includes a screw diameter of 40 mm and a fully integrated 9 kW hydraulic unit. It supports a tool installation height range of 200–500 mm and is equipped with a Euromap 67 robot interface. If you are looking to get high-quality injection molding capabilities, consider the Netstal Elion 800-270 machine we have for sale. Contact us for more information.
Overview
- brand: Netstal
- year: 2021
- MODEL: Elion 800-270
- production hours: 5797
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Netstal Elion 800-270
Dimensions
- Machine Height: 1711 mm
- Machine Length: 4545 mm
- Machine Weight: 8200 kg
- Machine Width: 2042 mm
Technical Specification
- Clamping Force: 800 kN
- Screw Diameter: 40 mm
Additional Information
Additional information
inclusive Wittmann Primus 16T robot
Travel ranges: Z: 1250 mm, Y: 800 mm, X: 590 mm
5 kg payload
Control system: Wittmann CNC8, Primus R8.3 software
R8 Teachbox Touch
Vacuum circuit with additional 5/2-way valve
Injection Unit: 270 Powermaster with injection speed of up to 450 mm/s
Screw Diameter: 40 mm, type B, 3-zone screw
Nozzle Type: Pneumatically controlled needle valve nozzle with additional heating zone
Minimum Installation Height: 200 mm
Maximum Installation Height: 500 mm
Clamping Force: 800 kN
Minimum Installation Height: 200 mm
Maximum Installation Height: 500 mm
Hydraulic Unit: Fully integrated hydraulic unit 9 kW with 140 bar operating pressure
Pneumatics: 1 Air valve to 890 Liter, 1 additional Air valve to 890 Liter
Safety Cover Execution: Locked doors, top
Operator Identification: User recognition via PIN
EUROMAP 67: Standard + dynamic retraction
Interfaces: Colour feeder, Freely Configurable DIO: 4x Output/2x InputTool Monitoring: Available on DFP
Voltage Fluctuation Compensation: UPS present
Extras
Socket box 1:
X2510, Cekon, 16A /400V, 3P-N-PE via HS
X2511, Cekon, 16A /400V, 3P-N-PE via HS
X2512, Cekon, 16A /400V, 3P-N-PE via HS
X2513, Cekon, 16A /400V, 3P-N-PE via socket contactor
(Function 0060)
Sockets for colour dispenser:
1X2507 / 1W7145, Schuko 10A / 230V, 1P-N-PE, via HS
plus 1X9507 / 1W9507, Schuko 10A / 230V, 1P-N-PE, via HS
Mount sockets and base housings on bracket 110.180.6902
(Function 0060)
1X3123, Zone 12 HAN 4A screw-in, power only
1X9123, Zone 12 HAN 4A screw-in, sensor only
(Function 0110)
Pneumatics 1, 1x3/2WV 890L, mounted on DAP, W2008
(Function 0470)
Pneumatics 9, 1x3/2WV 890L, mounted on BAP, W2016
(Function 0470)
Cooling water 1:
X4051 W9088 Flow measurement B1135 - B1138 (return),
Pressure measurement B1211 (flow)
X4060 W9260 HAN16E Temperature measurement
B0801 (flow), B0832 (return)
(Function 0490)
Cooling water 2:
X4050 W9086 Flow measurement B1147 - B1150 (return),
Pressure measurement B1212 (flow)
X4059 W9259 HAN16E Temperature measurement
B08813 (Flow), B0814 (Return)
(Function 0490)
Dosing 1C:
1x suction conveyor and 1x paint dosing
1X2018/1W7146, HAN 4A for paint dosing
1X9191/1W9946, HAN 3A for suction conveyor
mount sockets and base housings on holder 110.180.6902
(Function 0550)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
