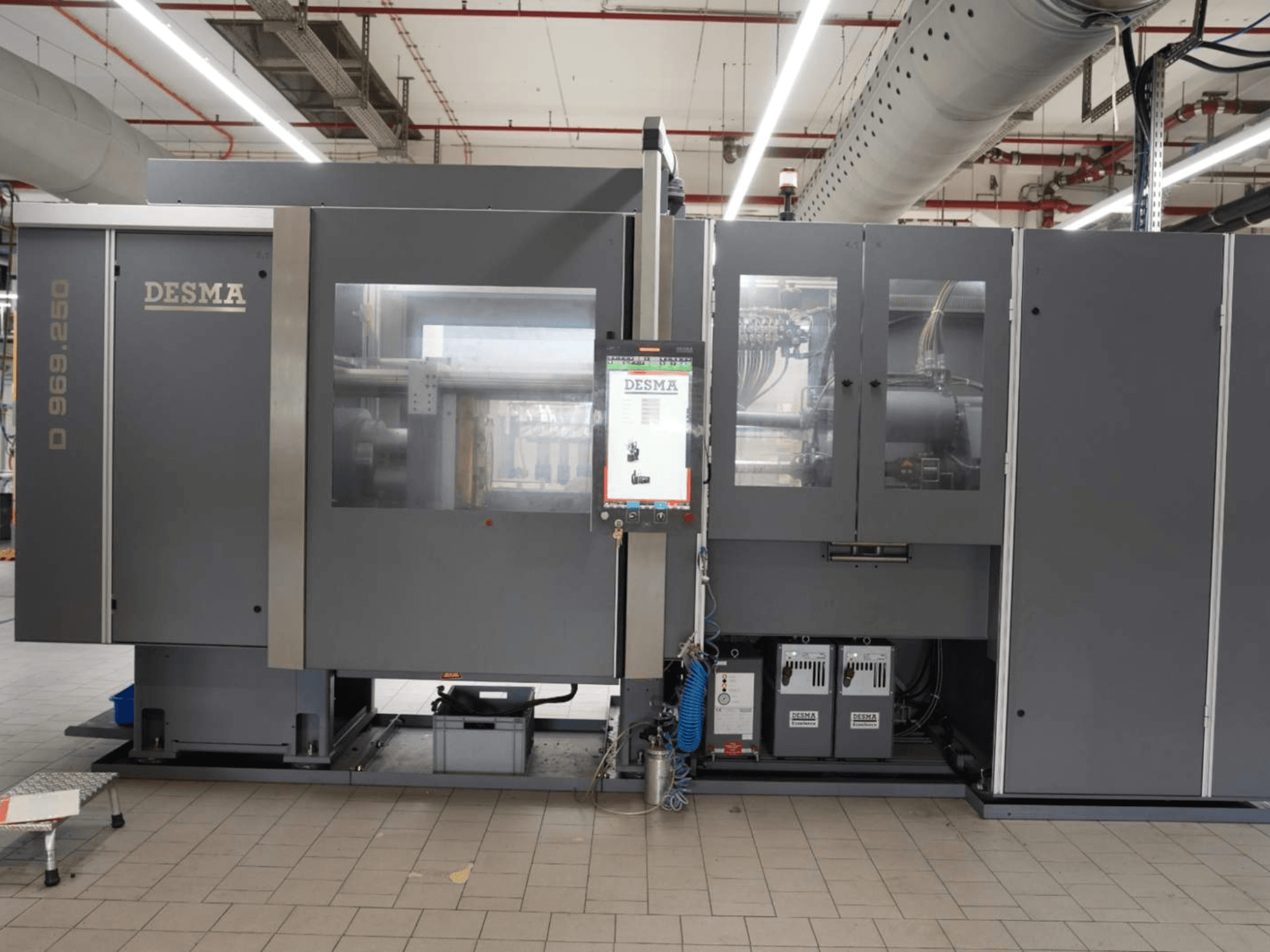

Kloeckner Desma - D 969.250 Z (S3)DE-INJ-KLO-2021-00001

- Clamping Force: 2700 kN (300 US tons)

- Injection Volume: 500 cm³

- Injection Unit Type: B500HP (High Pressure)

- Injection Pressure: 3500 bar

- Nozzle Contact Force: 58 kN

- Control System: 2030 TBM (Touch operation / process monitoring)

- Operating System Status: Active 3,360 hours

- Operating Hours (Hydraulic Motor): approx. 730 hours

- Operating Hours (Hydraulic Pump - Clamping Force): 65 hours

- Total Current: 138 A

- Recommended Backup Fuse: 160 A

- Supply Cable Cross-Section: 70 mm² Cu

- Voltage: 3~400 V +N +PE

- Frequency: 50 Hz

- Max. Short-Circuit Current: 10 kA

- Total Machine Weight: approx. 10.7 t (10,700 kg) (Clamping Unit + Hydraulic Unit: 9,700 kg; Injection Unit: 1,000 kg)

- Footprint: 10 m²

- Total Floor Load / Ceiling Load: 1,070 kg/m²

- Foot Area / Floor Contact Area: 2,010 cm²

- Specific Ceiling Load: 5.3 kg/cm²

- Hydraulic Oil Tank Volume: 450/130 l

- Temperature Control Medium Tank Volume: 2x7 l

- Compressed Air Pressure: 6 bar

- Compressed Air Flow: 0.5 m³/h

- Cooling Water Flow: 1.6 m³/h

- Cooling Water Inlet Temperature: max. 20 °C at 2.5 bar

- Cooling Water Connection: 22-L

- Pump Power / Rated Power: 22 kW (28.6 hp)

- Pump Current Consumption: 32.0 A

- Pump Pressure: 265 bar

- Pump Flow Rate: 72/39 l/min

- Maximum Mold Width: 560 mm

- Maximum Mold Length: 780 mm

- Platen / Stroke Dimensions: 600 mm stroke, platen distance 1480 mm, clamping stroke details 710 mm

- Heating Plate Center Bore / Ring Size: Ø80 H9

- Enclosure Type (UL): 1
