HAITIAN - MA900ІІ BG-INJ-HAI-2023-00001
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used HAITIAN MA900ІІ For Sale | gindumac.com

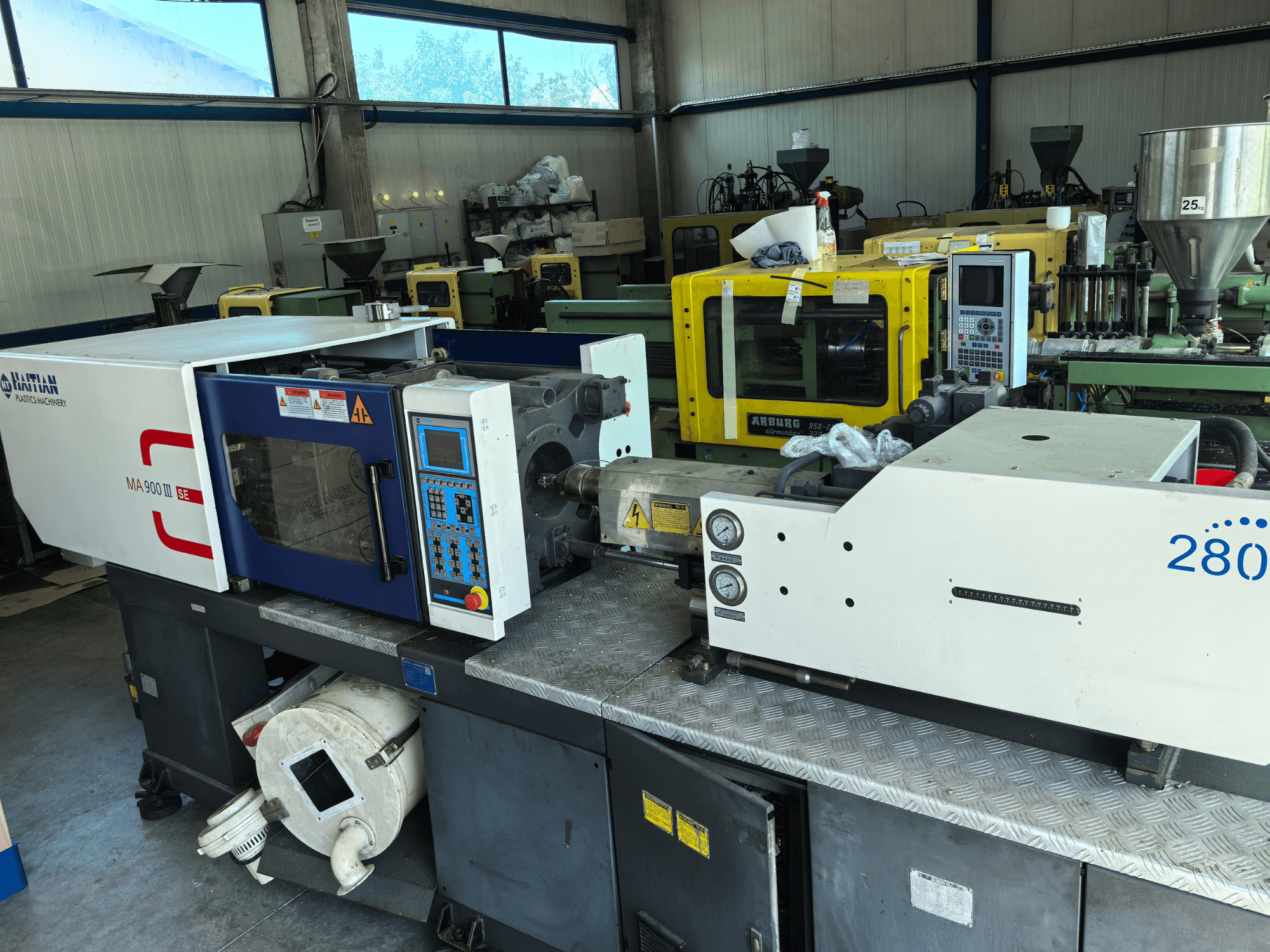

Hydraulic injection moulding machine manufactured in 2023. This HAITIAN MA900ІІ features a clamping force of 900 kN and a mold opening stroke of 320 mm. It has a screw diameter of 36 mm and a theoretical shot volume of 153 cm³. If you are looking to get high-quality injection moulding capabilities, consider the HAITIAN MA900ІІ machine we have for sale. Contact us for further details.
Overview
- brand: HAITIAN
- year: 2023
- MODEL: MA900ІІ
- application type: Injection Moulding
- Location: Bulgaria
- machine type: Hydraulic Injection Moulding Machine
Technical Information - HAITIAN MA900ІІ
Dimensions
- Machine Height: 1650 mm
- Machine Length: 4400 mm
- Machine Weight: 3500 kg
- Machine Width: 1130 mm
Technical Specification
- Clamping Force: 900 kN
- Screw Diameter: 36 mm
Additional Information
Injection Unit
Screw L/D ratio: 20:1
Theoretical shot volume: 153 cm³
Injection weight (PS): 139 g
Injection rate (PS): 108 g/s
Injection pressure: 196 MPa
Plasticizing rate (PS): 12.6 g/s
Screw speed: 0–290 rpm
Clamping Unit
Mold opening stroke: 320 mm
Distance between tie bars (H × V): 360 × 360 mm
Maximum mold height: 380 mm
Minimum mold height: 150 mm
Ejector stroke: 100 mm
Ejector force: 33 kN
General Data
Maximum pump pressure: 16 MPa
Pump motor power: 13 kW
Heater power: 6.3 kW
Hopper capacity: 25 kg
Oil tank capacity: 190 l
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
