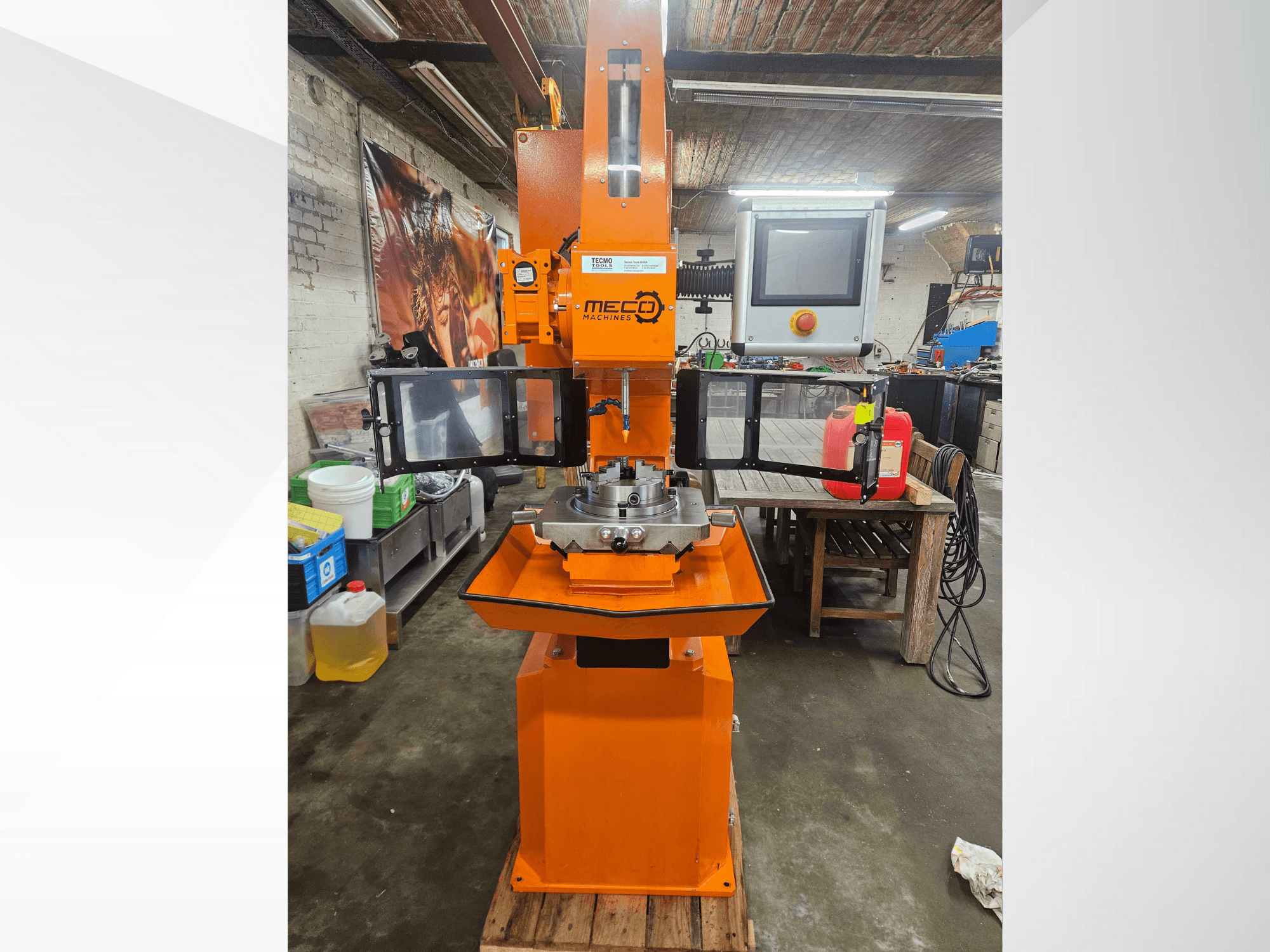

This 3-axis MECO MEC-55 CNC keyseating machine was manufactured in 2020, featuring a robust design with a maximum sample diameter of 400 mm and a total working area of 220 mm. It includes automatic Z and Y axes with speeds up to 9 m/min and 1.8 m/min respectively, and a manual W axis with a 360º rotation capability. If you are looking to get high-quality milling capabilities consider the MECO MEC-55 CNC machine we have for sale. Contact us for more information.
Overview
- brand: MECO
- year: 2020
- MODEL: MEC-55 CNC
- production hours: 30
- application type: Milling
- Location: Belgium
- machine type: Vertical Machining Centre
Technical Information - MECO MEC-55 CNC
Dimensions
- Machine Depth: 1100 mm
- Machine Height: 1860 mm
- Machine Weight: 640 kg
Movement
- Number of Axes: 3
- Y-axis Travel: 56 mm
- Z-axis Travel: 222 mm
Additional Information
Maximum width with doors open: 1265 mm
Capacity
Maximum diameter of the sample: 400 mm
Machine weight: 640 kg
Z Axis (automatic)
Maximum speed: 9 m/min
Motor power: 0,75 kW
Maximum working force: 7 kN
Reduction ratio: 40:1
Y Axis (automatic)
Maximum speed: 1,8 m/min
Motor power: 400 W
Maximum working force: 45 kN
Reduction ratio: 10:1
W Axis (manual)
Total rotation: 360°
Rotary plate diameter: Ø 240 mm
Calibrated vernier and brake to lock the plate at the desired degree
Preset divisions for 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16 slots
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
