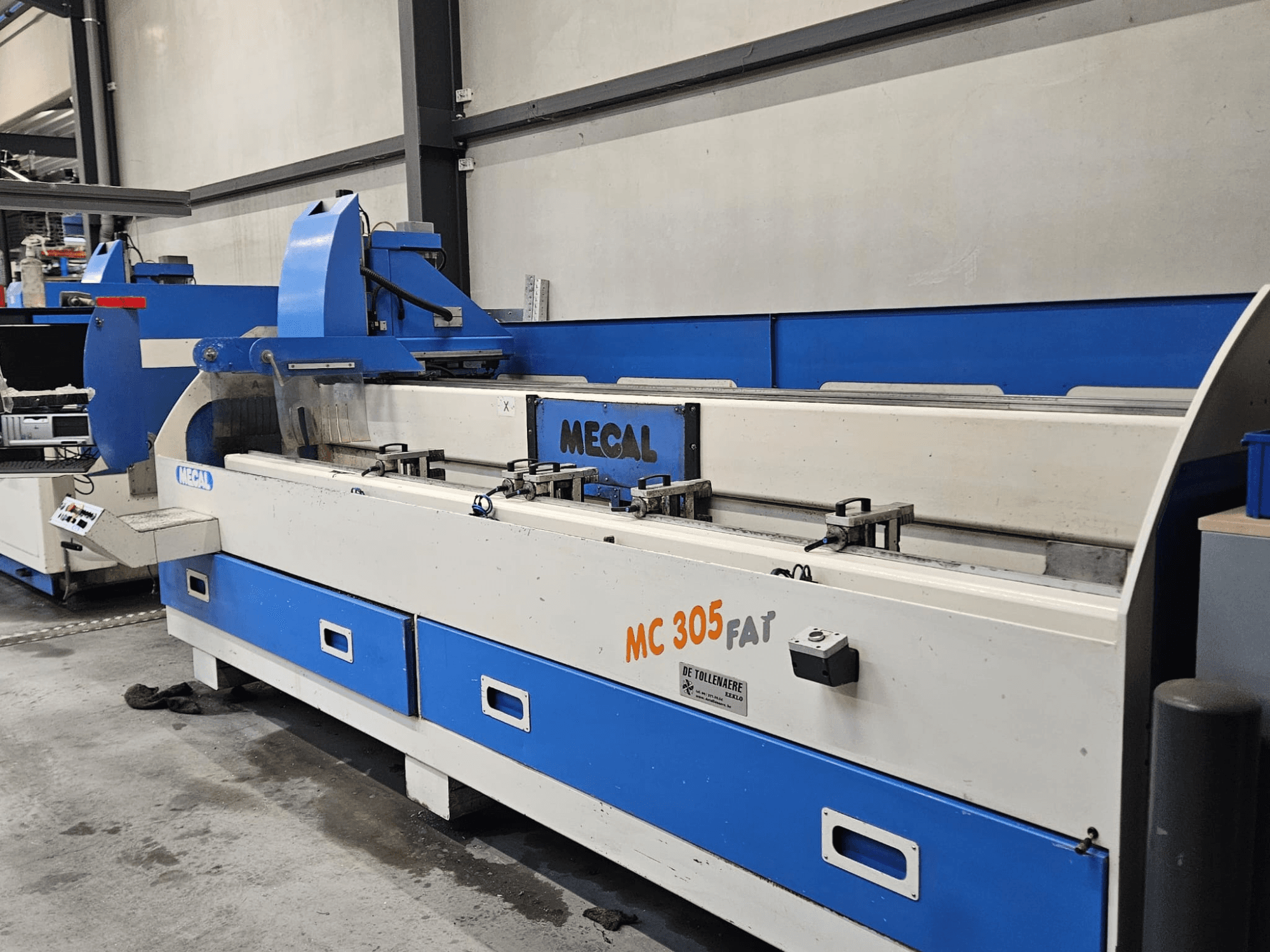

MECAL MC 305 FAT machine in a factory setting, front view showcasing controls and blue and white design.
MECAL MC 305 FAT machine in a factory setting, front view showcasing controls and blue and white design.

MECAL - MC 305BE-MIL-MEC-2004-00001

Rs. 1,529,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis MECAL MC 305 vertical machining centre was manufactured in 2004. It features a powerful 5.5 kW electric spindle, air-cooled, with a maximum speed of 18,000 RPM and an ISO30 tool holder. The tool magazine is centrally located, protected, and supports various tools. It has a standard workpiece length up to 4000 mm and an extended range up to 8000 mm. Contact us for more information about this machine.

Overview

  • brand: MECAL
  • year: 2004
  • MODEL: MC 305
  • application type: Milling
  • Location: Belgium
  • machine type: Vertical Machining Centre

Technical Information - MECAL MC 305

Main drive

  • Spindle speed range: 18000 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 3425 mm
  • Y-AXIS Movement: 400 mm
  • Z-AXIS Movement: 400 mm

Tools

  • Type of tool holder: ISO30

Additional Information

  • A (rotation): ±125°

  • Spindle Type: Electric, air-cooled

  • Tool magazine:

    • Located in the middle of the machine base in a protected area

    • Accommodates various tools: milling cutters, taps, end mills, angle heads

  • Construction:

    • Welded steel structure for maximum rigidity

    • Linear guides with ball screws

    • Automatic central lubrication of guides and screws

  • Cooling: Centralized minimum lubrication system (MQL)

  • Working range:

    • Standard workpiece length: up to 4000 mm

    • Extended range (differential cycle): up to 8000 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
