DMG MORI - CMX 1100 VMX-MIL-DMG-2019-00001

Name: DMG MORI CMX 1100 V
Brand: DMG MORI
SKU: MX-MIL-DMG-2019-00001
Price: 8900492 INR
Availability: InStock

Rs. 8,900,492

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CMX 1100 V For Sale | gindumac.com

Show in original language

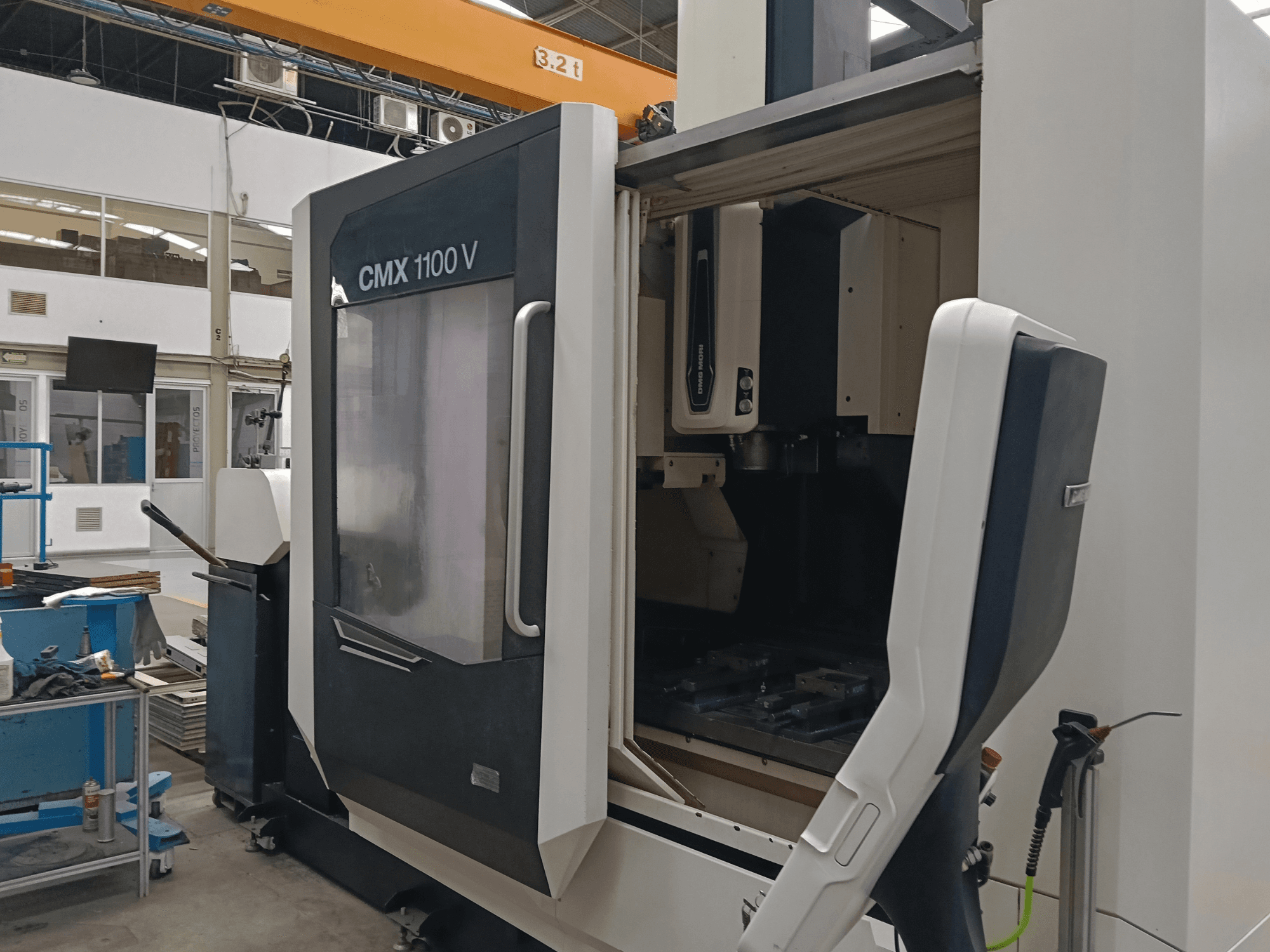

This 3-axis DMG MORI CMX 1100 V was manufactured in 2019. It features an X-axis travel of 1,100 mm, Y-axis travel of 560 mm, and Z-axis travel of 510 mm. The machine has a robust table size of 1,400 x 560 mm and a maximum table load of 1,000 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI CMX 1100 V vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DMG MORI
year: 2019
MODEL: CMX 1100 V
application type: Milling
Location: Mexico
machine type: Vertical Machining Centre

Technical Information - DMG MORI CMX 1100 V

Dimensions

Machine Weight: 5500 kg
Table Load: 1000 kg

Movement

Number of Axes: 3
X-axis Travel: 1100 mm
Y-axis Travel: 560 mm
Z-axis Travel: 510 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Power: 13 kW
Spindle Speed: 12000 RPM
Tool Stations: 30

Additional Information

Table dimensions: 1,400 x 560 mm (55.1" x 22")
Max workpiece dimensions: 1,400 x 560 x 630 mm
Max spindle speed: 12,000 rpm (standard) / up to 20,000 rpm (optional)
Spindle power (40/100% DC): 13 / 9 kW (approx. 17.3 / 12 HP)
Max torque (40% DC): 83 Nm
Spindle taper: CAT 40
Max tool diameter: 80 mm (with adjacent positions occupied)
Tool change time (tool to tool): 2.4 s
Rapids (X / Y / Z): 30 m/min
Positioning accuracy: 6 µm (with direct measuring systems)
User interface: SLIMline 15" or 19" panel
Required floor space: 4,038 x 2,757 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
