DMG MORI - DMC 635 V ecolineCH-MIL-DMG-2014-00001

Rs. 5,075,719
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

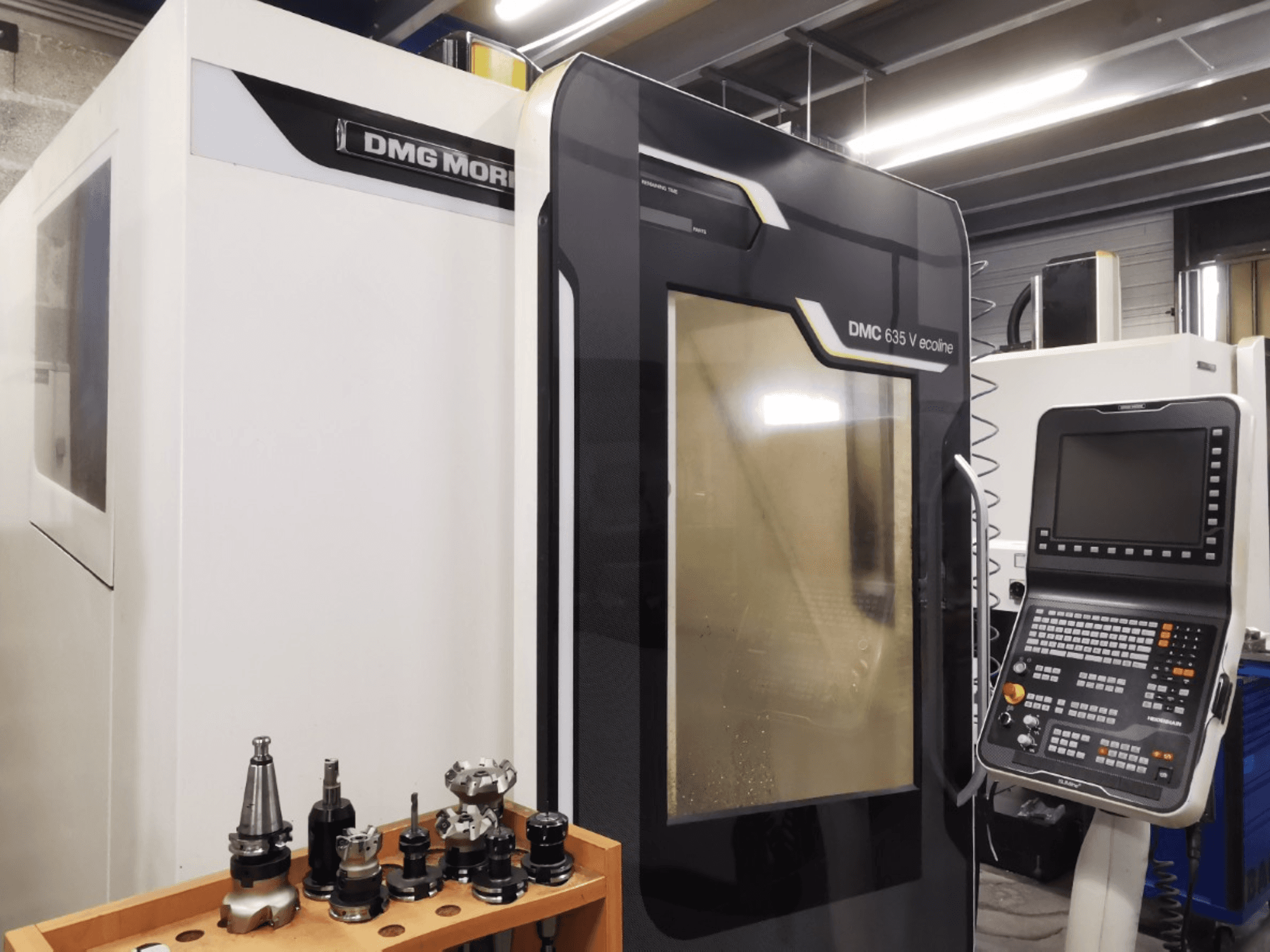

This 3-axis DMG MORI DMC 635 V ecoline was manufactured in 2014. It features an X-axis travel of 635 mm, Y-axis travel of 510 mm, and Z-axis travel of 460 mm. The machine includes a robust table size of 790 x 560 mm and a maximum table load of 600 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMC 635 V ecoline vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DMG MORI
  • year: 2014
  • MODEL: DMC 635 V ecoline
  • application type: Milling
  • Location: Switzerland
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMC 635 V ecoline

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 620

Dimensions

  • Machine Height: 2742 mm
  • Machine Length: 2441 mm
  • Machine Weight: 3900 kg
  • Machine Width: 2265 mm
  • Table Length: 560 mm
  • Table Load: 600 kg
  • Table Width: 790 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 635 mm
  • Y-axis Travel: 510 mm
  • Z-axis Travel: 460 mm

Technical Specification

  • Max. Tool Weight: 6 kg
  • Spindle Power: 13 kW
  • Spindle Speed: 12000 RPM
  • Taper Size: SK 40
  • Tool Stations: 30

Additional Information

- Control: HEIDENHAIN TNC 620 (MC 7420D / TE 7150 keyboard / SLIMline panel)

- Number of Axes: 3 (X, Y, Z)

- X-Axis Travel: 635 mm

- Y-Axis Travel: 510 mm

- Z-Axis Travel: 460 mm

- Table Clamping Surface: 790 x 560 mm

- Max. Table Load (Center): 600 kg

- Table T-Slots: 4 / 14H12, distance 100 mm (1 reference slot 14H7)

- Table Height from Floor: 720 mm

- Spindle Speed Range: 20 - 12,000 rpm (1/min)

- Spindle Drive Power (40% ED / 100% ED): 13 kW / 9 kW

- Spindle Torque (40% ED / 100% ED): 83 Nm / 57 Nm

- Tool Taper / Interface: SK40 (DIN 69871 / ISO 7388/2 Type A or DIN 69872 Form A/B)

- Tool Clamping Force: 8 kN

- Tool Magazine Capacity: 30 stations

- Max. Tool Diameter (Adjacent Empty / Full): 130 mm / 80 mm

- Max. Tool Length: 300 mm

- Max. Tool Weight: 6 kg (Max. total magazine tool load: 90 kg)

- Rapid Traverse (X / Y / Z): 30 m/min

- Feed Rate (X / Y / Z): Continuously programmable up to 20,000 mm/min

- Positioning Resolution / Uncertainty: 1 µm / 16 µm (VDI/DGQ 3441)

- Coolant Tank Capacity: ~120 l

- Machine Weight: ~3,900 kg (3,950 kg with 30-tool magazine)

- Apparent Power: 17 kVA

- Nominal Line Current (In max): 28 A

- Main Fuse: 35 A (Short-circuit breaking capacity: 0.35 kA)

- Power Supply: 400 V AC (3/N/PE), 50/60 Hz

- Control Voltage: 24 V DC / 230 V AC

- Pneumatic Supply Pressure: 5.5 - 8.0 bar (Air consumption: 30 m³/h without blow-off; +20 m³/h continuous)

- Machine Dimensions (W x D x H): 1,880 mm (2,265 mm with coolant tank) x 2,441 mm x 2,742 mm (Transport height min: 2,330 mm)

- Required Floor Space: 4,500 x 4,400 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
