DMG MORI - ecoMill 1035VSK-MIL-DMG-2015-00001

Rs. 6,284,370
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

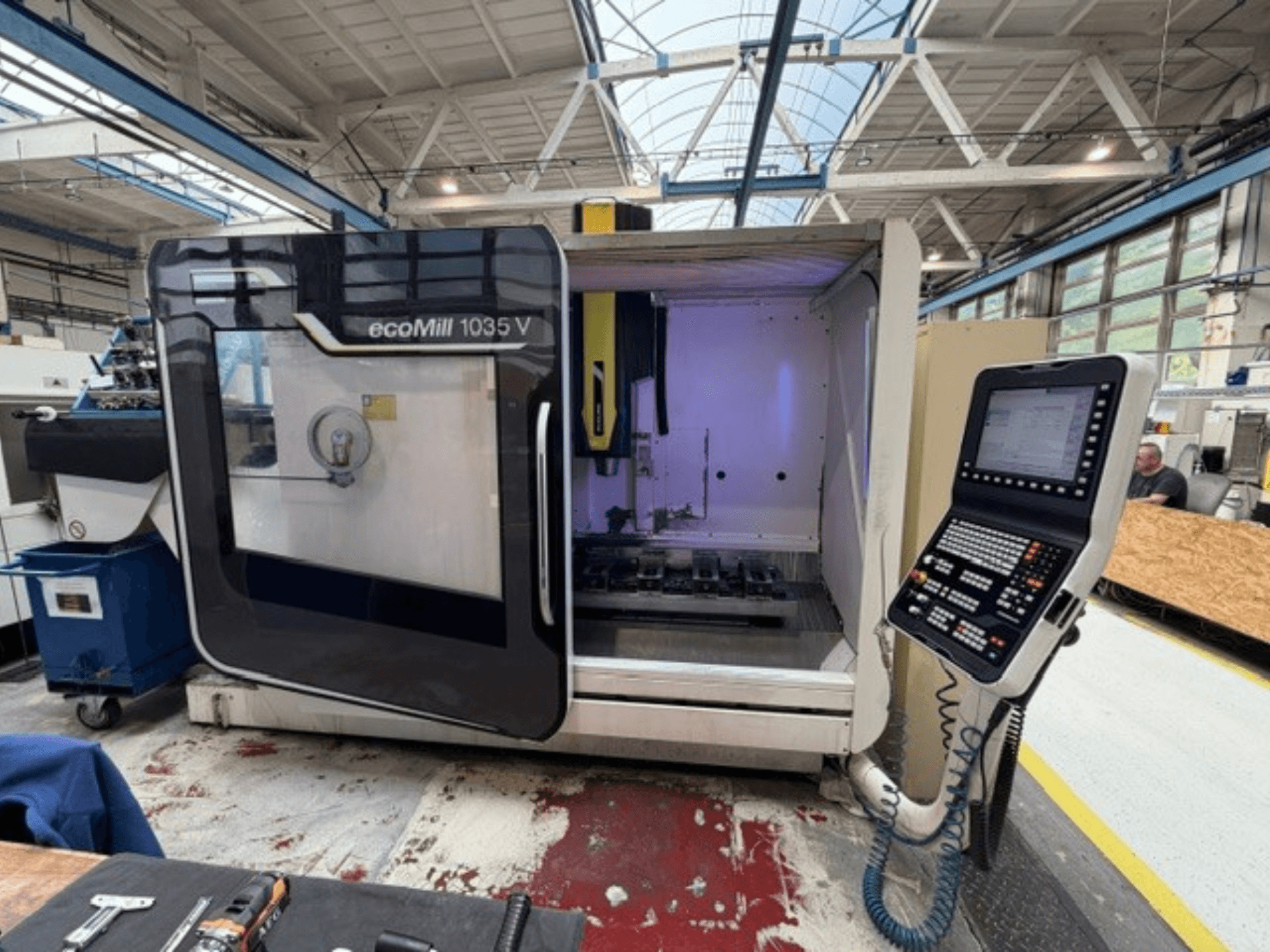

This 3-axis DMG MORI ecoMill 1035V was manufactured in 2015. It features impressive travels of 1035 mm in X, 560 mm in Y, and 510 mm in Z. The machine has a maximum spindle speed of 12,000 rpm and a robust table size of 1200 x 560 mm, with a maximum table load of 1000 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI ecoMill 1035V vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DMG MORI
  • year: 2015
  • MODEL: ecoMill 1035V
  • application type: Milling
  • Location: Slovakia
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DMG MORI ecoMill 1035V

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: 620

Dimensions

  • Machine Height: 2670 mm
  • Machine Length: 3370 mm
  • Machine Weight: 4650 kg
  • Machine Width: 3110 mm
  • Table Length: 1200 mm
  • Table Load: 1000 kg
  • Table Width: 560 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1035 mm
  • Y-axis Travel: 560 mm
  • Z-axis Travel: 510 mm

Technical Specification

  • Spindle Power: 17 kW
  • Spindle Speed: 12000 RPM
  • Taper Size: SK 40
  • Tool Stations: 30

Additional Information

  • Operating hours: 42,000 h (power on) / 17,600 h (spindle cutting)

  • Table size (L x W): 1200 x 560 mm

  • Machine working footprint (approx.): 6.3 x 4.55 x 2.808 m

  • Machine weight (base machine): 4650 kg

  • Transport dimensions (L x W x H): machine 3.37 x 3.11 x 2.67 m

  • Notes: New spindle

Additional equipment

  • Chip conveyor

    • Weight: 505 kg

    • Transport dimensions: 3.90 x 0.99 x 1.73 m

  • Internal cooling unit

    • Weight: 300 kg

    • Transport dimensions: 1.835 x 1.10 x 1.326 m

  • Renishaw probe

  • OTS tool measurement

  • Vises (approx. 150 kg total)


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
