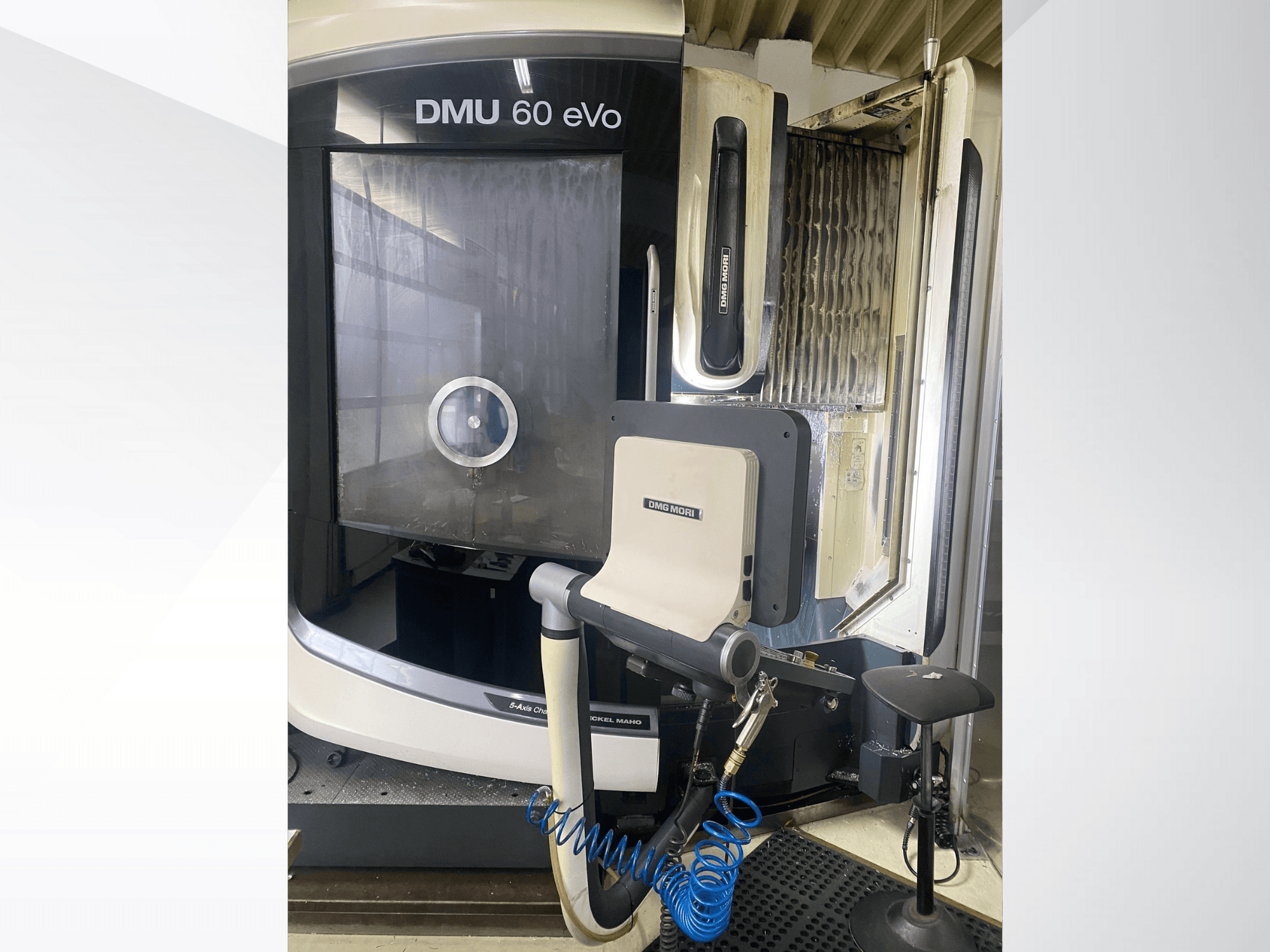

This 5-axis DMG MORI DMU 60 EVO was manufactured in 2017. It features a Heidenhain iTNC 640 control, a spindle speed of 20000 rpm, and a 120-fold tool changer. The machine includes a chip conveyor, coolant system, and an internal coolant supply of 40bar. It's well-suited for high-precision machining tasks. Consider the opportunity to buy this DMG MORI DMU 60 EVO vertical machining centre. Contact us for more information about this machine.
Overview
- brand: DMG MORI
- year: 2017
- MODEL: DMU 60 EVO
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMU 60 EVO
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 640
Dimensions
- Machine Height: 2700 mm
- Machine Length: 3000 mm
- Machine Weight: 9600 kg
Movement
- Number of Axes: 5
- X-axis Travel: 600 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 20000 RPM
- Taper Size: SK 40
Additional Information
NC swivel rotary table
Tool changer: Yes, chain magazine 120 positions (120-fold)
Coolant: internal/external; internal coolant supply 40 bar / 6001; extended chip flushing; flushing gun; blast air through spindle center
Rotating viewing window
Electronic handwheel
Screen display: German/English
Space requirement: 25 sqm
Condition: Very good, in operation
Additional equipment
Chip conveyor
Oil and emulsion mist separator
Infrared PP 60 optical measuring probe
Tool breakage control TRS2
Signal light, 4-color
Extended interface M65 for Erowa Job Management System
Preparation for EROWA handling system (Operating mode 4)
Accessories: 120x SK40 tool holders
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
