- Makino a61nx horizontal machining center

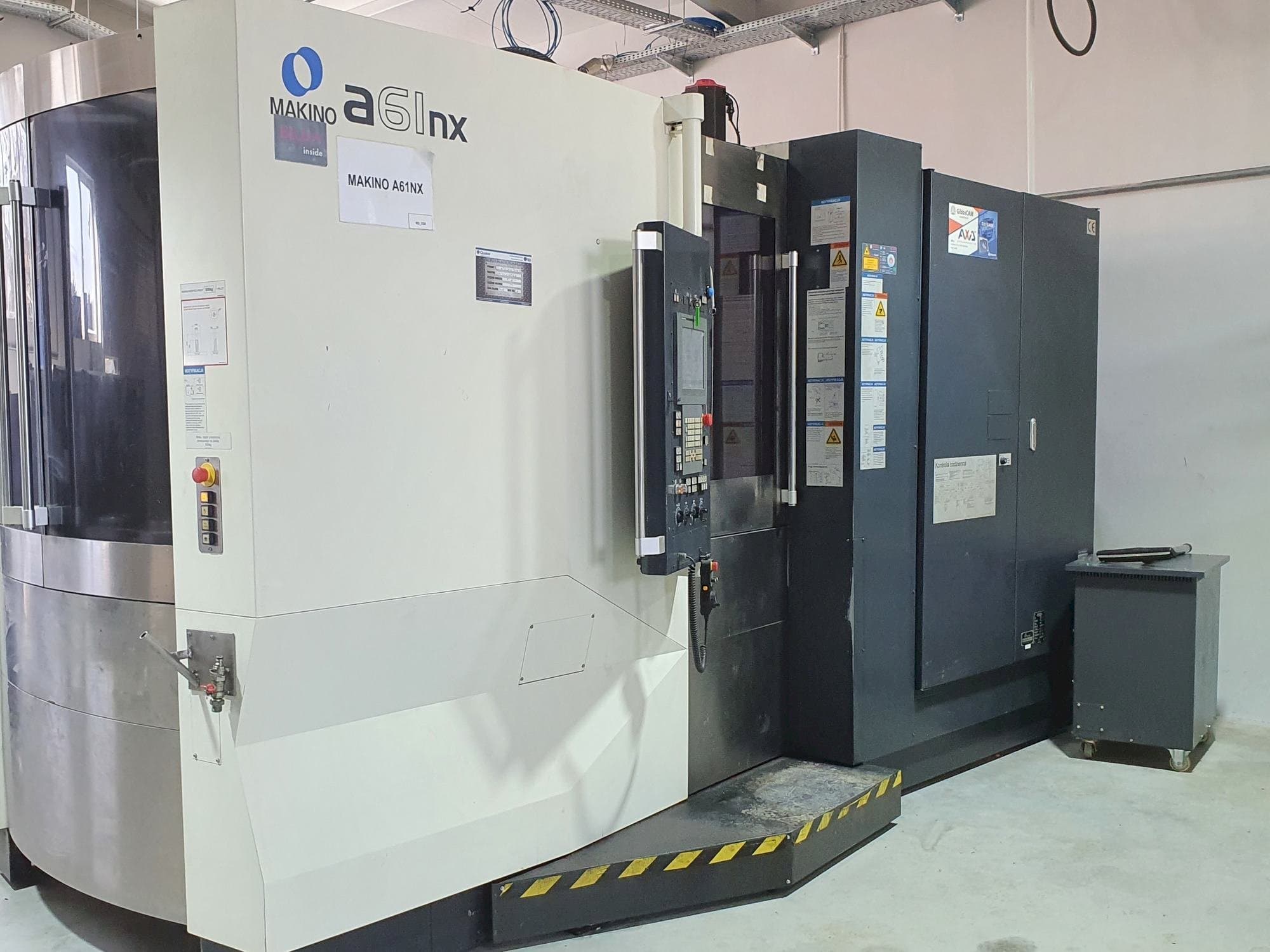

This Makino a61nx horizontal machining center was manufactured in 2014. The 4 axis machine has 9800 power on hours. It is operated through a MAKINO Professional 5 control unit. It has a spindle speed up to 15000 rpm. The machine is in very good, working condition, available for presentation and tests. It was serviced always by MAKINO service. The full service documentation and manuals are available. The first installation of the machine was in 2015. There was a spindle replaced for a new one in 10/2017.
Overview
- brand: Makino
- year: 2014
- MODEL: a61nx
- production hours: 9800
- application type: Milling
- Location: Poland
- machine type: Machining centers (horizontal)
- availability: Sold
- control unit brand: MAKINO
- GINDUMAC ID: PL-MIL-MAK-2014-00003
Technical Information
General Data
- Measurements width: 4890 mm
- Measurements depth: 3340 mm
- Measurements height: 2910 mm
- Machine weight: 12000 kg
Control Unit
- Brand: MAKINO

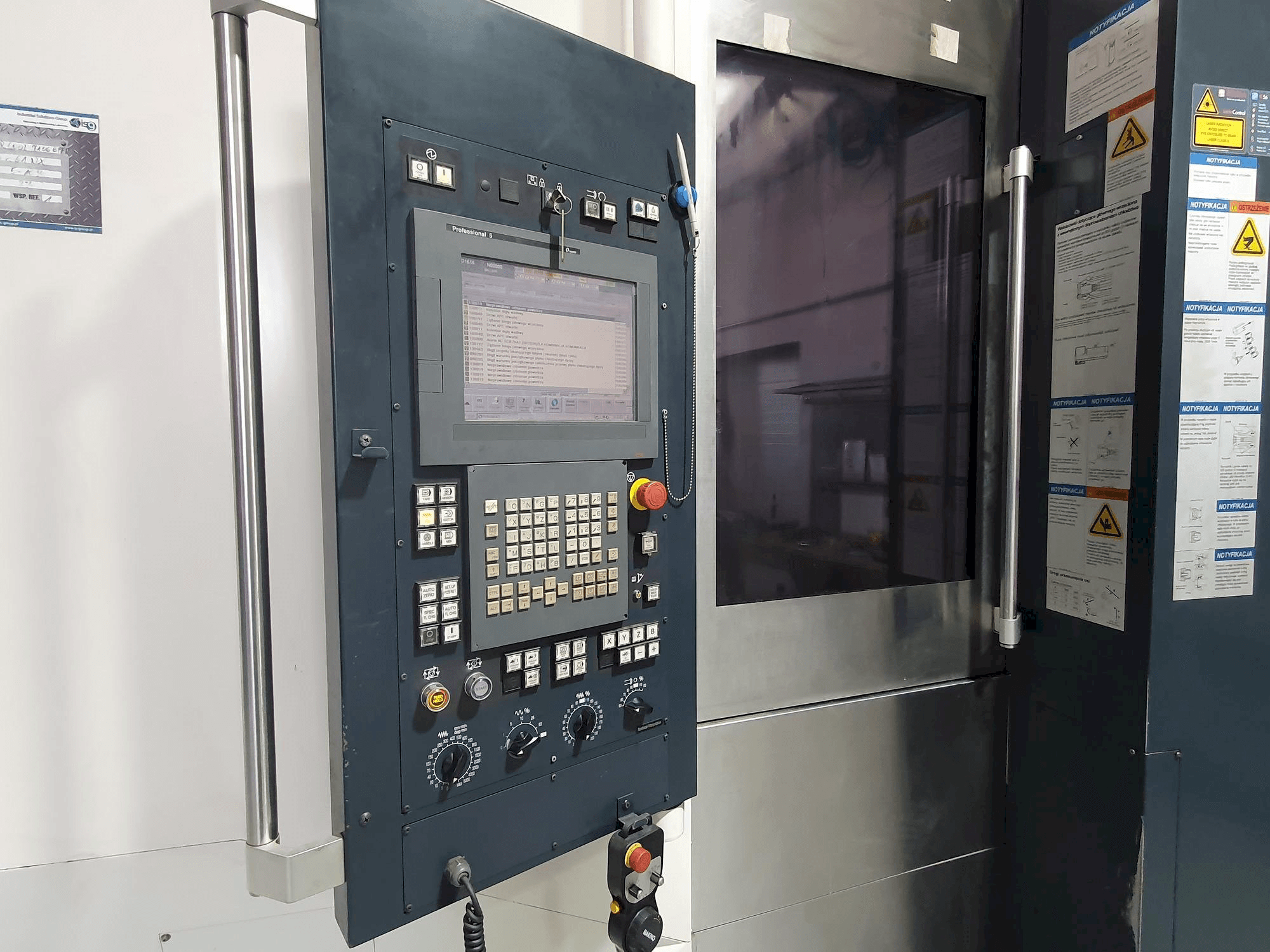

- Model: Professional 5
Main drive
- Spindle speed range: 15000 1/MIN
- Spindle motor power: 22kW
Movement
- X-AXIS Movement: 730 mm
- Y-AXIS Movement: 650 mm
- Z-AXIS Movement: 800 mm
Table
- Outer length: 500 mm
- Outer width: 500 mm
- Table load: 500 kg
Tools
- Max weight: 12 kg
- Max tool diameter: 205 mm
- Max tool length: 510 mm
Media
- Main electronic connection: 400V / 50Hz
Additional Information
- Technical Machine Benefits:
- - 2 pallet changer
- - B axis: 360 degree
- - Max work envelope: 800 x 1000 mm
- - Spindle torque: 120 n*m
- - Spindle core-cooling 30bar cts, air thru spindle, external coolant, shower coolant
- - Spindle tapper: hsk63a
- - Tool changer: 60+1 pcs
- - Tool change speed: 0. 8s
- - Lift up chip conveyor
- - Automatic grease supply unit
- Qualitative Machine Benefits:
- - Blum probes
- - Mist collector interface with collector
- - Touch bts - tool check in the tool magazine
- - Air dryer
- - Tool load monitoring
- - Data server makino
- - 2mb nc memory
- - Fanuc tilted working plane g68. 2
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
