Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
MAKA - DC 7 DPL-MIL-MAK-2012-00001
Do you have further questions? Contact us.

Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- MAKA DC 7 D Universal Machining Center

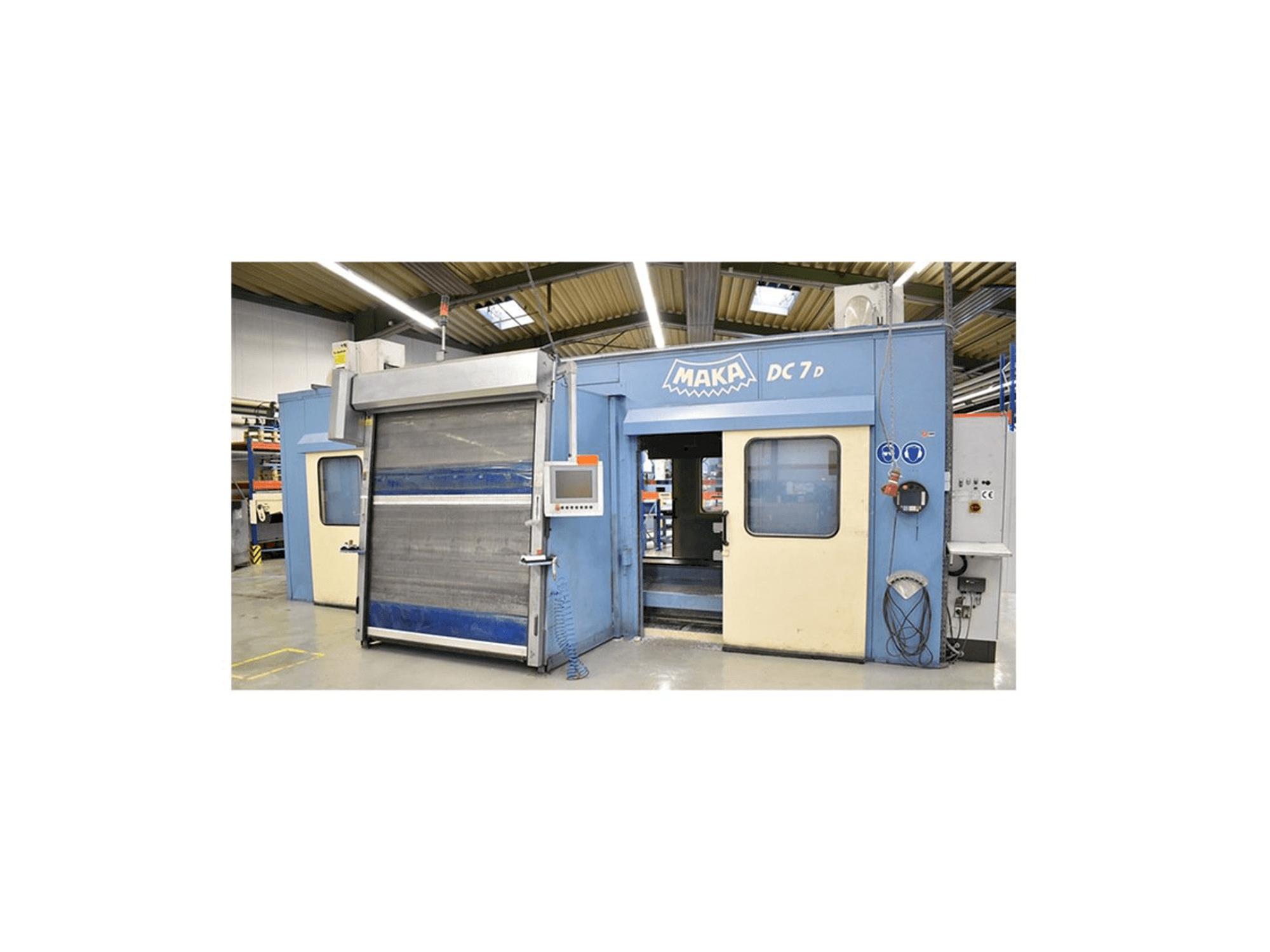

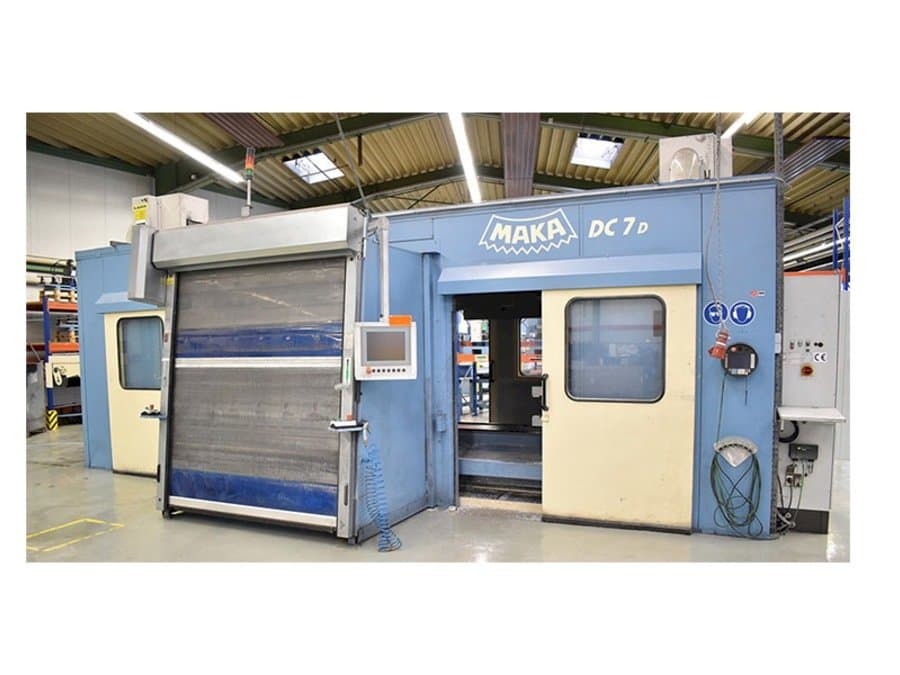

This MAKA DC 7 D Universal Machining Center was built in Germany in the year 2012. It has a production record of 29386 working hours. This 5 axis machine can works with a range of movements of 1200mm, 1000mm, 575mm, 196mm, and 540mm (X-Axis, Y-Axis, Z-Axis, A-Axis, and C-Axis respectively).
Overview
- brand: MAKA
- year: 2012
- MODEL: DC 7 D
- production hours: 29386
- application type: Milling
- Location: Poland
- machine type: Universal Machining Centre
- availability: Sold
Technical Information - MAKA DC 7 D
General Data
- Measurements width: 6000 mm
- Measurements depth: 3200 mm
- Measurements height: 3350 mm
- Machine weight: 7500 kg
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 1200 mm
- Y-AXIS Movement: 1000 mm
- Z-AXIS Movement: 575 mm
- A-AXIS Movement: 196 mm
- C-AXIS Movement: 540 mm
Table
- Outer length: 1200 mm
Media
- Main electronic connection: 400V / 50HZ
- Power consumption: 40 kW
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - This machine also has an interesting feature of a rotary table. During machining, you can mount a second part and immediately start working on it without wasting time after finishing the first one.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
