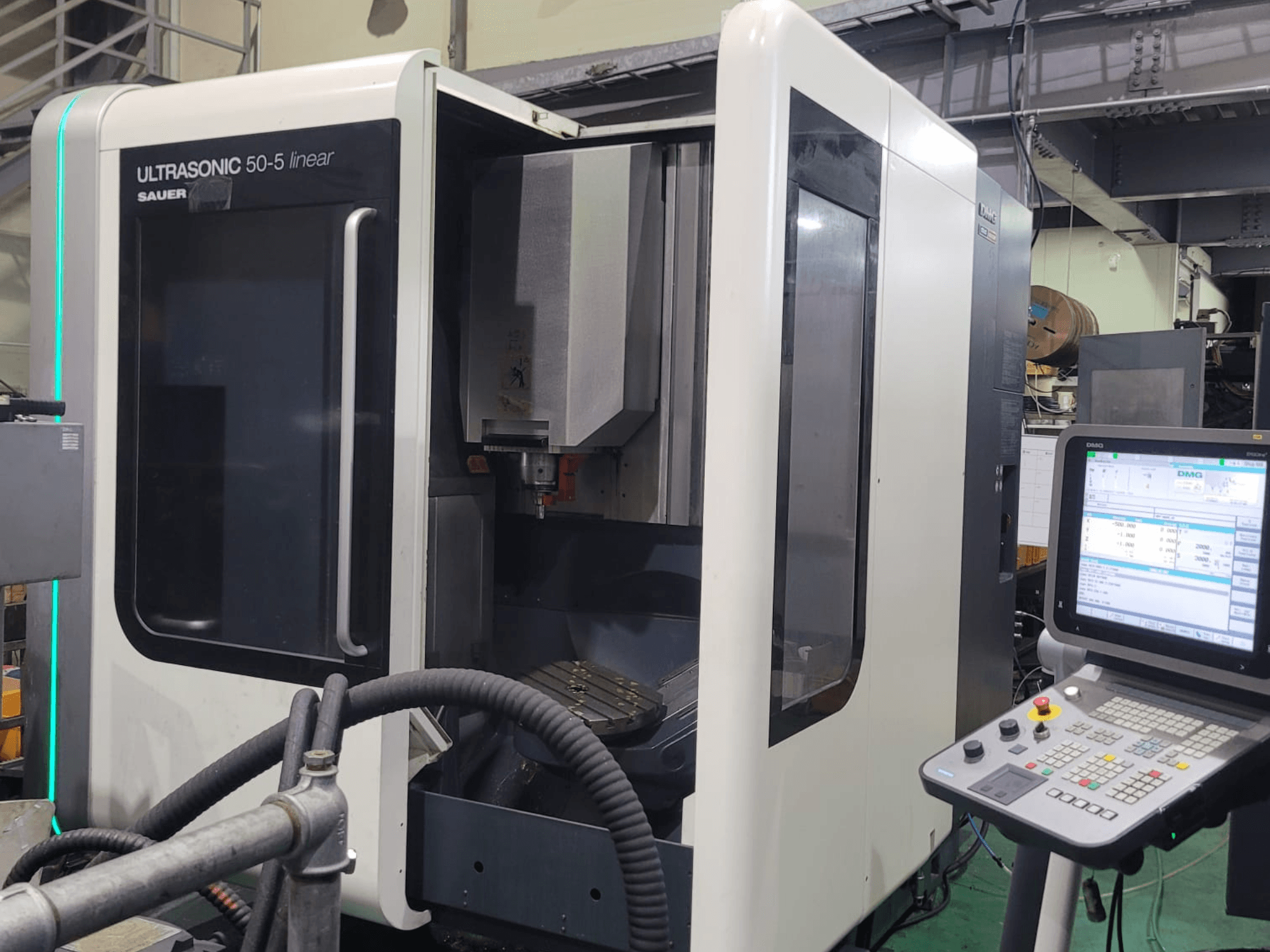

This 5-axis DMG ULTRASONIC 50-5 Linear was manufactured in 2010. It features a traverse range of 500 mm in the X-axis, 450 mm in the Y-axis, and 400 mm in the Z-axis. The machine is equipped with a USB 1818 hybrid spindle, offering speeds from 200 to 18,000 rpm for both ultrasonic hard machining and milling. If you are looking to get high-quality machining capabilities, consider the DMG ULTRASONIC 50-5 Linear universal machining centre we have for sale. Contact us for further details.

Overview

  • brand: DMG
  • year: 2010
  • MODEL: ULTRASONIC 50-5 Linear
  • application type: Milling
  • Location: South Korea
  • machine type: Universal Machining Centre
  • control unit brand: SIEMENS

Technical Information - DMG ULTRASONIC 50-5 Linear

Control Unit

  • Control Brand: SIEMENS
  • Control Model: 840D

Movement

  • Number of Axes: 5
  • X-axis Travel: 500 mm
  • Y-axis Travel: 450 mm
  • Z-axis Travel: 400 mm

Technical Specification

  • Spindle Power: 35 kW
  • Spindle Speed: 18000 RPM

Additional Information

  • Spindle: USB 1818 hybrid spindle, 35/25 kW

  • Tool interface: HSK-A63 / HSK-S63

  • Capabilities: ULTRASONIC hard machining and milling on one machine

  • Speed ranges:

    • ULTRASONIC speed: 200–18,000 1/min

    • Milling max speed: 18,000 1/min

  • Control system: 3D-Control, DMG ERGOline control with Siemens 840D solutionline and 19" display

Additional equipment

  • Oscillating tool: not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
