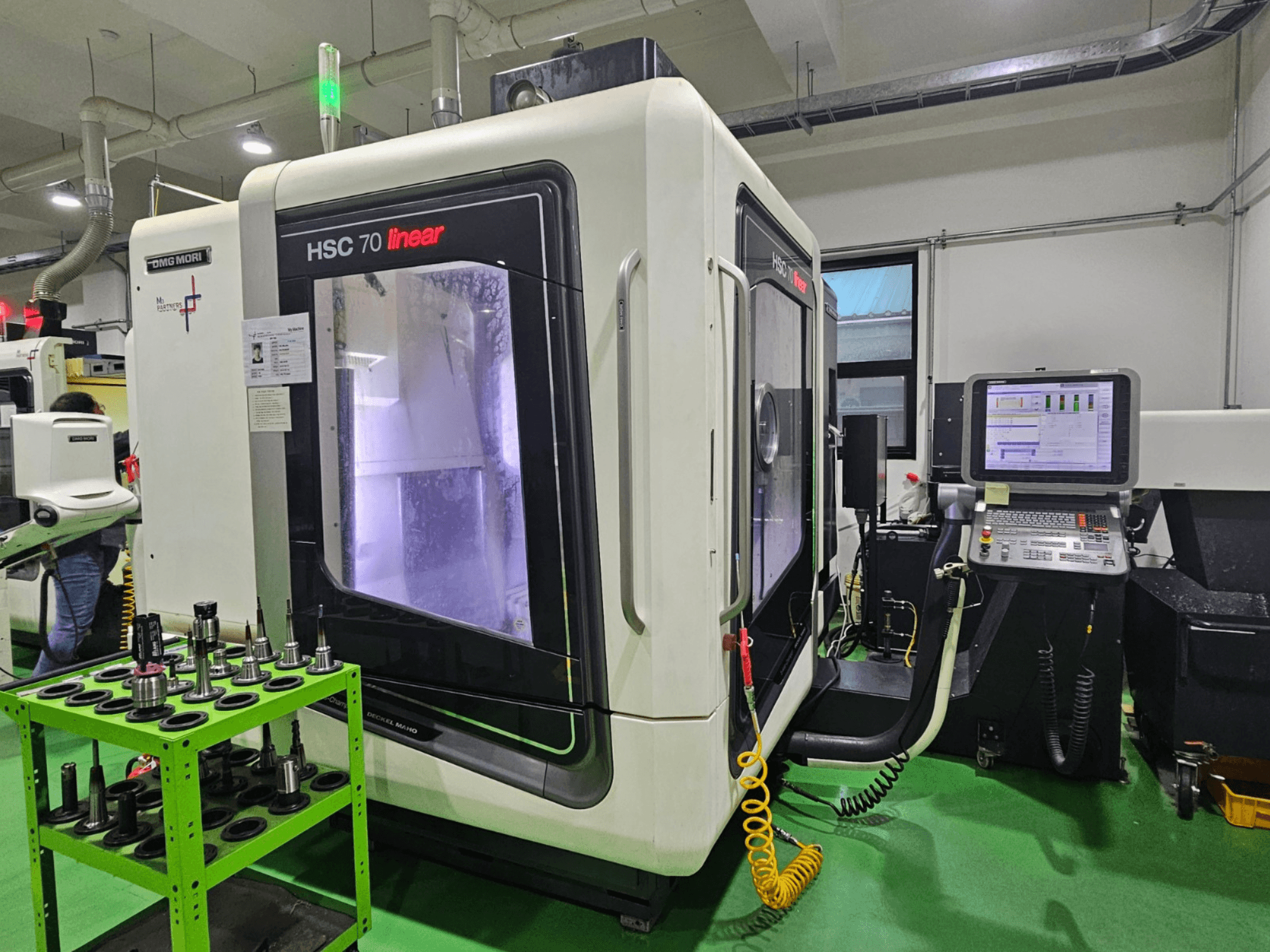

This 5-axis DMG MORI HSC 70 linear was manufactured in 2014. It features impressive travel dimensions of 650 mm in X, 600 mm in Y, and 380 mm in Z. The machine is equipped with a spindle speed of up to 18,000 rpm and a tool magazine with 30 positions. If you are looking to get high-quality machining capabilities, consider the DMG MORI HSC 70 linear universal machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2014
- MODEL: HSC 70 linear
- application type: Milling
- Location: South Korea
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI HSC 70 linear
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640 ERGOline
Dimensions
- Table Load: 500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 650 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 380 mm
Technical Specification
- Spindle Power: 19 kW
- Spindle Speed: 18000 RPM
Additional Information
Condition: Very good / well maintained
Rapid traverse: up to 80 m/min (linear drives)
Tool interface: HSK-A63 (DIN 69893)
Tool magazine: 30 positions with double gripper
Table clamping diameter: 600 mm
Swivel range:
B-axis: +20° / −110°
C-axis: 360°
Features:
Linear drive package for high dynamics
Absolute/direct measuring systems
Active cooling system (spindle, linear drives, electrical cabinet)
Frame temperature control
Fully enclosed working area with second door
3D control capability
Highlights:
High-precision 5-axis machining
Linear drive technology for maximum dynamics and accuracy
Additional equipment
Chip conveyor with coolant system and air blast
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
