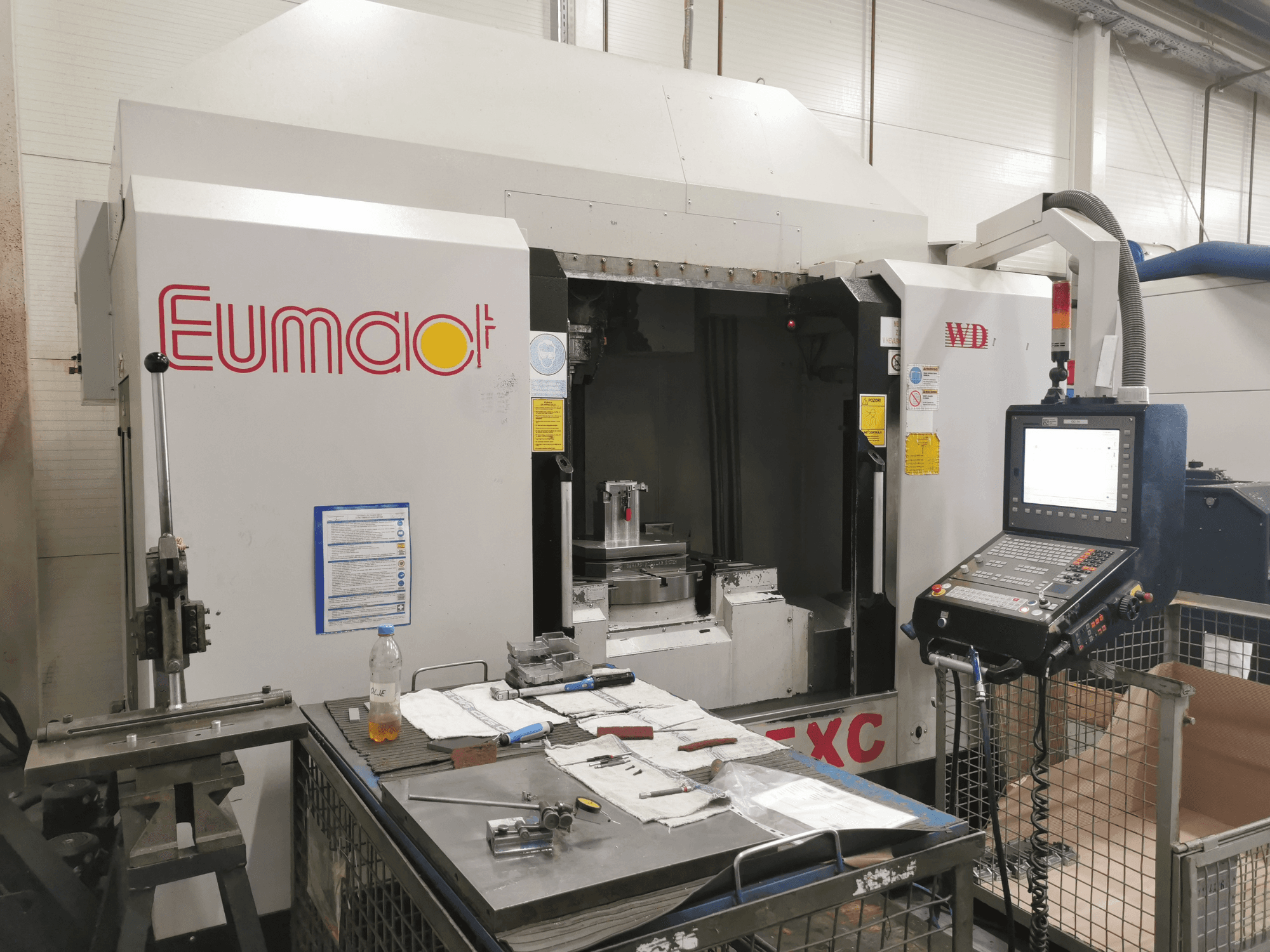

This 5-axis Eumach HSM-5XC was manufactured in 2015, featuring a Heidenhain control unit and a robust 5-axis rotary table with a Ø 610 mm diameter. It supports a maximum workpiece load of 500 kg and offers extensive axis travels (X/Y/Z: 1020/610/610 mm). The spindle reaches speeds up to 14,000 rpm, powered by a 29.3 kW motor. If you are looking to get high-quality milling capabilities, consider the Eumach HSM-5XC machine we have for sale. Contact us for more information.
Overview
- brand: Eumach
- year: 2015
- MODEL: HSM-5XC
- production hours: 13907
- application type: Milling
- Location: Slovenia
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Eumach HSM-5XC
Control Unit
- Control Brand: HEIDENHAIN
Dimensions
- Machine Weight: 9000 kg
- Table Load: 800 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1020 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Number of Tools: 32
- Spindle Power: 29.3 kW
- Spindle Speed: 14000 RPM
- Taper Size: BT 40
Additional Information
Power and weight
Voltage: 400 V
Frequency: 50/60 Hz
Installed power: 75 kVA
Operating hours (Heidenhain – actual machine data)
Control ON time: 42,157 h
Machine ON time: 37,219 h
Program run time: 18,252 h
Spindle running time: 13,907 h
S head running time: 0 h
Table system
T-slot table: 18 × 6 × 100 mm
Rotary table (5-axis), built-in saddle design
Diameter: Ø 610 mm
Spindle to table center: 0–715 mm
Spindle to table top: 105–715 mm
Max. workpiece load: 500 kg
Axis travels
B-axis tilt: +30° to −120°
C-axis rotation: 360° (0.001° resolution)
Geometric distances
Spindle to column cover: 629 mm
Spindle to table center: 947 mm
Spindle
Bearings: Ø 70 mm ceramic
Max torque: 160 Nm
Axis motors
X/Y/Z: Siemens 1FK7083 (16 Nm)
A/B: Siemens 1FW6130 (1320 Nm)
Feeds
Rapid traverse (X/Y/Z): 36 / 36 / 24 m/min
Cutting feedrate: 1–7500 mm/min
Tool magazine
Type: Double-arm tool changer, 430 mm stroke
Capacity: 32 tools
Max tool diameter: 150 mm
Max diameter without adjacent tools: 300 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
