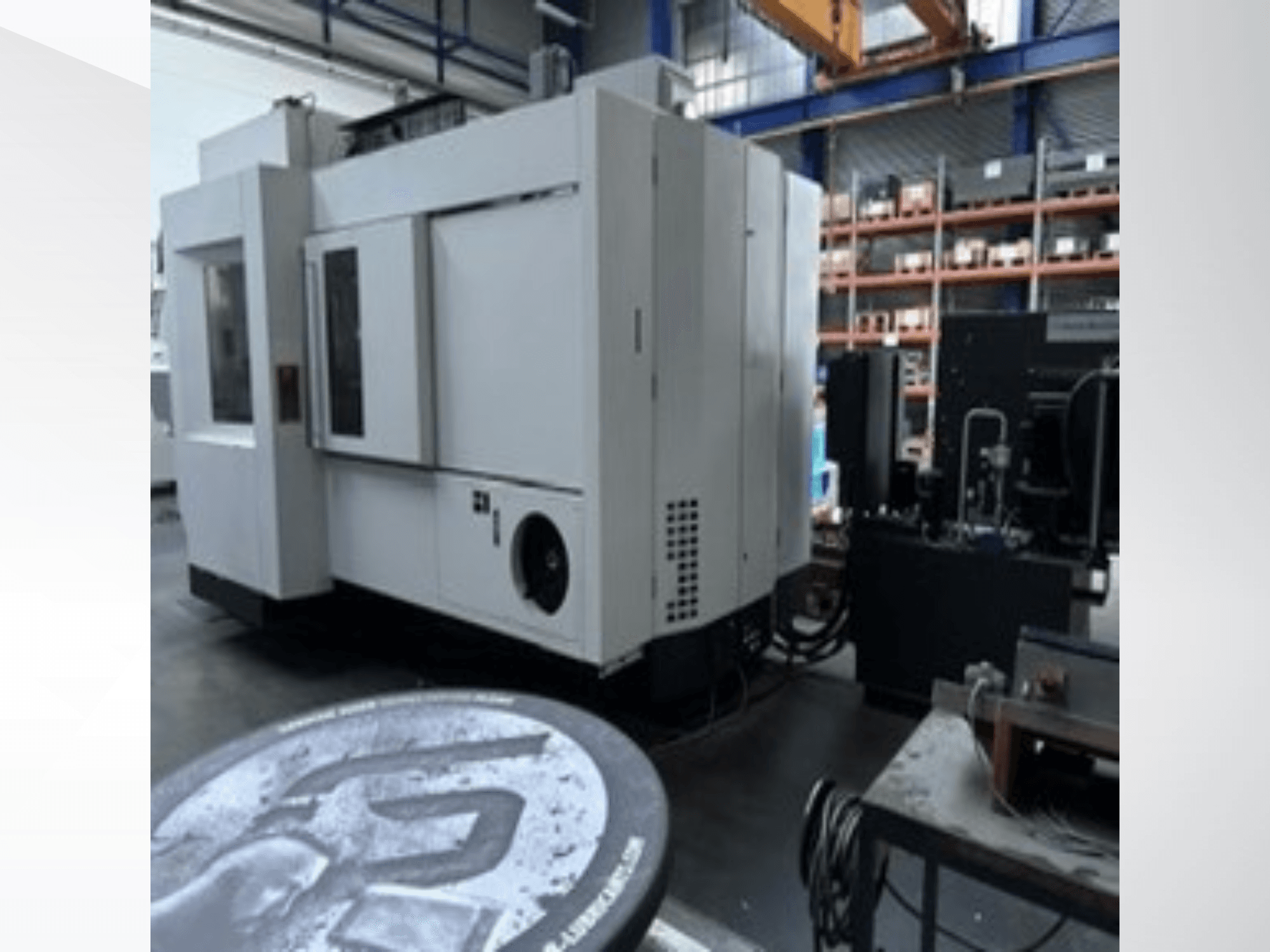

MIKRON - HPM 1350 UDE-MIL-MIK-2019-00002

- Control Unit: Heidenhain iTNC 530 HSCI FS (MC 6541 with HDR and Core i7-3 1.7 GHz dual-core processor, 15.1" color TFT)

- X-Axis Travel: 1350 mm

- Y-Axis Travel: 1150 mm

- Z-Axis Travel (Horizontal Spindle): 895 mm

- Z-Axis Travel (Vertical Spindle): 700 mm

- Motorspindle Overhang to Z-Axis: 700 mm

- Swivel Axis A Range: +16° to -120° (136° total range)

- Rotary Axis C Range: n x 360°

- Simultaneous Axes: 5 / 5 simultaneous

- Rotary Table Diameter: Ø 1100 mm (flattened on 2 sides to 1000 mm)

- Table Centering: Ø 50 H6

- T-Slots: 9 slots, 100 mm distance, 18 H12 width

- Max. Table Load (Centered): 1600 kg

- Table Clamping Moment: 8000 Nm

- Table Drive Torque (100% ED / Max): 1130 Nm / 2300 Nm

- Max. Table Speed: 40 rpm

- Rapid Feed / Feed Rate (X, Y): 15 / 32 m/min

- Rapid Feed / Feed Rate (Z): 15 / 32 m/min

- Swivel Rate Feed / Rapid (A-Axis): 11 / 20 rpm (4000 / 7200 °/min)

- Max. Feed Force: 10 kN

- Acceleration: 4 m/s²

- Spindle Speed: 0 - 15,000 rpm

- Spindle Taper: HSK-A63 (DIN 69893-1)

- Spindle Power (S6 40% ED): 38 kW

- Spindle Torque (S6 40% ED): 193 Nm

- Tool Magazine Capacity: 46 positions (HSK-A63)

- Max. Tool Diameter: 80 mm (fully loaded) / 130 mm (partially loaded)

- Max. Tool Length: 300 mm

- Max. Tool Weight: 8 kg

- Max. Magazine Load: 200 kg

- Chip-to-Chip Time: approx. 11 s

- Coolant & Chip Management: Chip conveyor with Internal Coolant Supply (IKZ 18-80 bar, frequency-regulated), 30 µm band filter unit, hand wash station

- External Coolant Supply: 7 bar, 28 l/min

- Air Blast Through Spindle: Yes (up to 10 bar)

- Measuring & Calibration Systems: Renishaw OMP60 HSK-A63 3D Infrared Touch Probe, Renishaw NC4 2-piece Laser Tool Measuring System, KinematicsOpt

- Smart Machine Features: APS (Advanced Process System), ITC (Intelligent Thermal Control), DNC Remote Network Access, rConnect Live Remote Assistance

- Operating Hours:

* Control On (Steuerung ein): 46,889 h 58 min 07 s

* Machine On (Maschine ein): 42,786 h 48 min 49 s

* Program Run (Programmlauf): 9,929 h 46 min 01 s

* Drives On (Antriebe Ein): 34,546 h 44 min 31 s

* Spindle On (Spindel Ein): 5,660 h 25 min 27 s

- Maintenance / Repairs Log Highlights:

* Spindle replaced on 10.11.2021 (GF Spindle f. 2/782) with new assembly on 29.11.2021

* Hard drive replaced on 23.12.2022

* Drive unit replaced on 24.05.2023

* Rotary feedthrough (Drehdurchführung) replaced on 07.09.2023

* A-axis aligned and spindle adjusted on 21.02.2026

- Operating Voltage: 3x 400 V (+6%/-10%), 50 Hz

- Connected Load: 67 kVA / 61 kW (with IKZ)

- Fusing: 125 A

- Compressed Air Supply: 6 + 0.5 bar, approx. 300 l/min
