➤ Used SCHÜCO AS 100 For Sale | gindumac.com

Show in original language

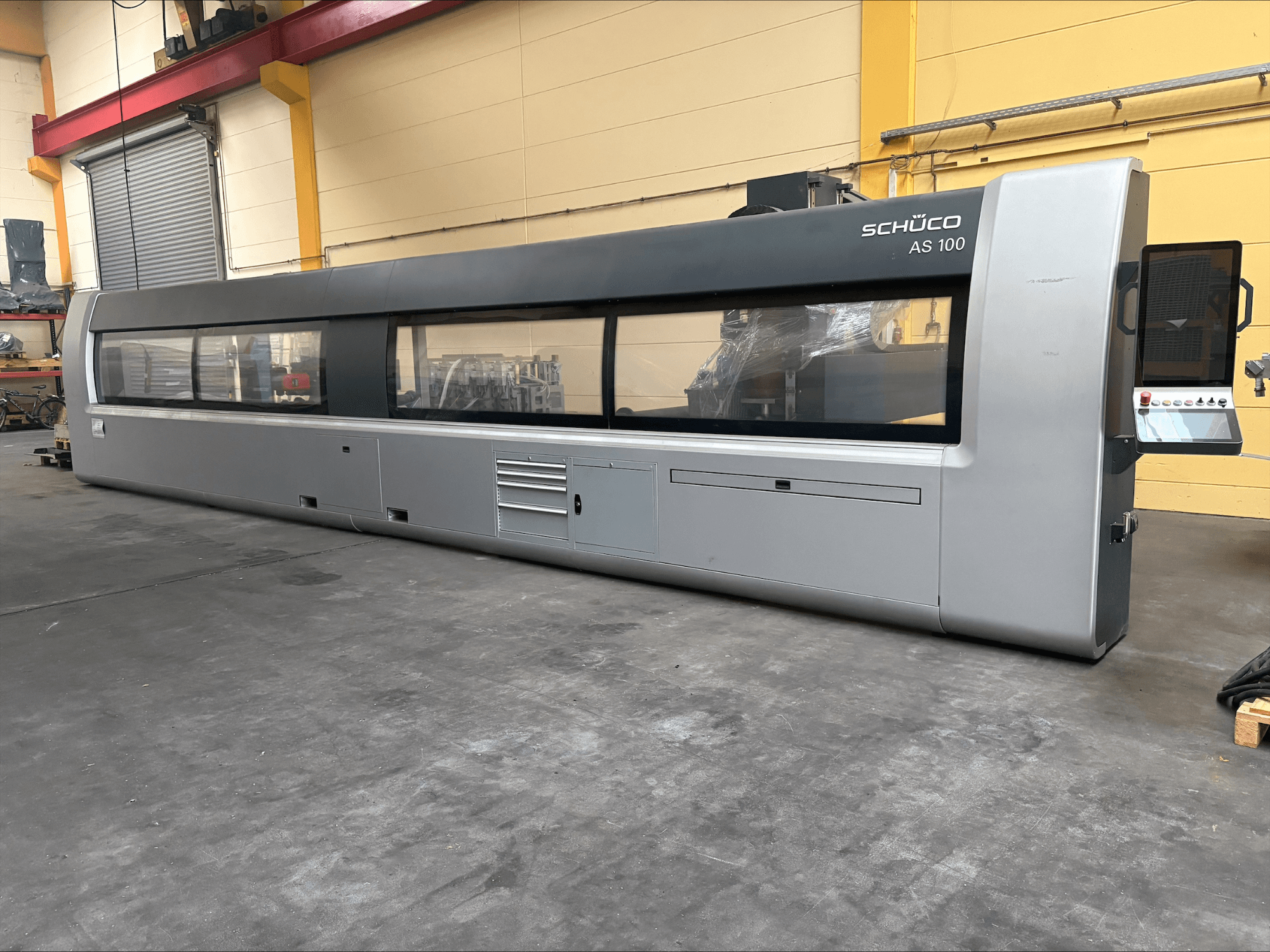

This 5-axis SCHÜCO AS 100 was manufactured in 2022. It features a machine bed length of 9,000 mm and allows for 6-sided processing with two 5-axis towers. The machine includes 5 movable clamping blocks with independent drives and a saw blade diameter of 450 mm. If you are looking to get high-quality profile machining capabilities, consider the SCHÜCO AS 100 universal machining centre we have for sale. Contact us for further details.

Overview

brand: SCHÜCO
year: 2022
MODEL: AS 100
production hours: 6314
application type: Milling
Location: Germany
machine type: Universal Machining Centre

Technical Information - SCHÜCO AS 100

Dimensions

Machine Height: 3125 mm
Machine Length: 7170 mm
Machine Weight: 26500 kg
Machine Width: 22000 mm

Movement

Number of Axes: 5
X-axis Travel: 8500 mm
Y-axis Travel: 740 mm
Z-axis Travel: 1120 mm

Technical Specification

Spindle Power: 12 kW
Spindle Speed: 24000 RPM

Additional Information

Machine bed length: 9,000 mm
Max profile length: 7,500 mm
Machining units: 2 x 5-axis towers
Machining sides: 6-sided processing possible
Clamping units: 5 movable clamping blocks with independent drives
Saw blade diameter: 450 mm
Cutting angle: 90° (per cutting diagram)
Control: AS 100 control module (leased via SchüCal)
Software: SchüCal integration

Additional equipment

Combined loading and unloading magazine
Barcode scanner (included); optional portable barcode scanner

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
