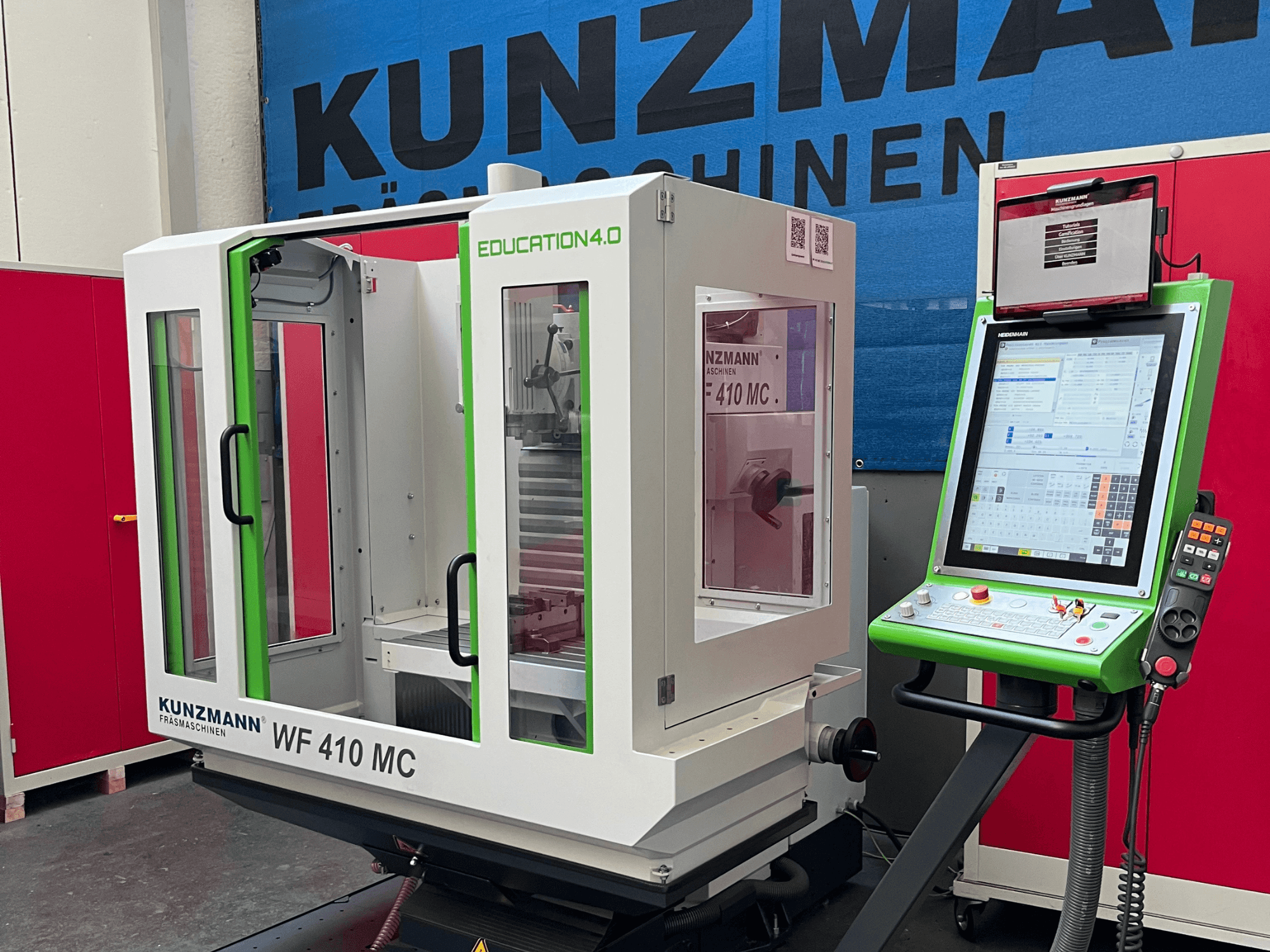

KUNZMANN - WF 410 MCDE-MIL-KUN-2023-00001

- Demonstation Machine

-Machine ON Time: 910 h

- Spindle Power S1-100% ED: 6.8 kW

- Spindle Power S6-25% ED: 13.0 kW

- Spindle Speed (Manual Operation): Infinitely variable 1 - max. 4,500 rpm

- Spindle Speed (Automatic Operation): Infinitely variable 1 - max. 5,000 rpm

- Feed Drives: Electronically controlled infinitely variable servo drive per axis

- Rapid Traverse / Feed Rate X-, Y-, Z-axis: Infinitely variable up to max. 5 / 5 / 5 m/min

- Operating Voltage: 400 V - Mains Frequency: 50 Hz - Number of Phases: 3

- Rated Current: 24 A - Main Fuse: 32 A

- Short-Circuit Breaking Capacity: 10 kA

- Power Consumption / Connection Power: approx. 17 kVA

- Control Voltage: 24 V

- Installation Weight (Base Machine): approx. 1,800 kg (incl. fluids, without options/tools)

- Max. Transport Weight: 2,030 kg

- Machine Construction: FEM-optimized cast construction in cross-slide design

- Guideways: Hardened and ground flat guideways in X, Y, Z with metal covers

- Drive System: Ball screws in all axes

- Spindle Taper Interface: SK 40 DIN ISO 7388-1 Form AD with pull stud DIN ISO 7388-3 Form AD (SKU: 10-113300)

- Vertical Milling Head: Swivel range +/- 90°, manually extendable quill with turnstile, 70 mm stroke, clampable, speed-dependent air cooling, milling cutter guard

- Tool Clamping: Automatic mechanical tool clamping, clamping force 10,000 N, hydraulic release

- Measuring System: Distance-coded linear measuring systems, direct, incremental, resolution 0.001 mm

- Overload Protection: Overload detection via drive and control technology

- Safety Handwheels: In all 3 axes - Safety Enclosure: Splash and chip guard cabin mounted on chip tray, moving vertically with axis, limit switch secured, 2 sliding doors front, 1 hinged door right, viewing windows all sides

- Control Panel: Mounted on long, swiveling arm at base, rotatable

- Lubrication: Automatic central lubrication with initial lubricant filling and front-mounted separate waste oil container

- Coolant System: Free-standing reservoir, 66 L capacity (SKU: 10-450111-03)

- Machine Lamp: LED flexible arm light

- Leveling Elements: 1 set = 4 pieces

- Fixed Angular Table: Clamping surface 650 x 375 mm, 5 T-slots 14 H7 (pitch 63 mm), max. load capacity 250 kg (SKU: 10-470050-02)

- Control Unit: HEIDENHAIN TNC 620 FS with Functional Safety

- Screen: 19" vertical touchscreen

- Storage Capacity: 30 GB total, 7.7 GB program memory (Compact Flash CFR)

- Block Processing Time: 1.5 ms - Data Interfaces: USB, Fast Ethernet 1000 Base-T

- Electronic Handwheel: HEIDENHAIN HR 510 FS with integrated axis keys, feed, and emergency stop (SKU: 10-112862-01)

- Automatic Machine Shut-Off Function: Post-shutdown or program end auto power-off (SKU: 10-113785)

- Touch Probe Preparation Kit: For TS 460 touch probe and TT 460 tool setter, including SE 660 receiver unit (SKU: 10-113028)

- Hybrid Learning Package: Surface Pro Tablet PC ~13" touchscreen with docking station, WLAN router, anti-theft device, variable tablet holder (7"-13") with magnetic mounts, interactive training software, and gamification modules (SKU: 10-119102)

- Control Software: NC Software version 817601 18 SP4 Hotfix3 FS
