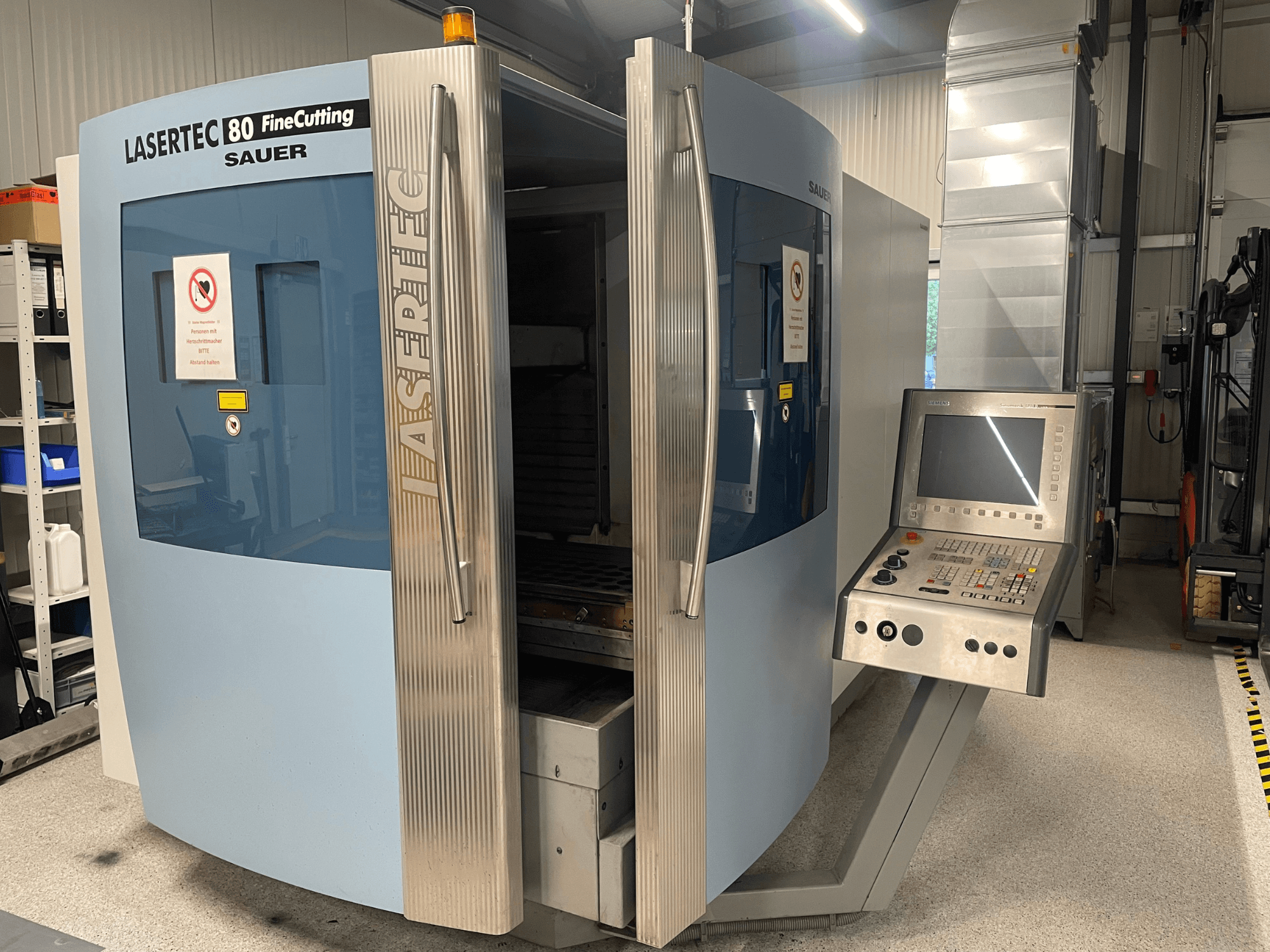

This 3-axis DMG Sauer Lasertec80 FineCutting was manufactured in 2006. It features an X-axis travel of 800 mm, Y-axis travel of 500 mm, and Z-axis travel of 700 mm. The machine is equipped with a Siemens SINUMERIK 840D Powerline control and a high-precision cross table with linear drives. If you are looking to get high-quality laser fine cutting capabilities, consider the DMG Sauer Lasertec80 FineCutting machine we have for sale. Contact us for further details.
Overview
- brand: DMG
- year: 2006
- MODEL: Sauer Lasertec80 FineCutting
- production hours: 43686
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG Sauer Lasertec80 FineCutting
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D Powerline
Dimensions
- Machine Height: 2300 mm
- Machine Weight: 7000 kg
- Table Length: 870 mm
- Table Width: 500 mm
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 700 mm
Technical Specification
- Laser Power: 0.1 kW
- Max. Cutting Length: 870 mm
- Working Width: 500 mm
Additional Information
Technical Data
Machine Type: Laser Fine Cutting, Laser Drilling and Laser Welding Machine
Control: Siemens SINUMERIK 840D Powerline
Table Type: Cross Table with Linear Drives
Maximum Sheet Size: 870 × 500 mm
Vertical Axis with Linear Guideways and Ball Screw Drive
Machine Base: Mineral Cast Construction
Laser Type: Lasag KLS246 Nd:YAG Laser
Average Laser Power: 100 W
Focal Length: 70 mm
Machine Dimensions (L × W × H): 6,000 × 5,000 × 2,300 mm
Machine Length: 6,000 mm (including aggregates, operation and maintenance space)
Machine Width: 5,000 mm (including aggregates, operation and maintenance space)
Operating Hours: 43,686 h
Laser Unit Condition: C Module Defect
Additional Equipment
Precitec Processing Head
Automatic Height Control
Keller Dust Extraction System
Automatic Filter Cleaning System
KKT Kraus Water-Air Cooling Unit
Programmable Process Gas Pressure
Completely Overhauled Laser Cavity
New Pulse Lamp
Precitec Laser Head Mounting Tools
Machine Benefits
Suitable for Laser Fine Cutting, Laser Drilling and Laser Welding
High-Precision Cross Table with Linear Drives
Automatic Height Control for Precise Processing
Comprehensive Maintenance Logbook Available
All Repairs and Component Replacements Documented
Inspection on Site Possible
Repair of the Laser Unit Possible
Repair will only be carried out if requested. Please note that the selling price may vary accordingly.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
