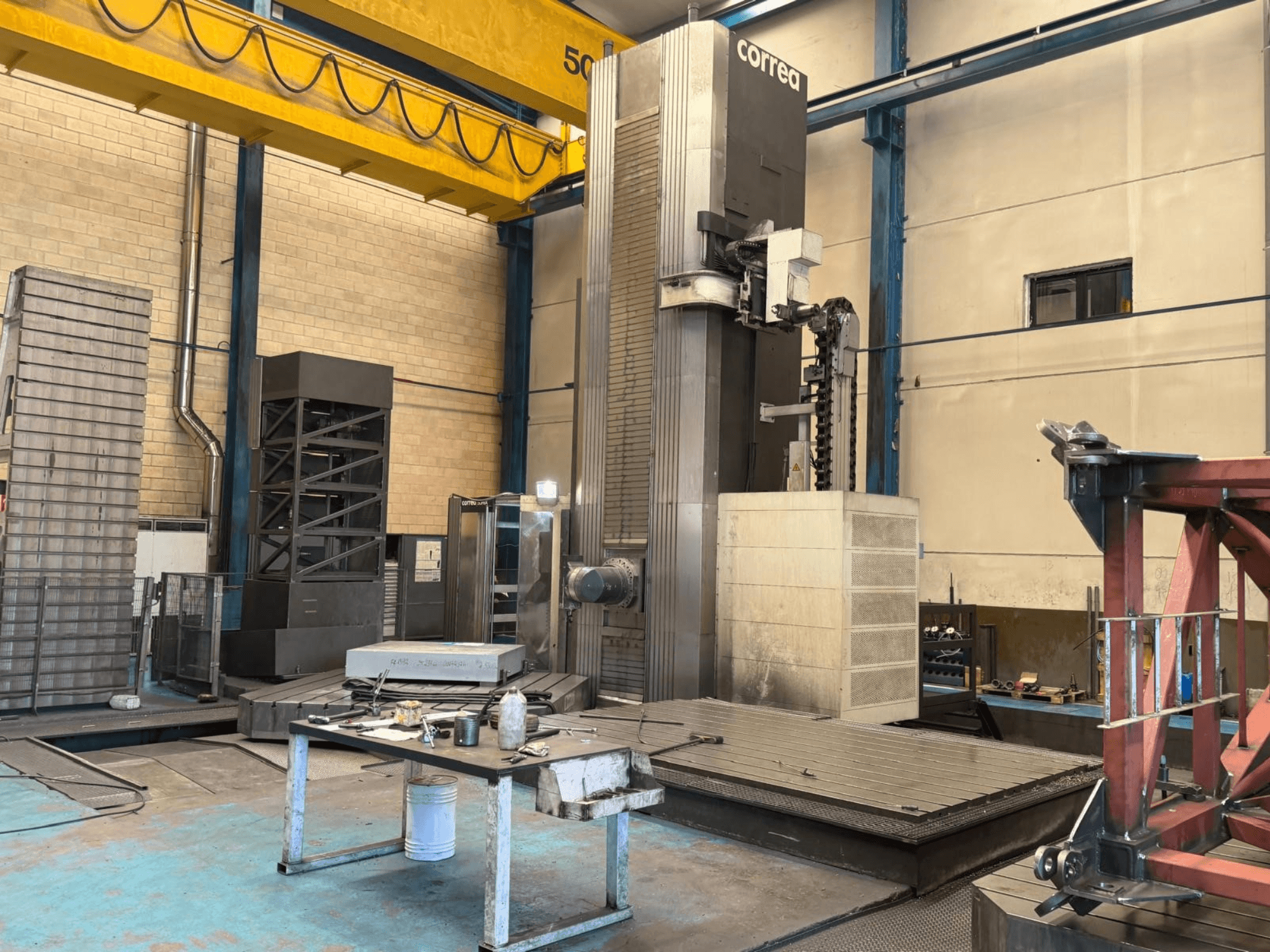

Universal machining centre manufactured in 2008. This Correa SUPRA 135 features an impressive X-axis travel of 13,500 mm, Y-axis travel of 1,500 mm, and Z-axis travel of 5,000 mm. It includes a robust fixed table with dimensions of 3,500 x 2,500 mm and a maximum load capacity of 10,000 kg. If you are looking to get high-quality machining capabilities, consider the Correa SUPRA 135 machine we have for sale. Contact us for further details.
Overview
- brand: Correa
- year: 2008
- MODEL: SUPRA 135
- application type: Milling
- Location: Spain
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Correa SUPRA 135
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Height: 8500 mm
- Machine Length: 1500 mm
- Machine Weight: 77000 kg
- Machine Width: 10650 mm
- Table Load: 10000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 13500 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 5000 mm
Technical Specification
- Max. Tool Weight: 20 kg
- Spindle Power: 37 kW
- Spindle Speed: 2500 RPM
- Taper Size: ISO 50
- Tool Stations: 60
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
