MORI SEIKI NMV 5000DCG

Photo Gallery

MORI SEIKI - NMV 5000DCGES-MIL-MOR-2008-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI NMV 5000DCG For Sale | gindumac.com

Show in original language

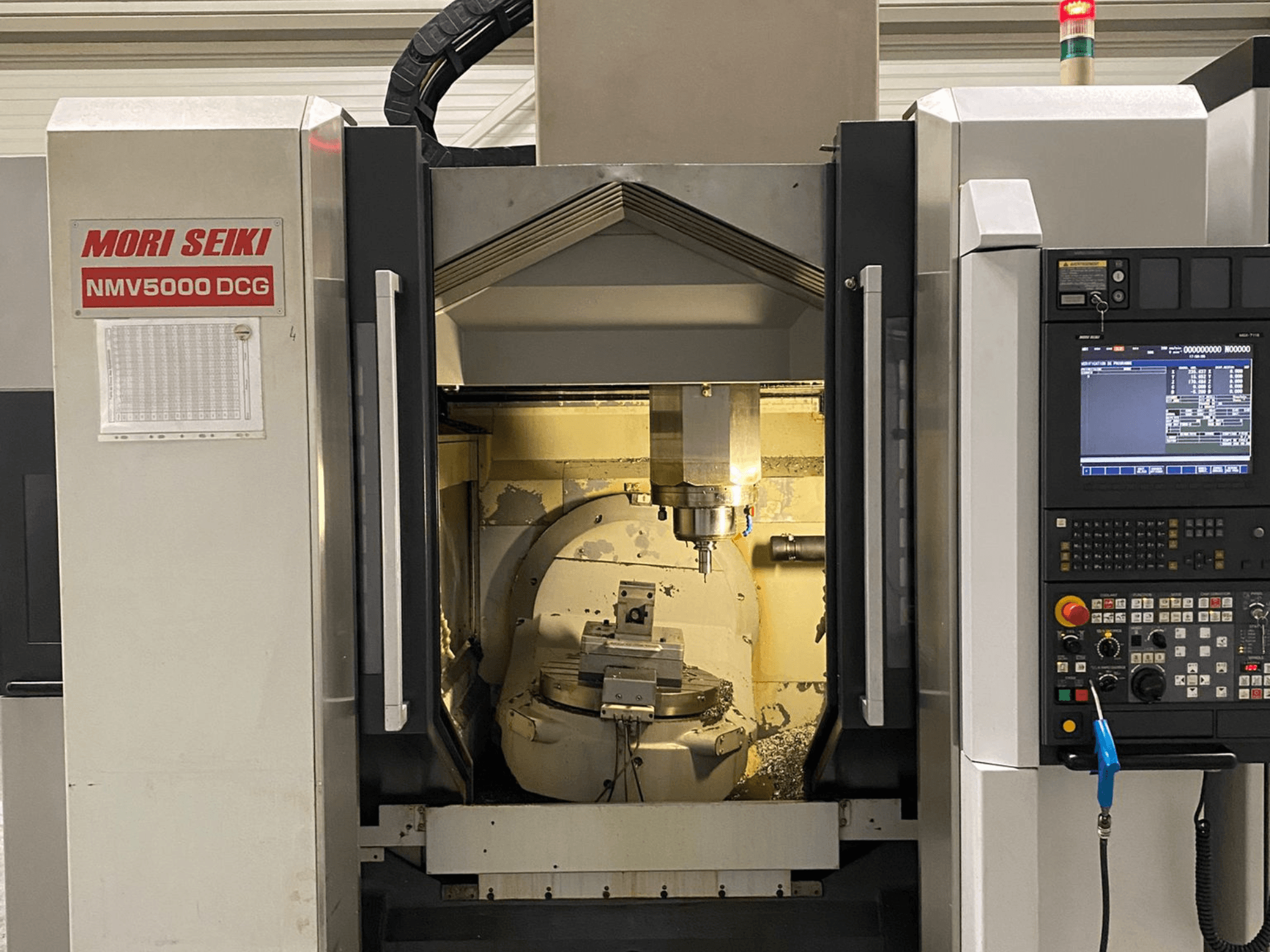

This 5-axis MORI SEIKI NMV 5000DCG was manufactured in 2008. It features a maximum X-axis travel of 730 mm, Y-axis travel of 510 mm, and Z-axis travel of 510 mm. The machine includes a spindle speed of 12,000 rpm, a magazine capacity of 60 tools and an automatic pallet system. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NMV 5000DCG universal machining centre we have for sale. Contact us for further details.

Overview

brand: MORI SEIKI
year: 2008
MODEL: NMV 5000DCG
application type: Milling
Location: Spain
machine type: Universal Machining Centre

Technical Information - MORI SEIKI NMV 5000DCG

Dimensions

Machine Weight: 13000 kg

Movement

Number of Axes: 5
X-axis Travel: 730 mm
Y-axis Travel: 510 mm
Z-axis Travel: 510 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40

Additional Information

B-axis rotation: +160° / -180°
C-axis table: 360,000 positions (0.001° resolution)
Rapid traverse (X/Y/Z): 50 / 50 / 50 m/min
Maximum torque: 135 Nm
Turning function: Integrated in table
Max. turning diameter: 450 mm
Max. swing diameter: 700 mm
Tool magazine capacity: 60 tools
Max. tool diameter: 125 mm
Max. tool length: 300 mm
Spindle cooling: Oil cooling system
Zero point: Automatic adjustment and dynamic correction (8 points)
Cutting control: Automatic power control
Program memory: 2 MB
Custom macro: 999 variables
Tool life management: 128 × 2 groups
Status: Currently operational; inspection by Mori Seiki technician available

Additional equipment

Pallet system: Automatic robot for loading/unloading
Measurement: Renishaw tool and part probing systems
Cooling: Independent high-pressure coolant system (40 bar)
Chip management: Rear chip conveyor
Power: Electrical transformer
Documentation: Full manuals, parts list, and electrical schematics
Tooling and pallets included; estimated value €50,000–€55,000

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
