DECKEL MAHO - DMC 60 UES-MIL-DEC-1994-00001

Rs. 4,254,448
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

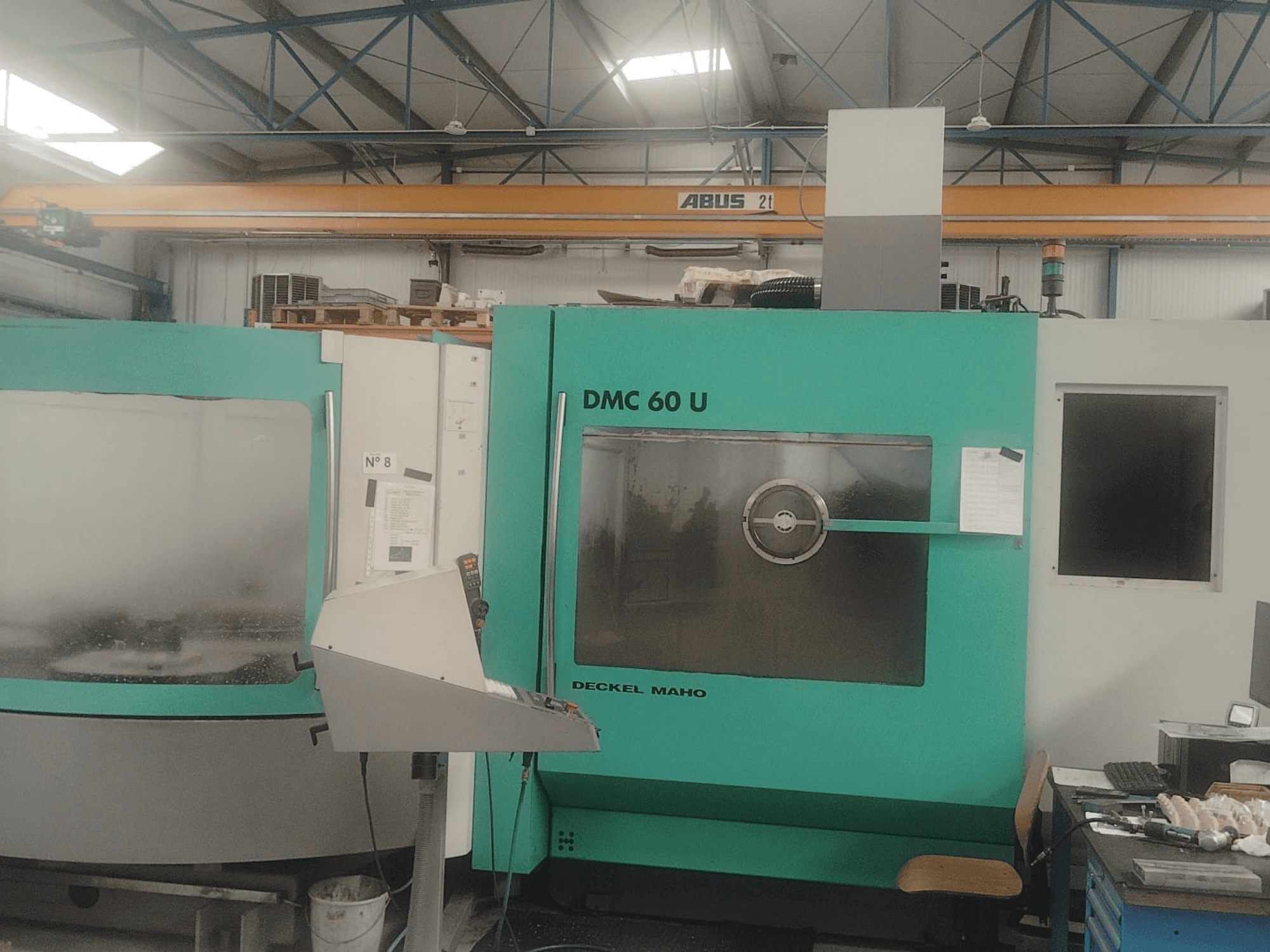

This 3-axis DECKEL MAHO DMC 60 U was manufactured in 1998. It features impressive X, Y, and Z-axis travels of 600 mm, 700 mm, and 600 mm respectively, along with a maximum spindle speed of 12,000 rpm. The machine includes a robust table size of 630 x 500 mm and a maximum workpiece weight capacity of 800 kg. If you are looking to get high-quality milling capabilities, consider the DECKEL MAHO DMC 60 U mill-turn centre we have for sale. Contact us for further details.

Overview

  • brand: DECKEL MAHO
  • year: 1998
  • MODEL: DMC 60 U
  • application type: Milling
  • Location: Spain
  • machine type: Universal Machining Centre

Technical Information - DECKEL MAHO DMC 60 U

Dimensions

  • Machine Height: 2700 mm
  • Machine Length: 4500 mm
  • Machine Weight: 11700 kg
  • Machine Width: 4500 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 600 mm
  • Y-axis Travel: 700 mm
  • Z-axis Travel: 600 mm

Technical Specification

  • Spindle Power: 28 kW
  • Spindle Speed: 12000 RPM

Additional Information

  • Rapid traverse (X/Y/Z): up to 30 m/min

  • Table: NC rotary-tilting; size 630 × 500 mm;

  • Spindle: up to 28 kW;

  • Number of tools: 120 (o "Tool capacity: 120")

  • High-pressure coolant: 40 bar

  • Coolant tank: 1,000 liters

  • Tool magazine/ATC: automatic tool changer

  • Machining capabilities: simultaneous 3-axis milling; contouring; drilling; tapping; boring; complex surface machining; aerospace and automotive component manufacturing

  • Construction/design: high-rigidity universal machining centre; integrated rotary-tilting table; full 3-axis interpolation; precision linear guideways

  • Dimensions (approx.): length 4,500 mm; width 2,500–4,500 mm; height 2,500–2,700 mm

  • Typical applications: aerospace components; medical parts; tool & die manufacturing; automotive components; precision mechanical engineering

Additional equipment

  • Internal coolant system

  • Chip conveyor

  • Touch probe

  • Tool setter

  • Tool measurement system (Blum / Renishaw, depending on machine)

  • Electronic handwheel

  • Automatic pallet changer (RS4 versions)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
