DECKEL MAHO - DMC 60UDK-MIL-DEC-2004-00002

Name: DECKEL MAHO DMC 60U
Brand: DECKEL MAHO
SKU: DK-MIL-DEC-2004-00002
Price: 4246213 INR
Availability: InStock

Rs. 4,246,213

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL MAHO DMC 60U For Sale | gindumac.com

Show in original language

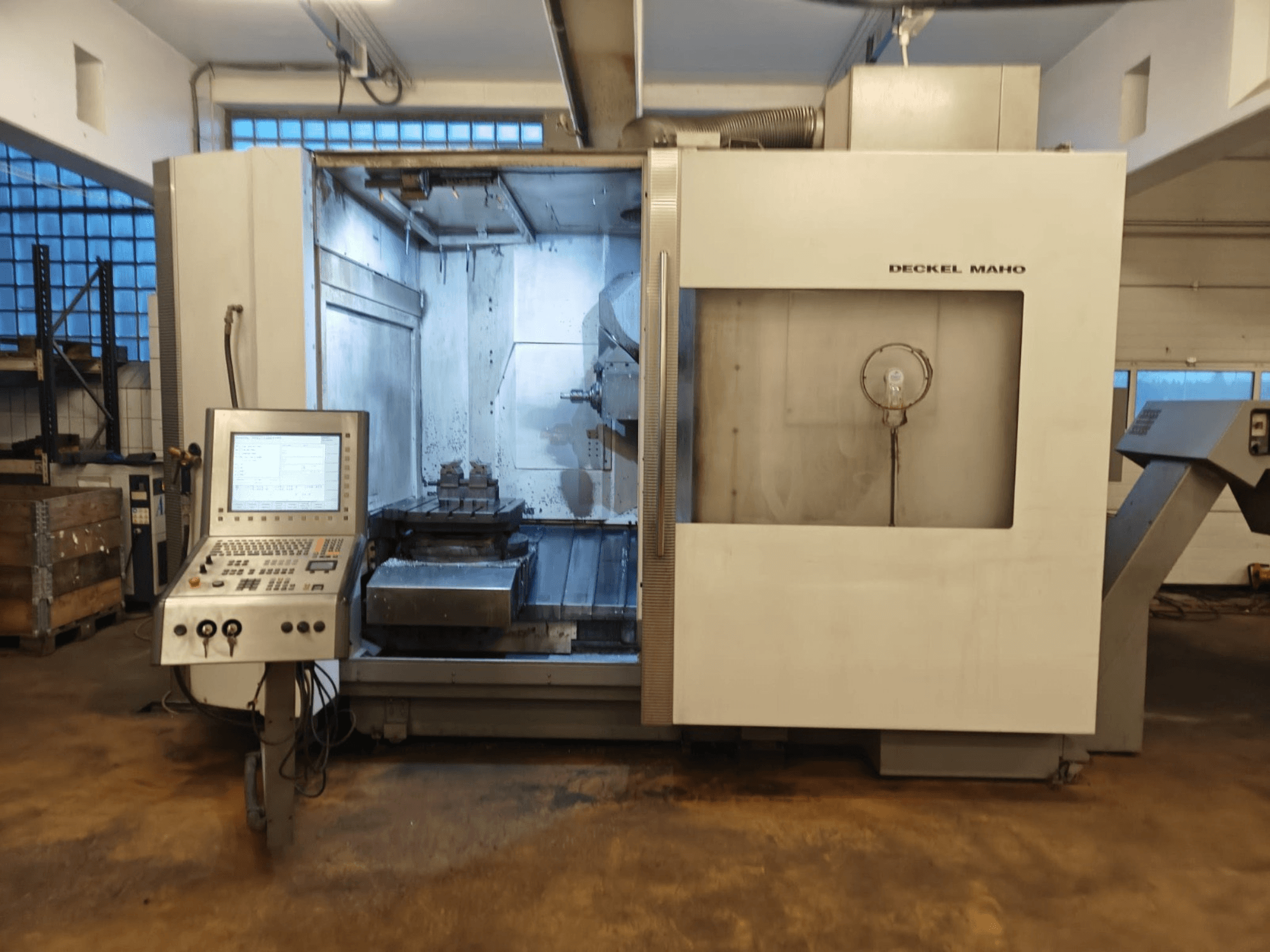

This 5-axis DECKEL MAHO DMC 60U was manufactured in 2004. It features a spindle speed of 12,000 rpm and a tool magazine with 60 positions, enhancing its versatility for various machining tasks. The Y-axis was replaced in 2023, ensuring improved performance. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 60U universal machining centre we have for sale. Contact us for further details.

Overview

brand: DECKEL MAHO
year: 2004
MODEL: DMC 60U
application type: Milling
Location: Denmark
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 60U

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Height: 2720 mm
Machine Length: 4500 mm
Machine Weight: 10000 kg
Machine Width: 2630 mm
Table Length: 500 mm
Table Load: 600 kg
Table Width: 630 mm

Movement

B-axis Max: 180°
C-axis: 360°
Number of Axes: 5
X-axis Travel: 600 mm
Y-axis Travel: 700 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 15000 RPM
Taper Size: SK 40
Through-spindle Coolant: Yes
Tool Stations: 60

Additional Information

Spindle taper: SK40 (replacement spindle, max ~2,500 operating hours)
Y-axis replaced in 2023
Kinematics measured and within specification
Tool magazine: 60 stations
On-machine 3D probe: Hexagon
Year of manufacture: 2004

Additional equipment

Tooling, chuck, vises (details to follow; see attached PDF and Excel)
No robots/automation/chip conveyor/bar feeder information provided in the text above

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
