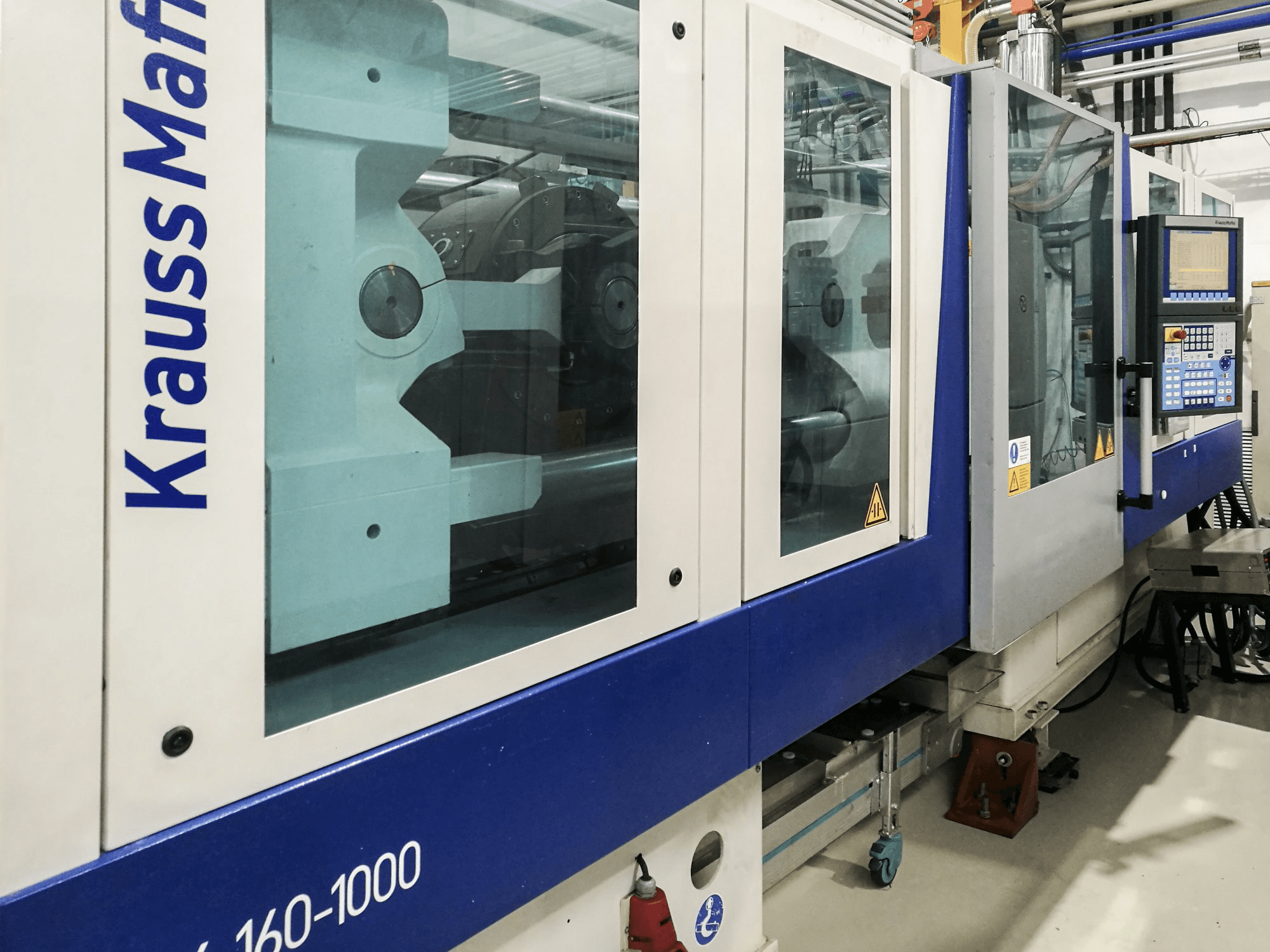

Left view of Krauss Maffei 160-1000 EX Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 160-1000 EX

Krauss Maffei - 160-1000 EXES-INJ-KRA-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Krauss Maffei 160-1000 EX Injection Moulding Machine - Used

Show in original language

This Krauss Maffei 160-1000 EX Injection Moulding Machine was manufactured in year 2008 in Germany. With a record of 63629 production hours and operated through a a Krauss Maffei MC5 Control unit, the machine has been producing mainly plastic caps and working with polyethylene as main material. Thanks to regular preventive maintenance and leveling every 6 months, the equipment stands in excellent conditions. For this machine a warranty on spare parts is included.

Overview

brand: Krauss Maffei
year: 2008
MODEL: 160-1000 EX
production hours: 63629
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 160-1000 EX

General Data

Measurements width: 6700 mm
Measurements depth: 1600 mm
Measurements height: 2300 mm
Machine weight: 13200 kg

Control Unit

Brand: KRAUSS MAFFEI
Model: MC5

Injection Unit

Screw diameter: 50 mm
Shot weight: 393 g/PS
Stroke volume: 432 cm³
Injection pressure: 2304 bar
Plasticizing rate max.: 61,1 g/s PS
Screw speed: 416 1/min
Nozzle pressure: 60 kN

Clamping unit

Clamping force: 1600 kN
Opening stroke: 450 mm
Mould height min: 300 mm
Mould height max: 550 mm
Ejector stroke: 150 mm
Ejector force for / back: 22 kN

Additional equipment

- (Warranty on Spare Parts included)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
