SUMITOMO SHI DEMAG - Intelect 2 50/360-110DE-INJ-SUM-2019-00005

Name: SUMITOMO SHI DEMAG Intelect 2 50/360-110
Brand: SUMITOMO SHI DEMAG
SKU: DE-INJ-SUM-2019-00005
Price: 6763289 INR
Availability: InStock

Rs. 6,763,289

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used SUMITOMO SHI DEMAG Intelect 2 50/360-110 For Sale

Show in original language

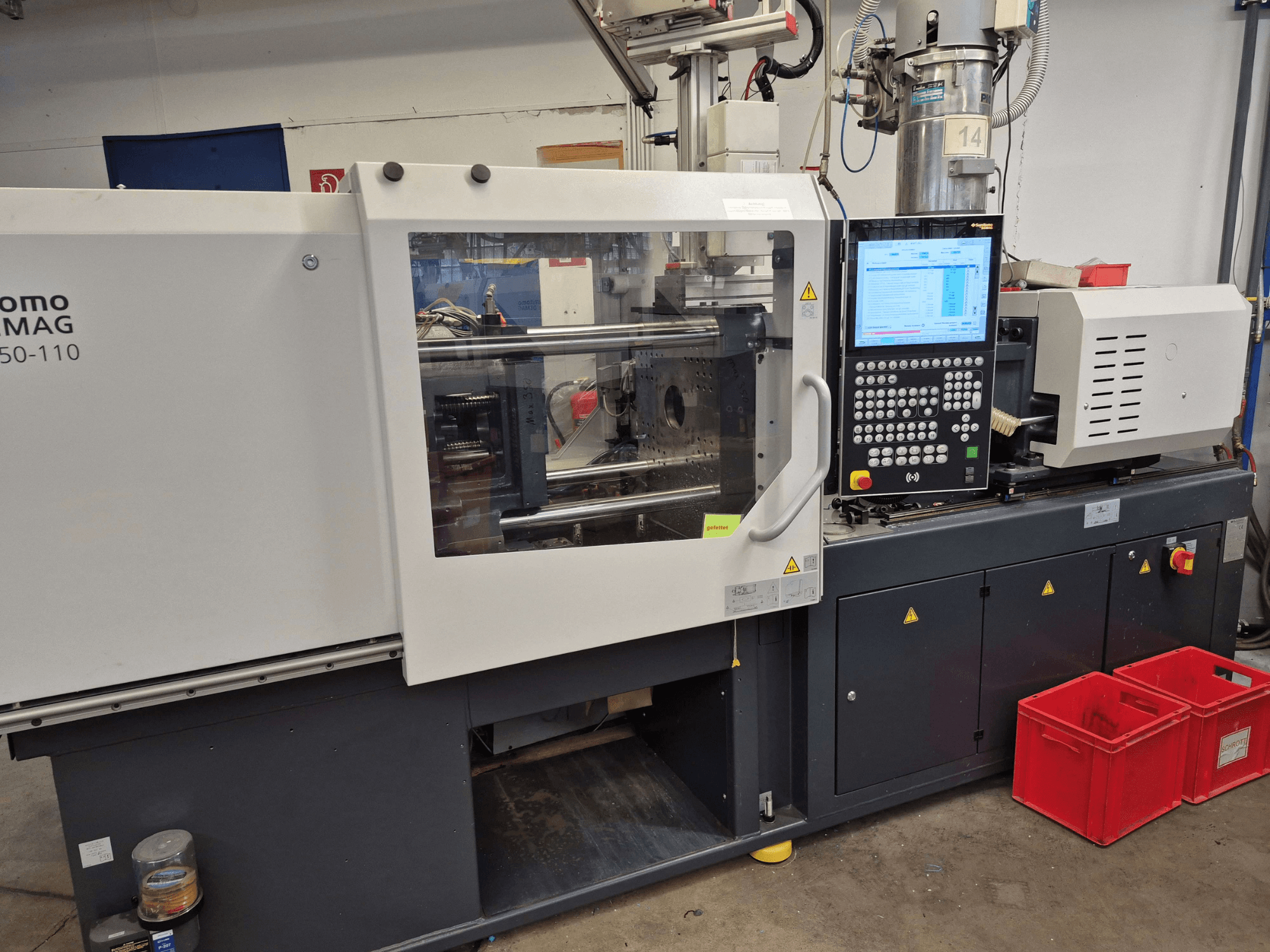

Electrical injection moulding machine manufactured in 2019. This SUMITOMO SHI DEMAG Intelect 2 50/360-110 features a clamping force of 50 t and a screw diameter of 18 mm. It offers a maximum specific injection pressure of 2800 bar and a maximum dosing volume of 23 cm³. If you are looking to get high-quality injection moulding capabilities, consider the SUMITOMO SHI DEMAG Intelect 2 50/360-110 machine we have for sale. Contact us for further details.

Overview

brand: SUMITOMO SHI DEMAG
year: 2019
MODEL: Intelect 2 50/360-110
production hours: 17000
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG Intelect 2 50/360-110

Technical Specification

Clamping Force: 500 kN
Screw Diameter: 18 mm

Additional Information

- Max. Specific Injection Pressure: 2800 bar

- Max. Dosing Volume: 23 cm³

- Mold Height Min-Max: 160 mm - 350 mm

- Tie Bar Clearance: 360 mm

- Centering Diameter (Fixed / Movable Plate): 125 mm / 125 mm

- Maintenance Group: 1

- Core Pulls: 2

- Working Hours (Drive): 17000 hrs

- Ejector Force: 21 kN

- Ejector Stroke: 120 mm

- Max. Ejector Speed Stage 1: 333 mm/s

- Max. Injection Speed: 200 mm/s

- Mains Voltage: 400 V +-10% / 50 Hz, 3 Ph + N + PE

- Hot Runner Control: 3 zones integrated, 2.75 kW

- Integrated Hydraulic Servo Power Unit: Max. 25 l/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
