SHIBAURA - EC230SXIII-8AES-INJ-SHI-2020-00001

Rs. 13,073,443
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

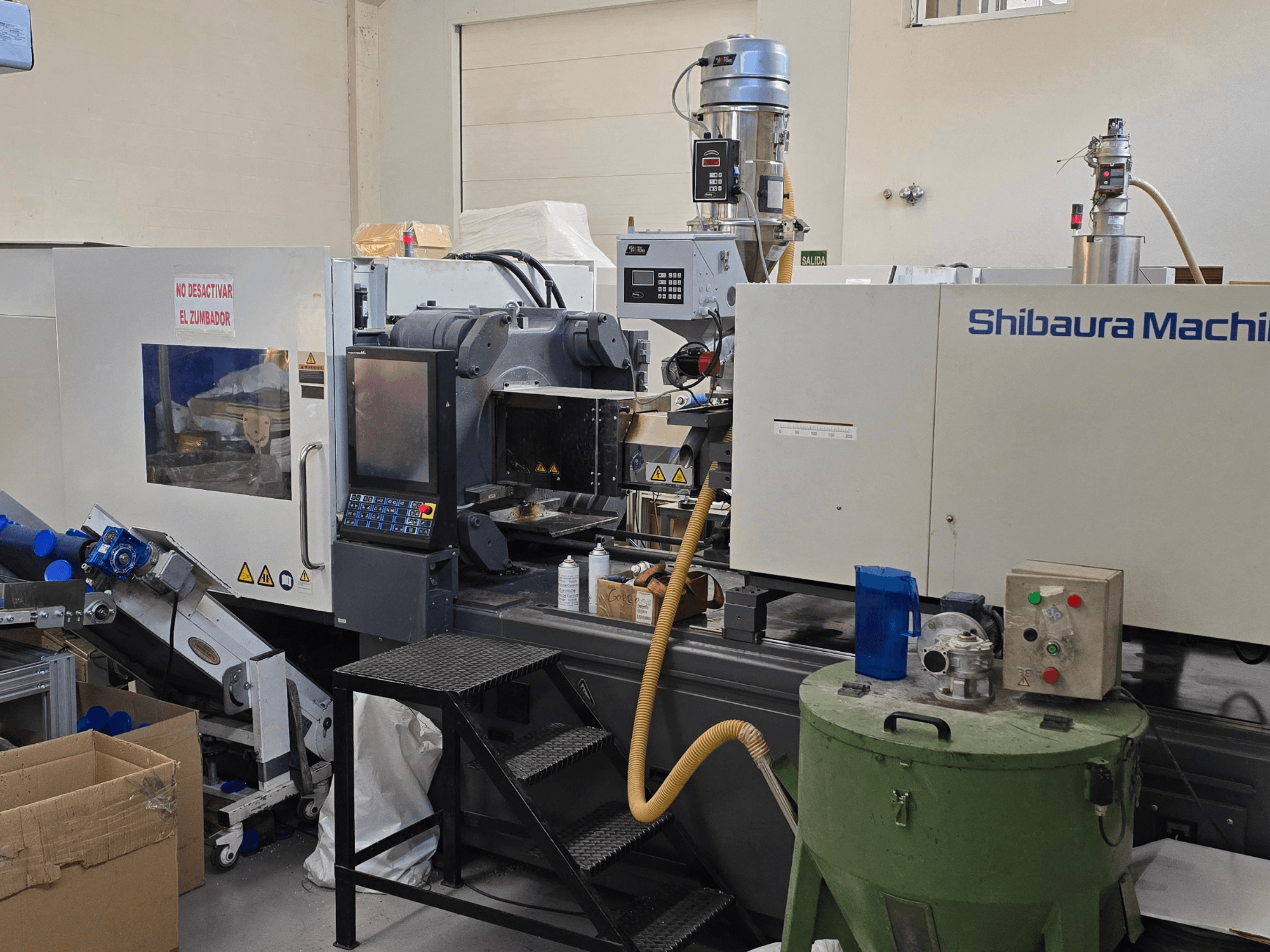

This 3-axis SHIBAURA EC230SXIII-8A was manufactured in 2020. It features a clamping force of 2250 kN and a mold opening stroke of 550 mm. The machine has a maximum distance between platens of 1230 mm and a screw diameter of 45 / 50 / 55 mm. If you are looking to get high-quality injection molding capabilities, consider the SHIBAURA EC230SXIII-8A electrical injection moulding machine we have for sale. Contact us for further details.

Overview

  • brand: SHIBAURA
  • year: 2020
  • MODEL: EC230SXIII-8A
  • production hours: 20000
  • application type: Injection Moulding
  • Location: Spain
  • machine type: Electrical Injection Moulding Machine
  • control unit brand:

Technical Information - SHIBAURA EC230SXIII-8A

Dimensions

  • Machine Height: 2000 mm
  • Machine Length: 6400 mm
  • Machine Weight: 9900 kg
  • Machine Width: 1700 mm

Technical Specification

  • Clamping Force: 2250 kN
  • Screw Diameter: 55 mm

Additional Information

  • Distance between tie bars (H x V): 610 x 560 mm

  • Platen dimensions (H x V): 880 x 830 mm

  • Mold opening stroke: 550 mm

  • Max. distance between platens: 1230 mm

  • Mold height (min–max): 250–680 mm

  • Ejection force: 49 kN (5.0 tf)

  • Ejection stroke: 130 mm

  • Injection unit code: 18

  • Screw diameter: 45 / 50 / 55 mm

  • Max. injection capacity: 318 / 392 / 475 cm³

  • Injection weight (PS): 292 / 361 / 437 g

  • Injection weight (PE): 232 / 286 / 346 g

  • Max. injection pressure: 247 / 200 / 165 MPa

  • Max. holding pressure: 247 / 200 / 165 MPa

  • Nozzle support force: 29.4 kN (3.0 tf)

  • Main breaker capacity (STD/High Torque): 125 A

  • Main breaker capacity (High Speed): 175 A

  • Transformer (STD): 75 kVA

  • Heating power: 15.2 / 16 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
