Milacron - Elektron Evo 350CZ-INJ-MIL-2017-00004

Name: Milacron Elektron Evo 350
Brand: Milacron
SKU: CZ-INJ-MIL-2017-00004
Price: 9411229 INR
Availability: InStock

Rs. 9,411,229

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Milacron Elektron Evo 350 For Sale | gindumac.com

Show in original language

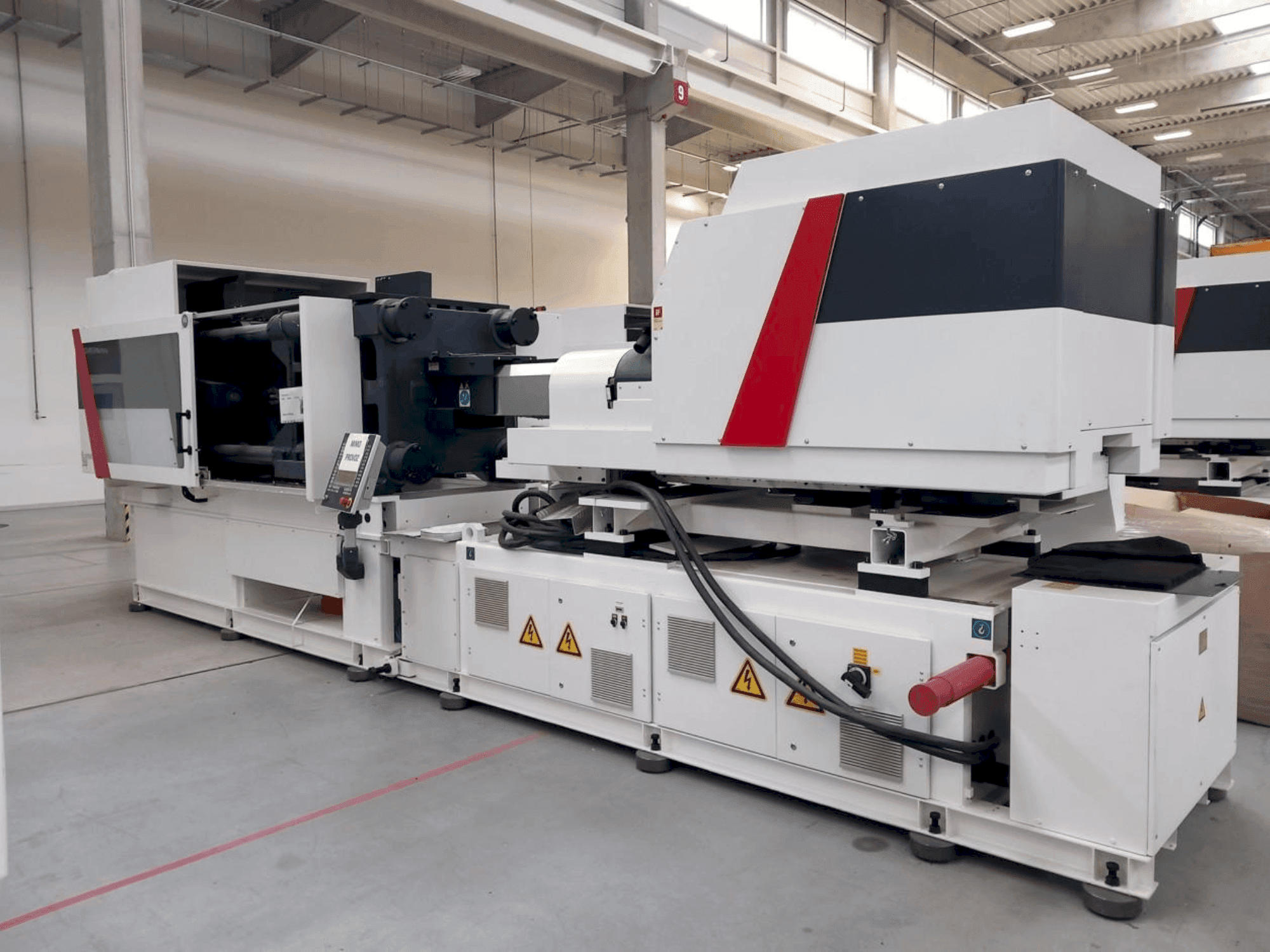

This Milacron Elektron Evo 350 was manufactured in 2017. A robust electrical injection moulding machine featuring a screw diameter of 70 mm, closing force of 350 T, and a shot weight of 1172 g. It supports mold sizes between 249 – 800 mm and has minimal usage with only 235 testing hours. Contact us for more information about this machine.

Overview

brand: Milacron
year: 2017
MODEL: Elektron Evo 350
production hours: 235
application type: Injection Moulding
Location: Czech Republic
machine type: Electrical Injection Moulding Machine

Technical Information - Milacron Elektron Evo 350

Dimensions

Machine Height: 2350 mm
Machine Length: 7110 mm
Machine Weight: 21500 kg
Machine Width: 2030 mm

Technical Specification

Clamping Force: 3500 kN
Max. Shot Weight: 1172 g
Screw Diameter: 70 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine is like new.

Technical Machine Benefits

Injection unit size: 2290

- Max. Injection Pressure: 1421 bar
- Max. Stroke Volume: 1232 cm3
- Max. Shot Weight (PS): 1172 g
- Screw Stroke: 320 mm
- Carriage Stroke: 400 mm
- Nozzle Contact Force: 30 kN
- Injection Rate: 580 cm3/s
- Injection Speed: 150 mm/s
- Screw Speed: 250 ot/min (RPM)
- Plasticizing Rate (GPPS): 77 g/s
- Effective Screw Length (L/D): 22.9
- Number of Heating Zones: 4+1
- Installed Heating Power: 39.6 kW
Clamping Force: 3500 kN:
- Distance Between Tie Bars (H x V): 720 x 720 mm
- Platen Dimensions (H x V): 1030 x 1030 mm
- Mold Opening Stroke: 675 mm
- Max. Daylight: 1475 mm
- Min. Mold Mounting Height: 250 mm
- Max. Mold Mounting Height: 800 mm
- Max. Mold Weight (Moving / Stationary): 2630 / 1320 kg
- Max. Total Mold Weight: 3950 kg
- Ejector Force: 75 kN
- Ejector Stroke: 200 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
