Engel - e-victory 1640/260DE-INJ-ENG-2015-00006

Name: Engel e-victory 1640/260
Brand: Engel
SKU: DE-INJ-ENG-2015-00006
Price: 10663803 INR
Availability: InStock

Rs. 10,663,803

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel e-victory 1640/260 For Sale | gindumac.com

Show in original language

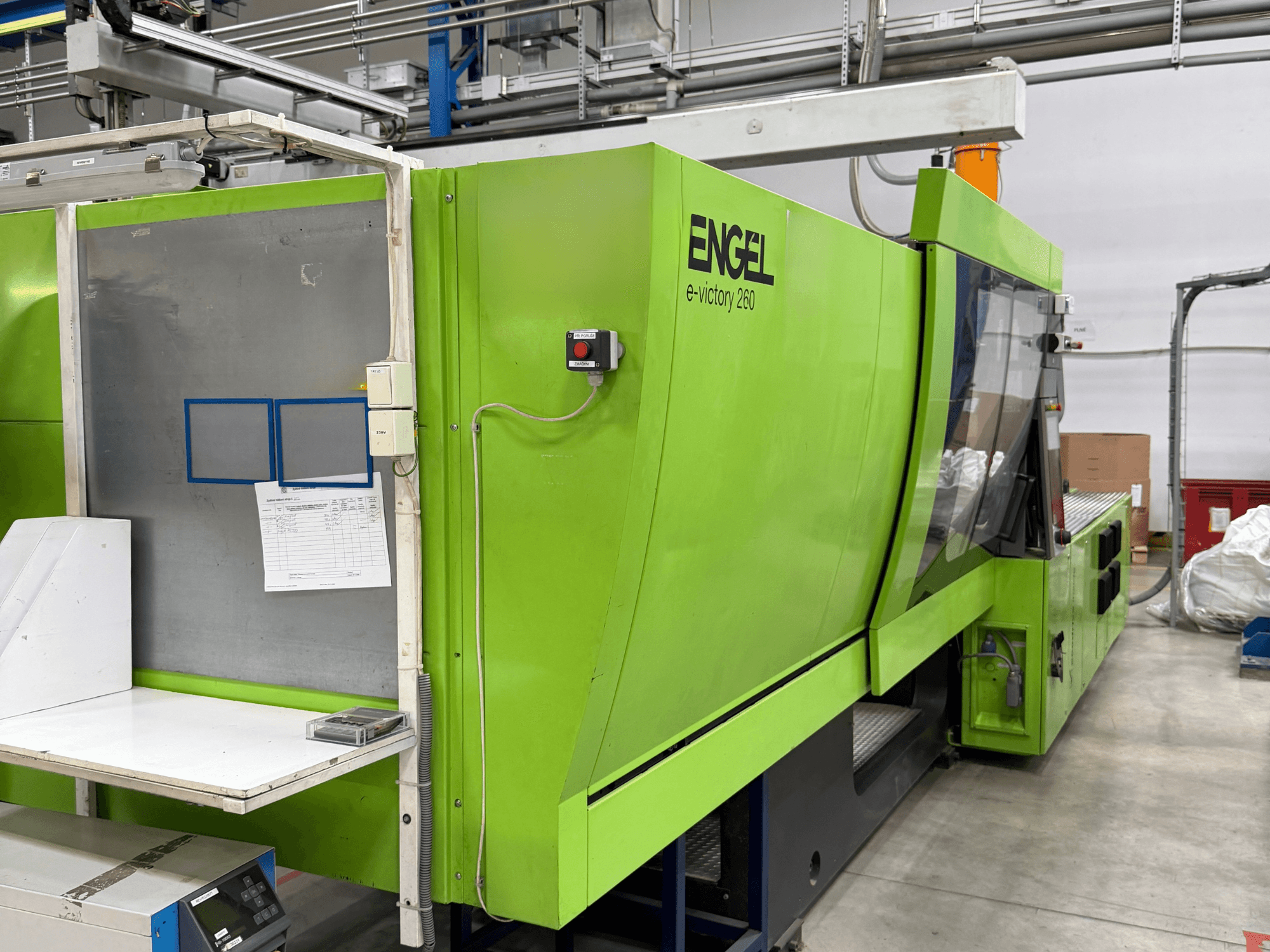

Electrical injection moulding machine manufactured in 2015. This Engel e-victory 1640/260 features a clamping force of 2600 kN and an injection unit of 1640. It includes a tiebarless clamping system and a servo-electric injection system for high efficiency. If you are looking to get high-quality injection moulding capabilities, consider the Engel e-victory 1640/260 machine we have for sale. Contact us for further details.

Overview

brand: Engel
year: 2015
MODEL: e-victory 1640/260
production hours: 29446
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel e-victory 1640/260

Control Unit

Control Brand: ENGEL
Control Model: CC300

Dimensions

Machine Length: 8780 mm
Machine Weight: 22300 kg

Technical Specification

Clamping Force: 2600 kN
Screw Diameter: 60 mm

Additional Information

Clamping system: Tiebarless ENGEL clamping system
Injection unit: 1640
Injection system: Servo-electric, high execution
L/D ratio: 24
Control unit: ENGEL CC300 (21.5" Full HD touchscreen)
Hydraulics: ECODRIVE SHV1 (1 demand-regulated servo pump)
Electrical connection: 3 x 400 V + N + PE, 50 Hz
Nominal connected load: approx. 164 kW
Centering: 160 mm
Hydraulic core pulls: 2 on moving platen, 2 on stationary platen
Vacuum/compressed air circuits: 8 on stationary platen with Venturi nozzles and pressure switches
Pneumatic mold valve control: 2-fold FESTO, up to 16 bar
Mold heating: 16 control zones, max heating power 25 kW
Nozzle radius: 15 mm
Nozzle bore: 4 mm
Nozzle contact stroke: approx. 405 mm
Hydraulic tank capacity: Main tank approx. 490 l, suction tank approx. 220 l
Robot interface: Euromap 67 / AN-146
Languages: Czech and German

Additional equipment

MuCell package:
- Complete MuCell Basic Package
- PM cold-work steel screw Ø 60 mm
- Hydraulic needle shut-off nozzle
- Melt pressure sensor
- Trexel auxiliary equipment: SII VC 30, MIK 1060 SII
- Frame for two 50 L gas cylinders
Mold temperature control: 3 ENGEL flomo distributors (24 monitored circuits total)
GEKU automation with conveyor belts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
