Husky Hylelectric H1000 RS95/80

Photo Gallery

Rs. 5,705,345

gindumac price

(Ex works)

Get an official quote

Husky - Hylelectric H1000 RS95/80DE-INJ-HUS-2005-00001

Name: Husky Hylelectric H1000 RS95/80
Brand: Husky
SKU: DE-INJ-HUS-2005-00001
Price: 5705345 INR
Availability: InStock

Rs. 5,705,345

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Husky Hylelectric H1000 RS95/80 For Sale

Show in original language

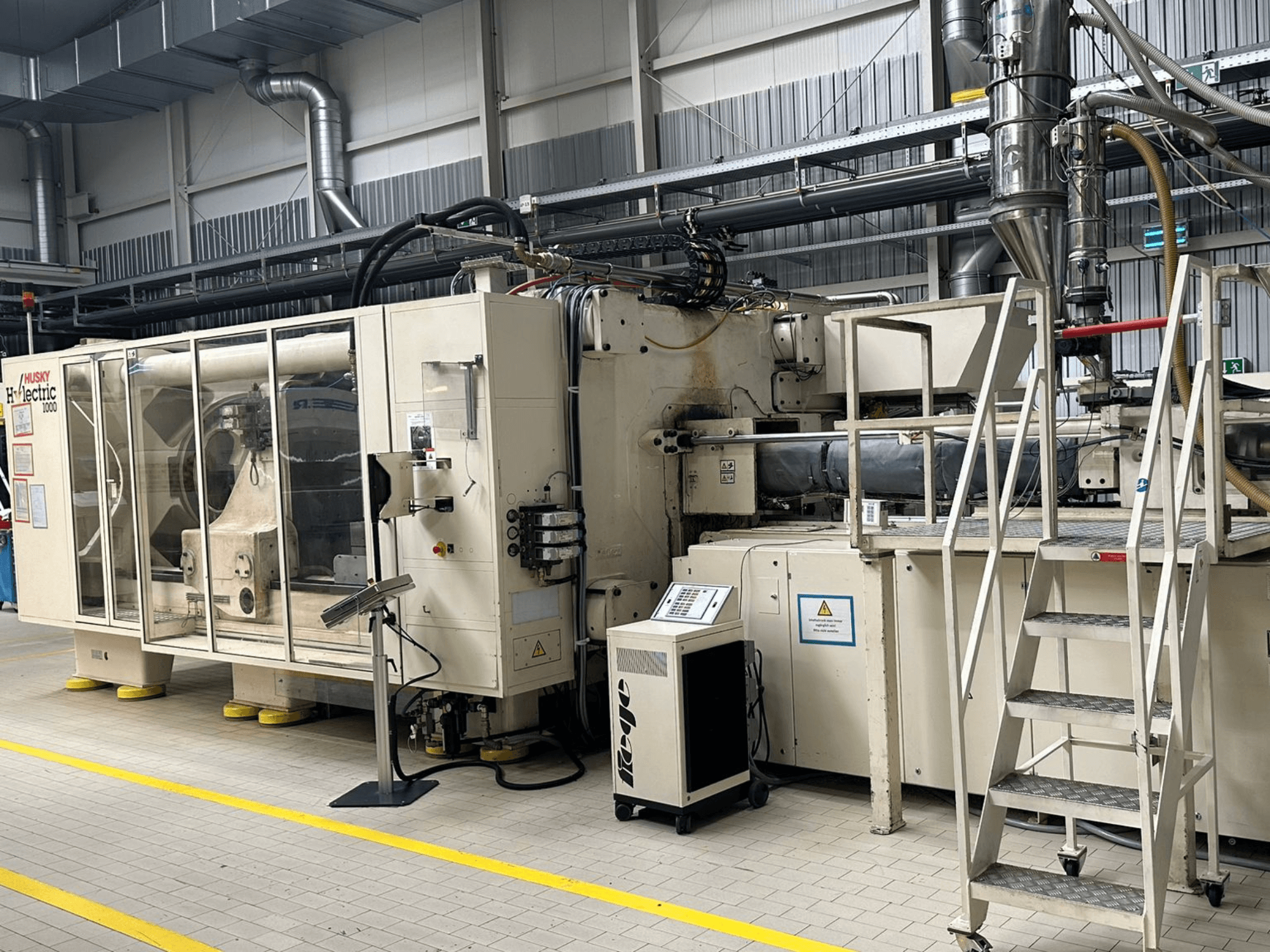

Electrical injection moulding machine manufactured in 2005. This Husky Hylelectric H1000 RS95/80 features a clamping force of 10,000 kN and a total platen size of 2070 x 1840 mm. It has a maximum injection pressure of 2280 bar and a screw diameter of 80 mm. If you are looking to get high-quality injection moulding capabilities, consider the Husky Hylelectric H1000 RS95/80 machine we have for sale. Contact us for further details.

Overview

brand: Husky
year: 2005
MODEL: Hylelectric H1000 RS95/80
production hours: 133990
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine

Technical Information - Husky Hylelectric H1000 RS95/80

Dimensions

Machine Weight: 57040 kg

Technical Specification

Clamping Force: 10000 kN

Additional Information

- Working Hours (SAP): 115,857.21 h

- Working Hours (Physical Counter / Total): 133,990.81 h

- Clamping Force: 10000 kN (1000 t)

- Mold Installation Height min/max: 600 / 1300 mm

- Opening Stroke min/max: 1330 / 2000 mm

- Distance Between Tie Bars (H x V): 1550 x 1320 mm

- Tie Bar Diameter: 240 mm

- Total Platen Size: 2070 x 1840 mm

- Centering Hole FS / BS: 200 / 200 mm

- Ejector Type: Hydraulic

- Ejector Stroke max: 250 mm

- Water Circuits: 25

- Take-out Handling / Stacking Unit: Muller BJ 2024 (additional equipment)

- Screw Diameter: 80 mm

- Dosier Stroke max: 425 mm

- Max Shot Weight: 1546 g

- Max Injection Pressure: 2280 bar

- Core Pulls Pneumatic: 2

- Core Pulls Hydraulic: 2

- Air Valve Quantity: 16

- Interface for Handling Euro Map: 67

- Power Rating Machine / Connection Value: 120 kW

- Total Machine Weight (Nameplate): 57,040 kg (57 t)

- Electrical Supply Connection: 400 V, 633 A, 50 Hz

- Hydraulic Pressure Max: 18 MPa (180 bar)

- Oil Volume: 1200 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
