➤ Used Husky Hylelectric H1000 RS95/80 For Sale

Show in original language

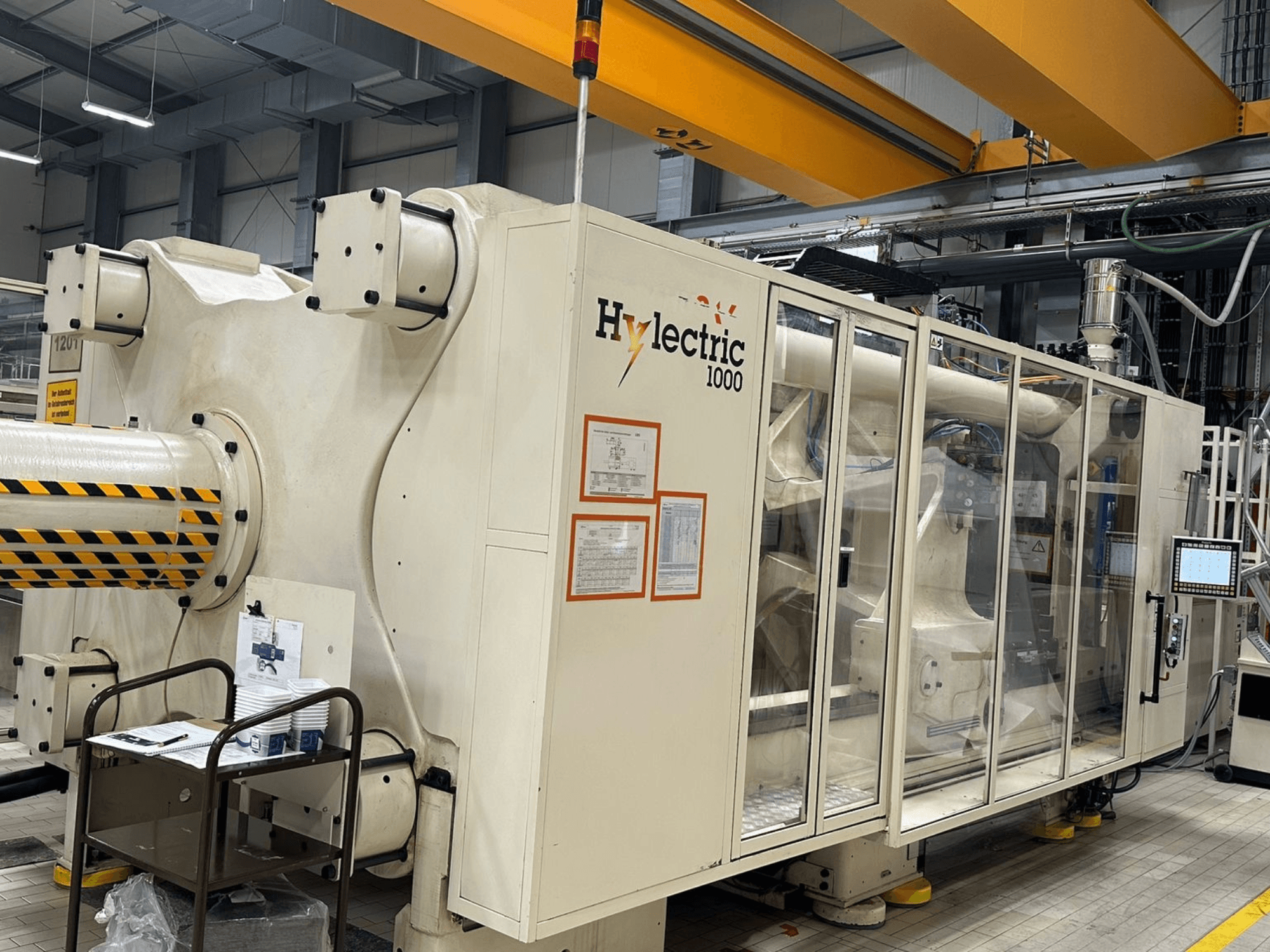

Electrical injection moulding machine manufactured in 2005. This Husky Hylelectric H1000 RS95/80 features a clamping force of 10,000 kN and a maximum injection pressure of 2280 bar. It has a total platen size of 2070 x 1840 mm and a screw diameter of 80 mm. If you are looking to get high-quality injection moulding capabilities, consider the Husky Hylelectric H1000 RS95/80 machine we have for sale. Contact us for further details.

Overview

brand: Husky
year: 2005
MODEL: Hylelectric H1000 RS95/80
production hours: 115857
application type: Injection Moulding
Location: Switzerland
machine type: Electrical Injection Moulding Machine

Technical Information - Husky Hylelectric H1000 RS95/80

Technical Specification

Clamping Force: 10000 kN

Additional Information

The cylinder was repaired for 6.3 TEuro and the yoke rollers were replaced for 11.6 TEuro.
Two machines available
Working Hours (SAP): 115,857.21 h
Working Hours (Physical Counter / Total): 137,414.83 h
Clamping Force: 10000 kN (1000 t)
Mold Installation Height min/max: 900 / 1300 mm
Opening Stroke min/max: 1330 / 2000 mm (Max Stroke on HMI Screen: 1474.8 mm)
Distance Between Tie Bars (H x V): 1550 x 1320 mm
Tie Bar Diameter: 240 mm
Total Platen Size: 2070 x 1840 mm
Centering Hole FS / BS: 200 / 200 mm
Ejector Type: Hydraulic
Ejector Stroke max: 250 mm
Water Circuits: 25
Take-out Handling / Stacking Unit: Brink BJ02-2025 Pro2023 (additional equipment)
Screw Diameter: 80 mm
Dosier Stroke max: 425 mm
Max Screw Speed: 298.0 rpm
Max Shot Weight: 1546 g
Max Injection Pressure: 2280 bar (2284.4 bar on HMI screen)
Max Injection Flow / Rate: 2136.0 cm³
Screw L/D Ratio: 25.0 : 1
Core Pulls Pneumatic: 2
Core Pulls Hydraulic: 2
Air Valve Quantity: 16
Interface for Handling Euro Map: 67
Software Version: 2010.3-005
Power Rating Machine / Connection Value: 120 kW
Total Machine Weight (Nameplate): 57,040 kg (57 t)
Electrical Supply Connection: 400 V, 633 A, 50 Hz (3 / N + PE)
Hydraulic Pressure Max: 18 MPa (180 bar)
Oil Volume: 1200 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
