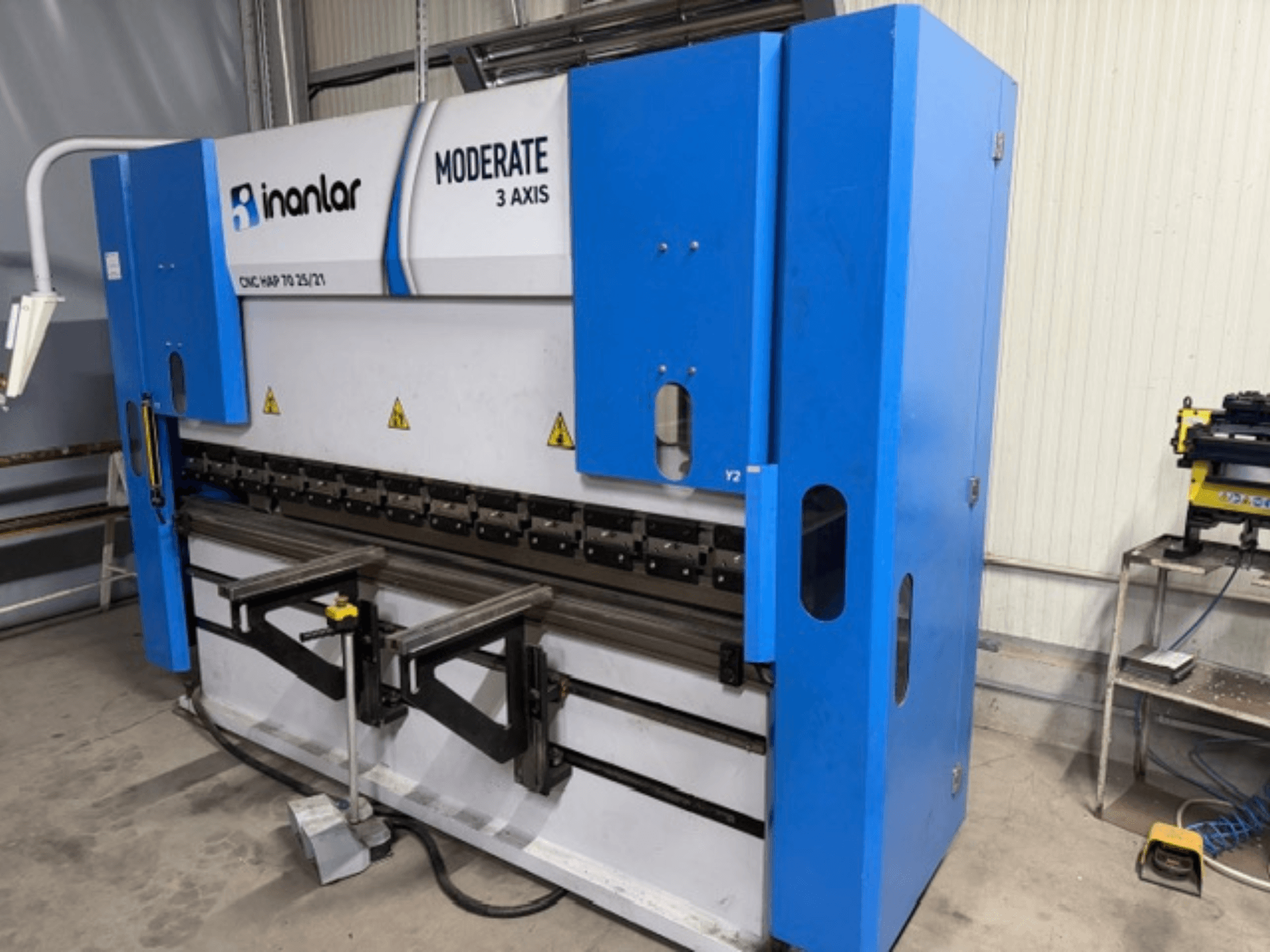

Inanlar - CNC HAP 70 25/21RO-BEN-INA-2018-00001

• Bending force: 70 tons

• Bending capacity (steel 400 N/mm² over full length): 3 mm

• Distance between uprights: 2,100 mm

Speeds

• Down speed: 90 mm/s

• Working speed (bending): 8 mm/s

• Return speed: 70 mm/s

Axes

• X-axis speed: 250 mm/s

Safety & equipment

• Finger protection system (spaced pads): 2 units

• Table supports: 2 units

Hydraulics & power

• Oil tank capacity: 180 liters

• Main motor power: 5.5 kW

Tooling / geometry

• Ram stroke: 185 mm

• Distance between prism table and ram: 380 mm

• Throat depth: 310 mm

• Table height: 800 mm

• Table width: 110 mm
