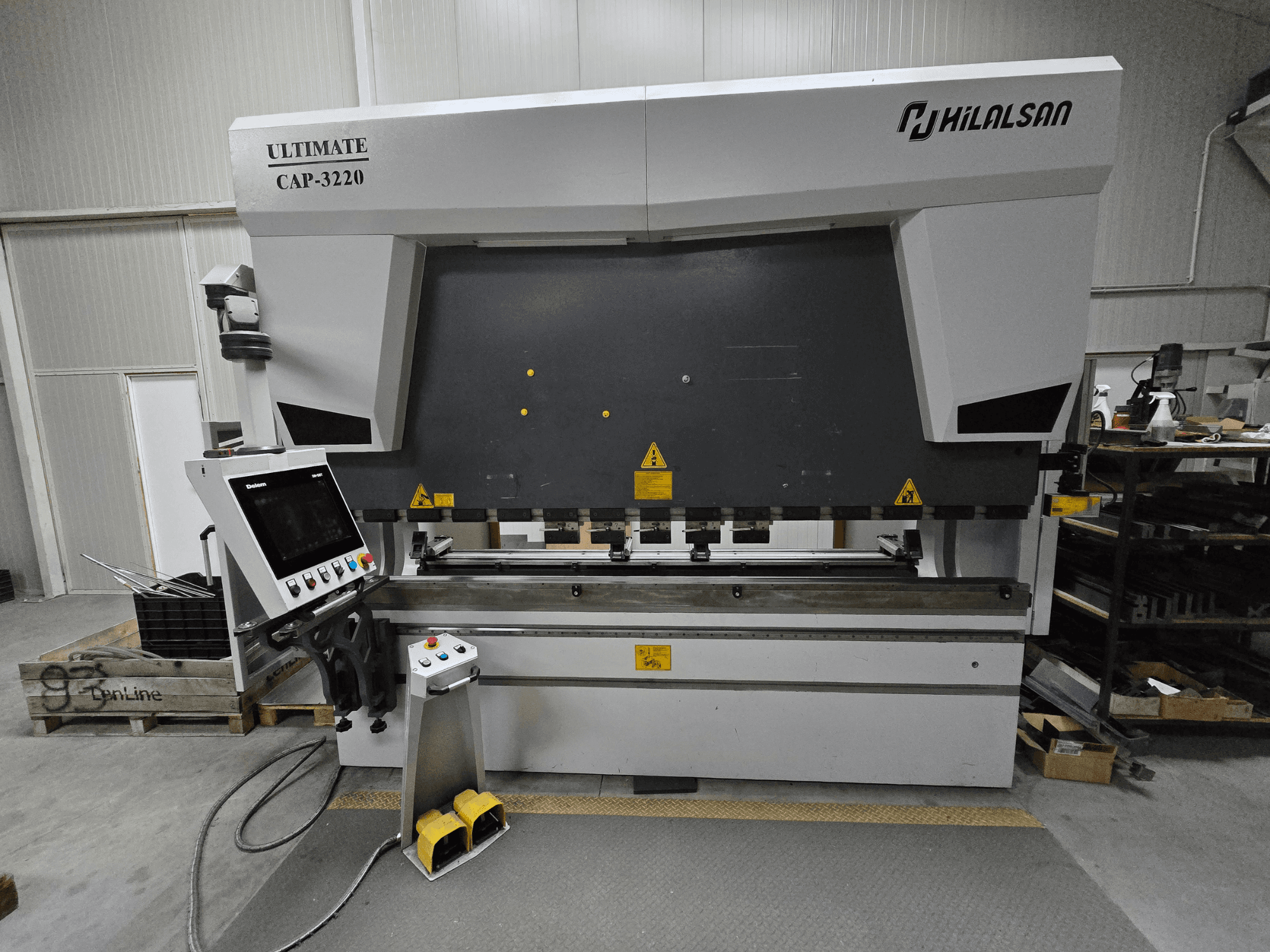

This HILALSAN ULTIMATE CAP-3220 hydraulic press was manufactured in 2021. It features a pressing force of 220 tons, a bending length of 3100 mm, and is equipped with a Delem DA-58 controller. With a stroke length of 265 mm and a throat depth of 410 mm, it offers robust performance for precise operations. Consider the opportunity to buy this HILALSAN ULTIMATE CAP-3220 hydraulic press. Contact us for more information about this machine.
Overview
- brand: HILALSAN
- year: 2021
- MODEL: ULTIMATE CAP-3220
- application type: Bending
- Location: Hungary
- machine type: Hydraulic Press
- control unit brand: DELEM
Technical Information - HILALSAN ULTIMATE CAP-3220
Control Unit
- Control Brand: DELEM
- Control Model: DA-58
Dimensions
- Machine Height: 2850 mm
- Machine Length: 3950 mm
Movement
- Number of Axes: 2
Technical Specification
- Bending Length: 3100 mm
- Pressing Force: 220 Kn
Additional Information
Distance between side frames (B): 2600 mm
Stroke length (C): 265 mm
Total installation height (D): 485 mm
Throat depth (E): 410 mm
Table height (F): 900 mm
Floor penetration depth (T): 0 mm
Table width (G): 108 mm
Front supports: 2 pcs
Y-axis approach speed: 120 mm/sec
Y-axis working speed: 10 mm/sec
Y-axis return speed: 120 mm/sec
X-axis travel speed: 350 mm/sec
X-axis travel range: 700 mm
Motor power: 22.5 kW
Oil tank capacity: 250 l
Backgauge: 4 rear stops
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
