GILARDI - Italy 3.25IT-BEN-GIL-2020-00001

Name: GILARDI Italy 3.25
Brand: GILARDI
SKU: IT-BEN-GIL-2020-00001
Price: 7877347 INR
Availability: InStock

Rs. 7,877,347

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used GILARDI Italy 3.25 - Press For Sale | gindumac.com

Show in original language

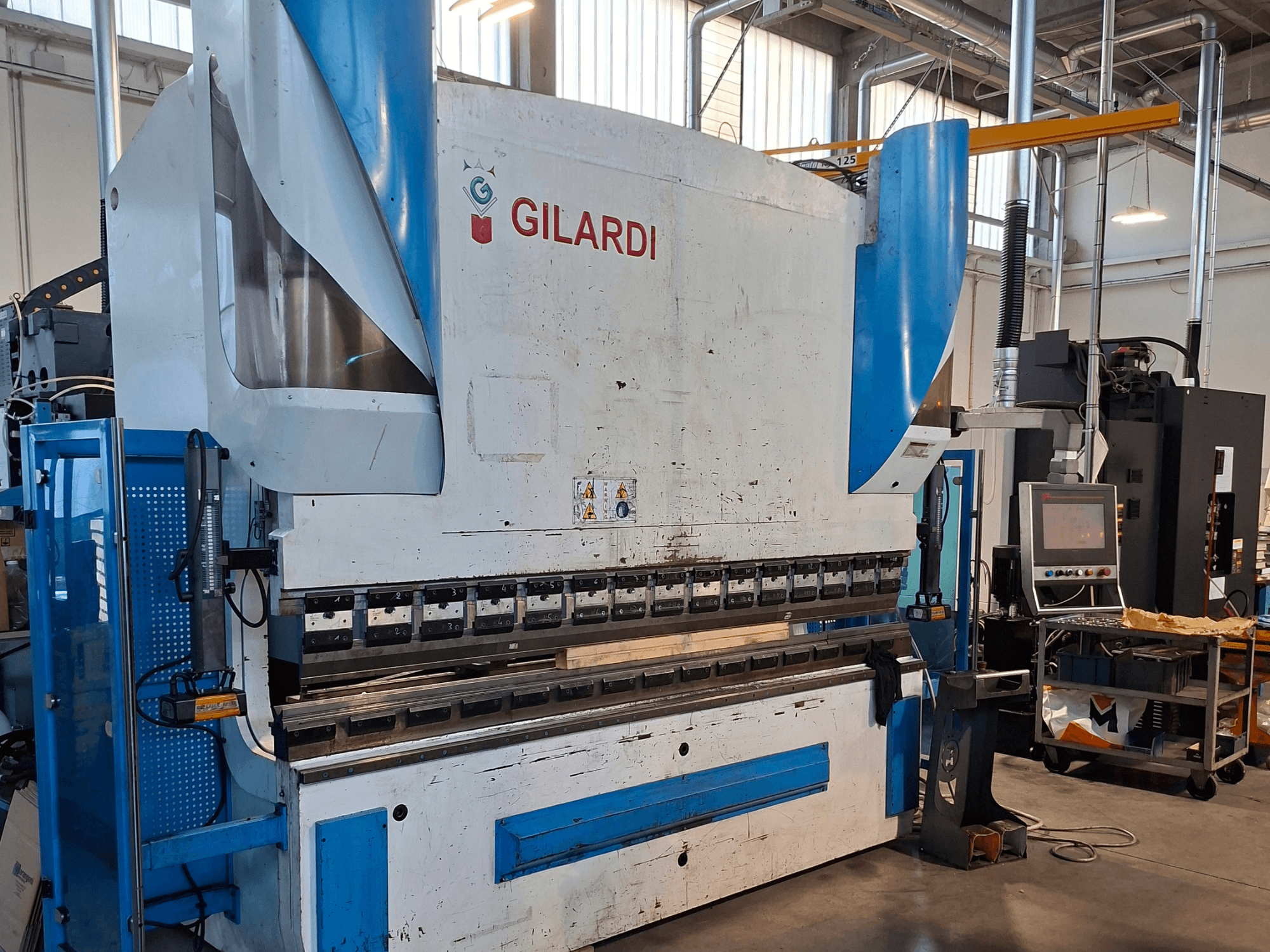

This hydraulic press manufactured in 2019 features a pressing force of 250 t and a working length of 3,100 mm. It is equipped with an ESA AUTOMOTION S640 touch screen CNC control and an electronic color graphical programmer. If you are looking to get high-quality pressing capabilities, consider the GILARDI Italy 3.25 machine we have for sale. Contact us for further details.

Overview

brand: GILARDI
year: 2020
MODEL: Italy 3.25
application type: Bending
Location: Italy
machine type: Hydraulic Press

Technical Information - GILARDI Italy 3.25

Dimensions

Machine Height: 3500 mm
Machine Length: 4000 mm
Machine Weight: 16500 kg

Movement

Number of Axes: 6

Technical Specification

Max. Stroke: 400 mm
Pressing Force: 1500 Kn

Additional Information

Programming system: Electronic color graphical programmer
Working length: 3,100 mm
Distance between columns: 2,700 mm
Throat depth: 500 mm
Table-to-ram distance: 730 mm
Fast approach speed: 150 mm/s
Working speed: 10 mm/s
Return speed: 160 mm/s
Motor power: 18.5 kW
Maximum pressure: 280 bar
Electrical: Three-phase, 400 V, 50 Hz, 36 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
