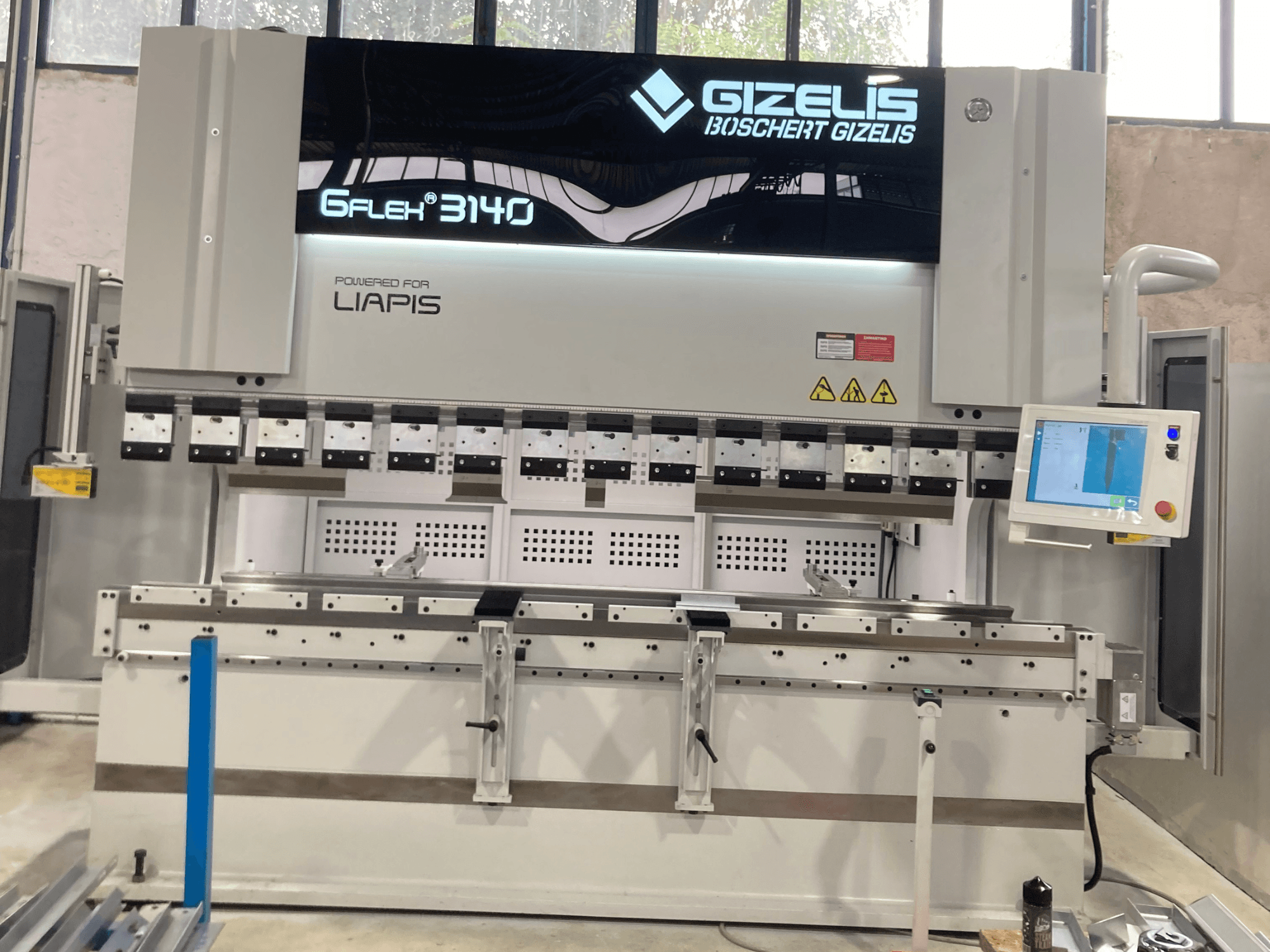

GIZELIS - G-FLEX 3140GR-BEN-GIZ-2023-00001

• Type: CNC hydraulic press brake

• Working length: 3,100 mm

• Max bending thickness: 6 mm at 3 meters

• Distance between uprights: 2,550 mm

• Throat depth: 400 mm

• Daylight opening: 515 mm

• Punch stroke: 250 mm

• Table width: 80 mm

• Fast approach speed: 0–180 mm/s

• Working speed: 0–20 mm/s

• Return/upstroke speed: 0–160 mm/s

• Max hydraulic pressure: 275 bar

• Main electric motor power: 15 kW

• CNC control: CybTouch 15 PS (15" touchscreen, 2D programming, automatic bend sequence detection)

• Axis configuration: Rear gauge with 2 controlled axes (X + R)

Additional equipment

• Two heavy-duty front support arms

• Front guides movable longitudinally

• Adjustable-height front supports

• Laser safety system AKAS-LC

• EU-compliant operator safety system

• Pneumatic folding/hemming table

• Mechanical grip for lower tools

• Tooling included:

  • Punch: Knife P120.35.R08, height 120 mm, angle 35°, radius R0.8, sections 3 x 835 mm + 1 x 805 mm

  • Bottom die/block: Model M460.R, V openings 16/22/35/50 mm, sections 3 x 835 mm + 1 x 805 mm, suitable up to 6 mm sheet metal
