ERMAK - CNC HAP 3100x300HU-BEN-ERM-2006-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used ERMAK CNC HAP 3100x300 For Sale | gindumac.com

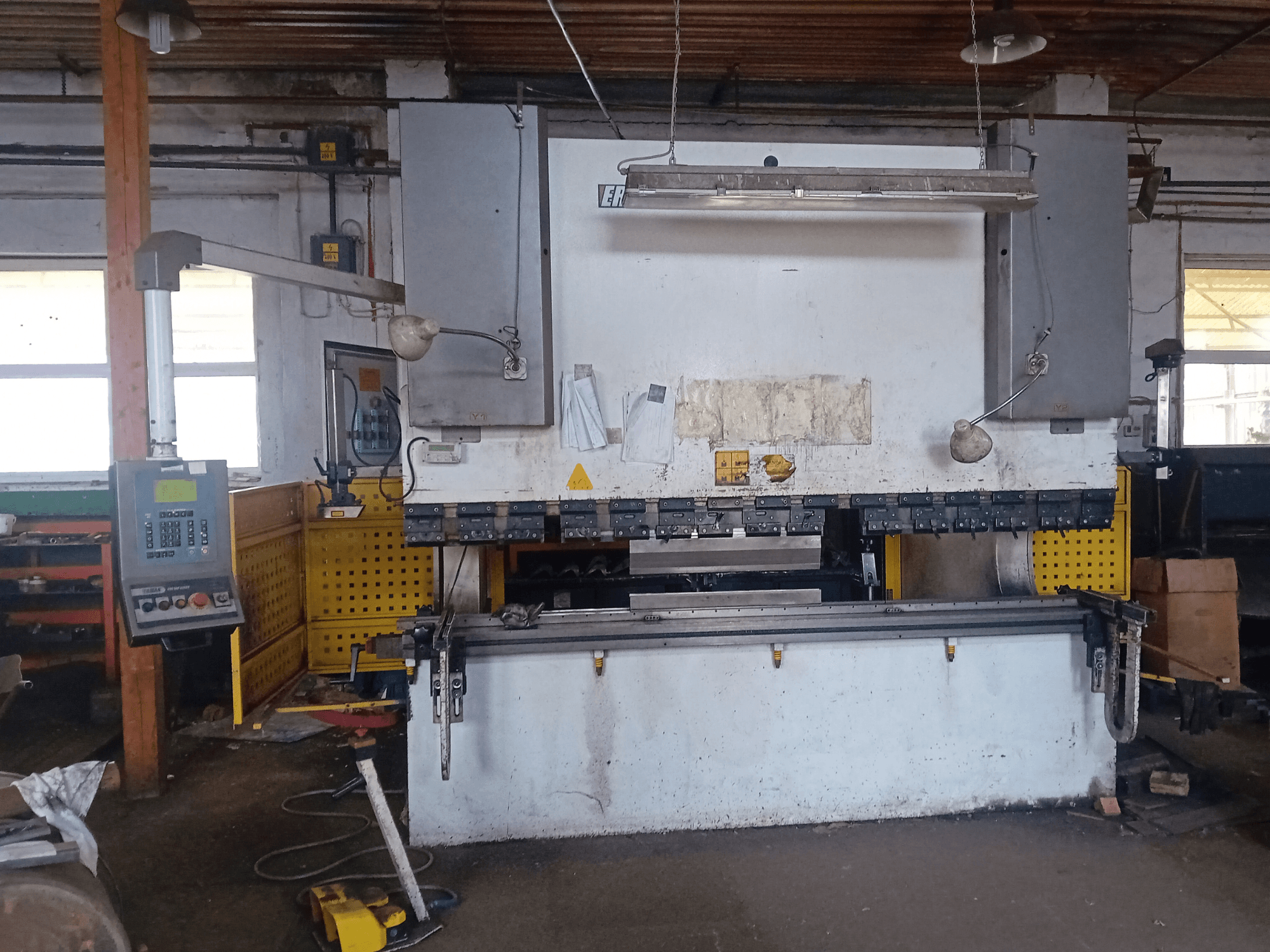

Hydraulic press manufactured in 2006. This ERMAK CNC HAP 3100x300 features a pressing force of 300 tons and a bending length of 3100 mm. It is equipped with a high-precision Cybelec CNC control system and a robust steel frame construction, making it suitable for large and thick sheet metal bending. If you are looking to get high-quality bending capabilities, consider the ERMAK CNC HAP 3100x300 machine we have for sale. Contact us for further details.
Overview
- brand: ERMAK
- year: 2006
- MODEL: CNC HAP 3100x300
- application type: Bending
- Location: Hungary
- machine type: Hydraulic Press
Technical Information - ERMAK CNC HAP 3100x300
Dimensions
- Machine Height: 3300 mm
- Machine Length: 4550 mm
- Machine Weight: 17000 kg
- Machine Width: 2450 mm
Movement
- Number of Axes: 3
Technical Specification
- Bending Length: 3100 mm
- Pressing Force: 3000 Kn
Additional Information
Control system: Cybelec CNC
Drive system: Hydraulic
Main motor power: 22 kW
Working speed: approx. 80–100 mm/s
Rapid approach speed: approx. 100 mm/s
Key features:
Heavy-duty industrial CNC press brake
High-precision Cybelec CNC control system
Robust and rigid steel frame construction
Suitable for large and thick sheet metal bending
Ideal for industrial production and heavy steel fabrication
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
