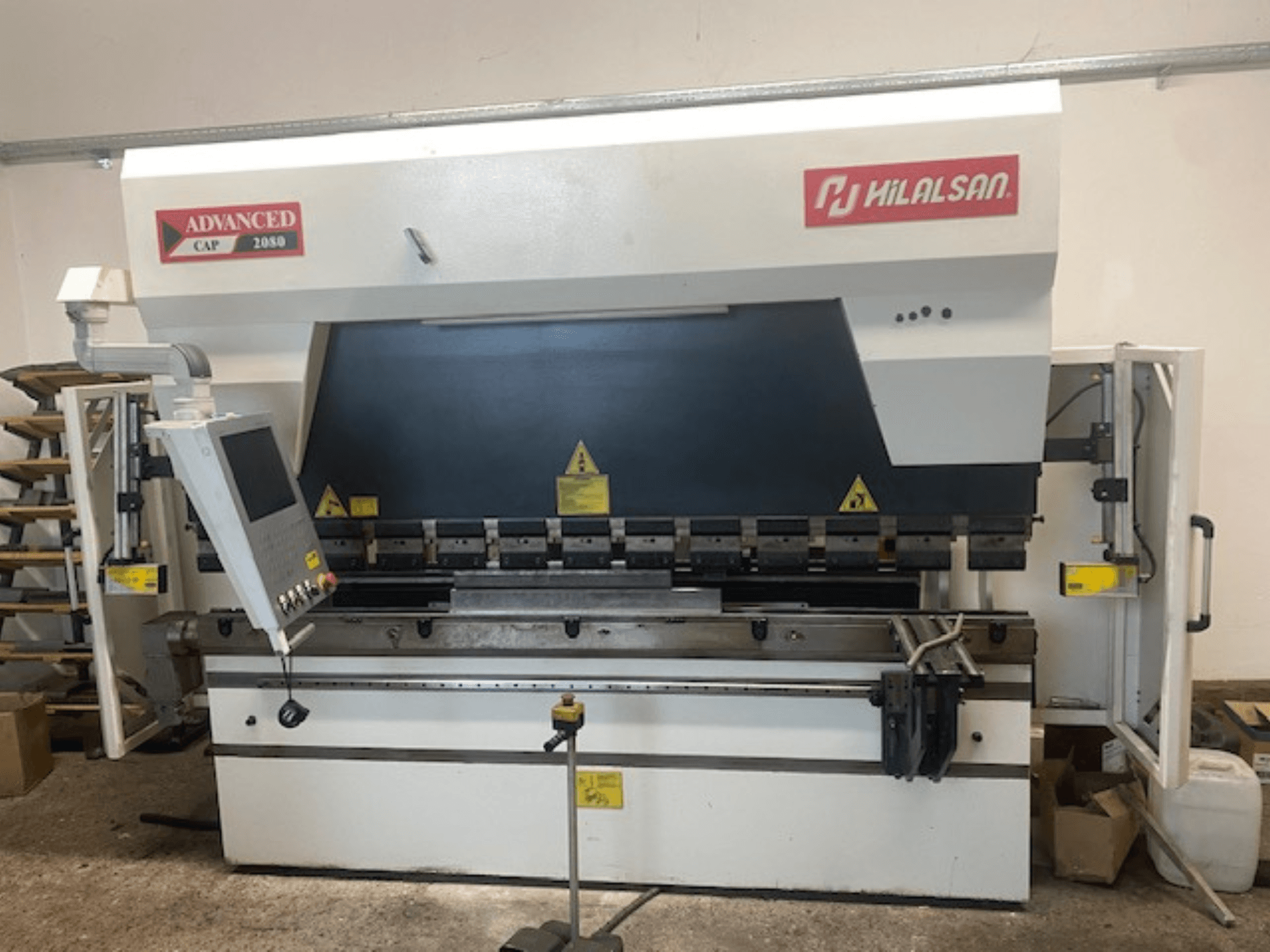

This 4-axis HILALSAN Cap 2080 hydraulic press was manufactured in 2018. It features a pressing force of 80 tons, a bending width of 2600 mm, and motor power of 7.5 kW. The machine includes a stroke length of 205 mm and a throat depth of 310 mm. If you are looking to get high-quality bending capabilities, consider the HILALSAN Cap 2080 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: HILALSAN
- year: 2018
- MODEL: Cap 2080
- application type: Bending
- Location: Hungary
- machine type: Hydraulic Press
Technical Information - HILALSAN Cap 2080
Dimensions
- Machine Height: 2650 mm
- Machine Length: 3400 mm
Movement
- Number of Axes: 4
- X-axis Travel: 500 mm
Technical Specification
- Pressing Force: 784.53 Kn
Additional Information
Bending width (A): 2600 mm
Stroke length: 205 mm
Opening: 410 mm
Throat depth: 310 mm
Distance between side frames (B): 1700 mm
Depth of side frames (C): 1850 mm
Table height (G): 900 mm
Table width: 108 mm
Approach speed: 140 mm/sec
Return speed: 110 mm/sec
R-axis travel: 200 mm (optional)
Maximum movement speed, X-axis: 250 mm/sec
Maximum movement speed, R-axis: 100 mm/sec
Condition: In good condition; first owner; single-shift use; to be handed over freshly serviced and adjusted
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
