Hyundai Wia KH63G

Photo Gallery

Hyundai Wia - KH63GPL-MIL-HYU-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hyundai Wia KH63G - 2014 - Horizontal Machining Center

Show in original language

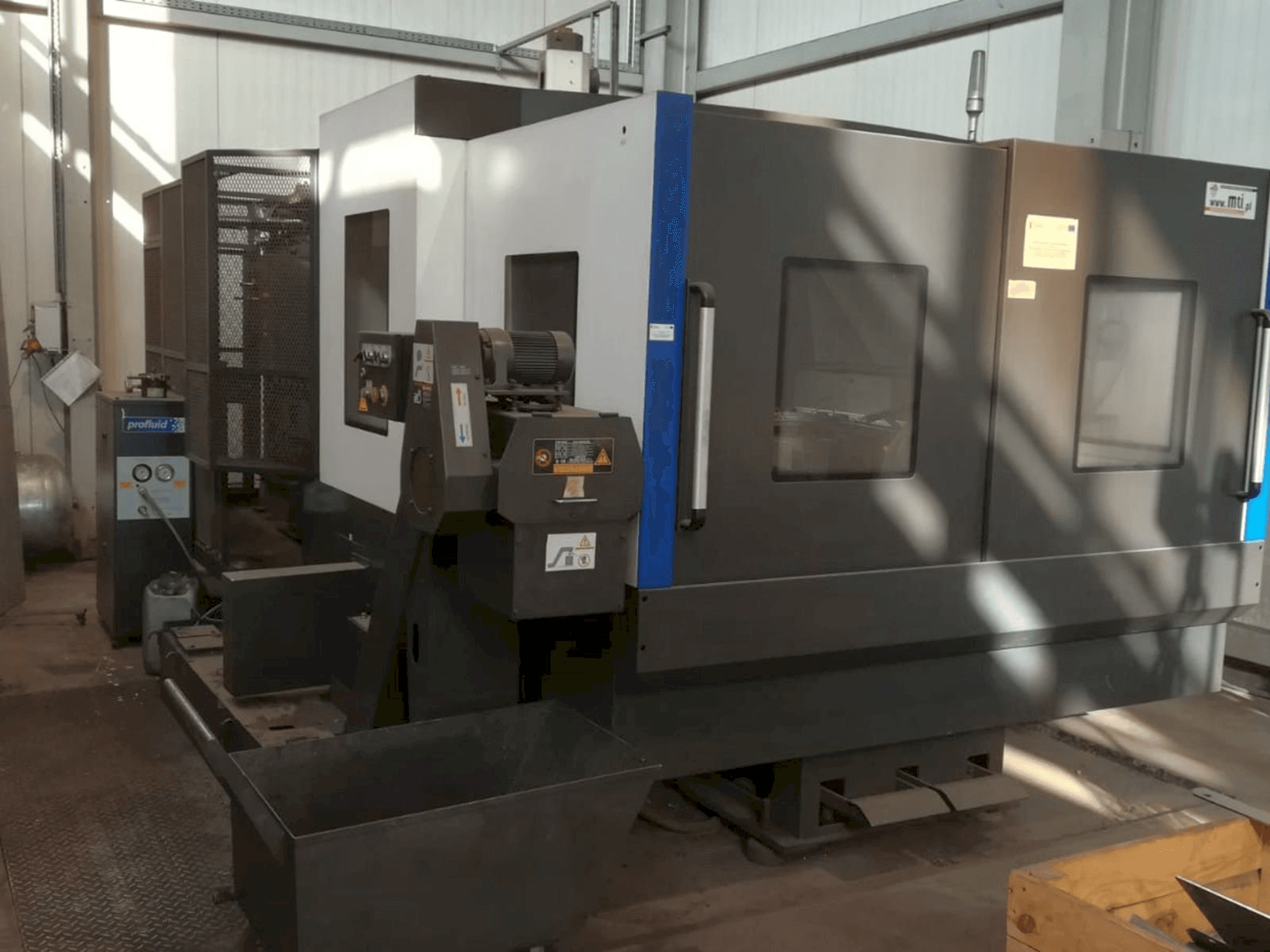

This Hyundai Wia KH63G Horizontal Machining Center was built in the year 2014 in South Korea. It has been on for 5500 hours, of which 3000 are spindle hours. It is operated through a FANUC 31 control unit. This 4 axis machine comes with a spindle speed range 11-8000 rpm. It is in very good working conditions, ready for test and with its full documentation available.

Overview

brand: Hyundai Wia
year: 2014
MODEL: KH63G
production hours: 5500
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Hyundai Wia KH63G

Control Unit

Control Brand: FANUC
Control Model: 31

Dimensions

Machine Depth: 5320 mm
Machine Height: 3106 mm
Machine Weight: 14000 kg
Table Length: 630 mm
Table Load: 1000 kg
Table Width: 630 mm

Movement

Number of Axes: 4
X-axis Travel: 950 mm
Y-axis Travel: 825 mm
Z-axis Travel: 760 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 8000 RPM
Taper Size: ISO 50
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in very good working condition.
Ready for test.
Full documentation available.

Technical Machine Benefits

No. Of cnc controlled axles: 4 pcs
No. Of pallets: 2 pcs
Max workpiece height: 875 mm
Max. Feed rate in x/y/z: 333 mm/s
Apc no. Of pallet : 2 pcs
Pallet change time: 26 s
Apc type: shuttle

Extra Information

There are no tooling included in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
