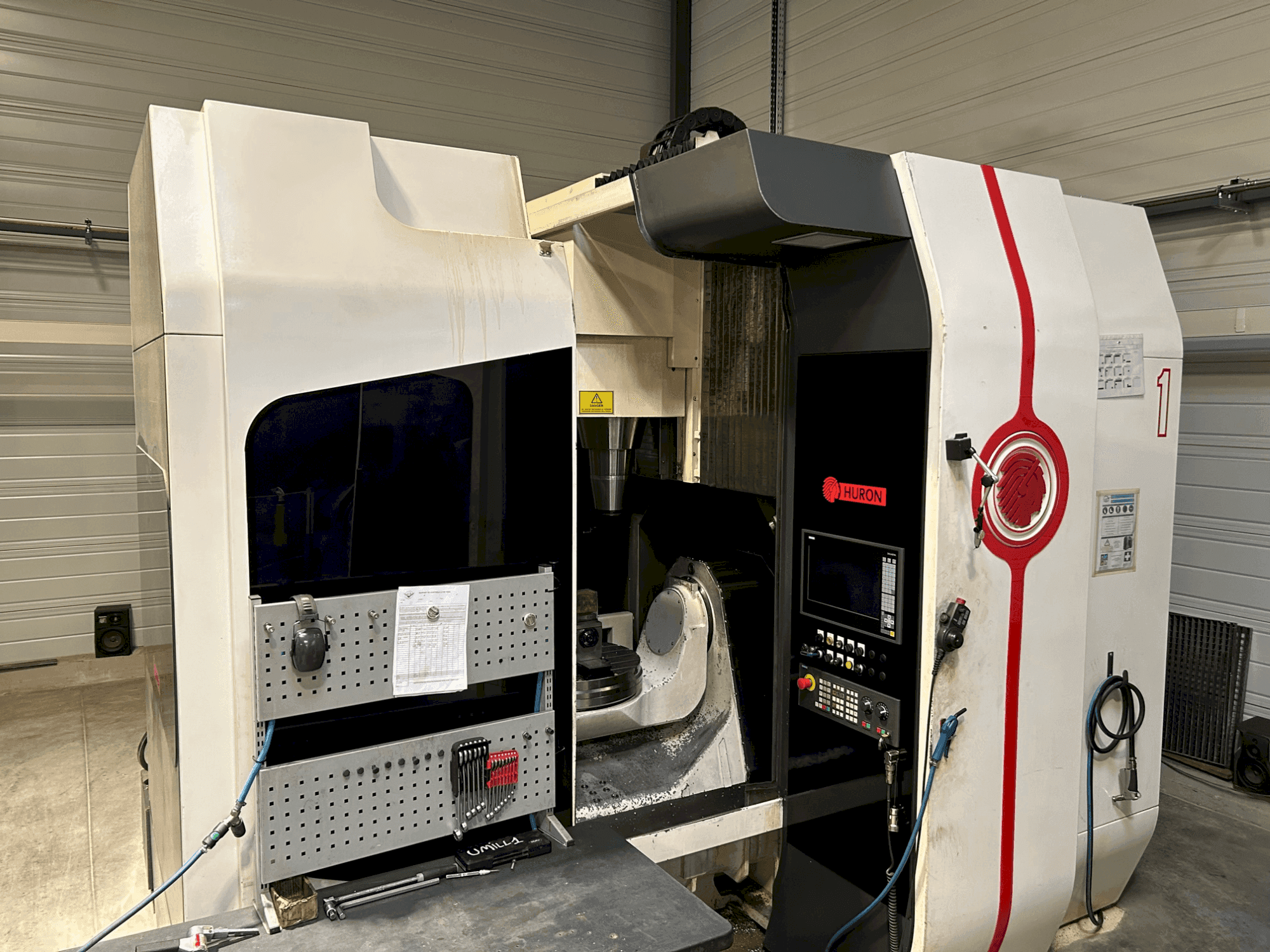

Front view of Huron UMILL 6 machine
Front view of Huron UMILL 6 machine

Huron - UMILL 6FR-MIL-HUR-2018-00001

Rs. 9,590,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Huron UMILL 6 was manufactured in 2018. It features a Siemens 840D SL CNC, X Y Z travel of 700 x 740 x 550 mm, and a rotation speed of 10,000 rpm. The spindle power is 18 kW with an ISO 40 taper. It includes a 30-tool changer, chip conveyor, and a table diameter of 630 mm. If you are looking to get high-quality milling capabilities, consider the Huron UMILL 6 machine we have for sale. Contact us for more information.

Overview

  • brand: Huron
  • year: 2018
  • MODEL: UMILL 6
  • application type: Milling
  • Location: France
  • machine type: Universal Machining Centre
  • control unit brand: SIEMENS

Technical Information - Huron UMILL 6

General Data

  • Measurements width: 4170 mm
  • Measurements depth: 4410 mm
  • Measurements height: 3540 mm
  • Machine weight: 12250 kg

Control Unit

  • Brand: SIEMENS
  • Model: 840D SL

Main drive

  • Spindle speed range: 10000 1/MIN
  • Tool taper: ISO 40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 700 mm
  • Y-AXIS Movement: 740 mm
  • Z-AXIS Movement: 550 mm

Additional Information

  • A-axis travel: +20° / -110°

  • C-axis: 360,000 positions

  • Table diameter: 630 mm

  • Tool changer: 30 tools

  • Through-spindle coolant: 20 bar, 25 l/min

  • Linear scales on X/Y/Z

Additional equipment

  • Chip conveyor

  • BLUM probes: TC54-20 (tool) and TC52 (part)

  • Portable electronic handwheel

  • Wash-down gun

  • Air nozzle blow-off

  • Isolation transformer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
