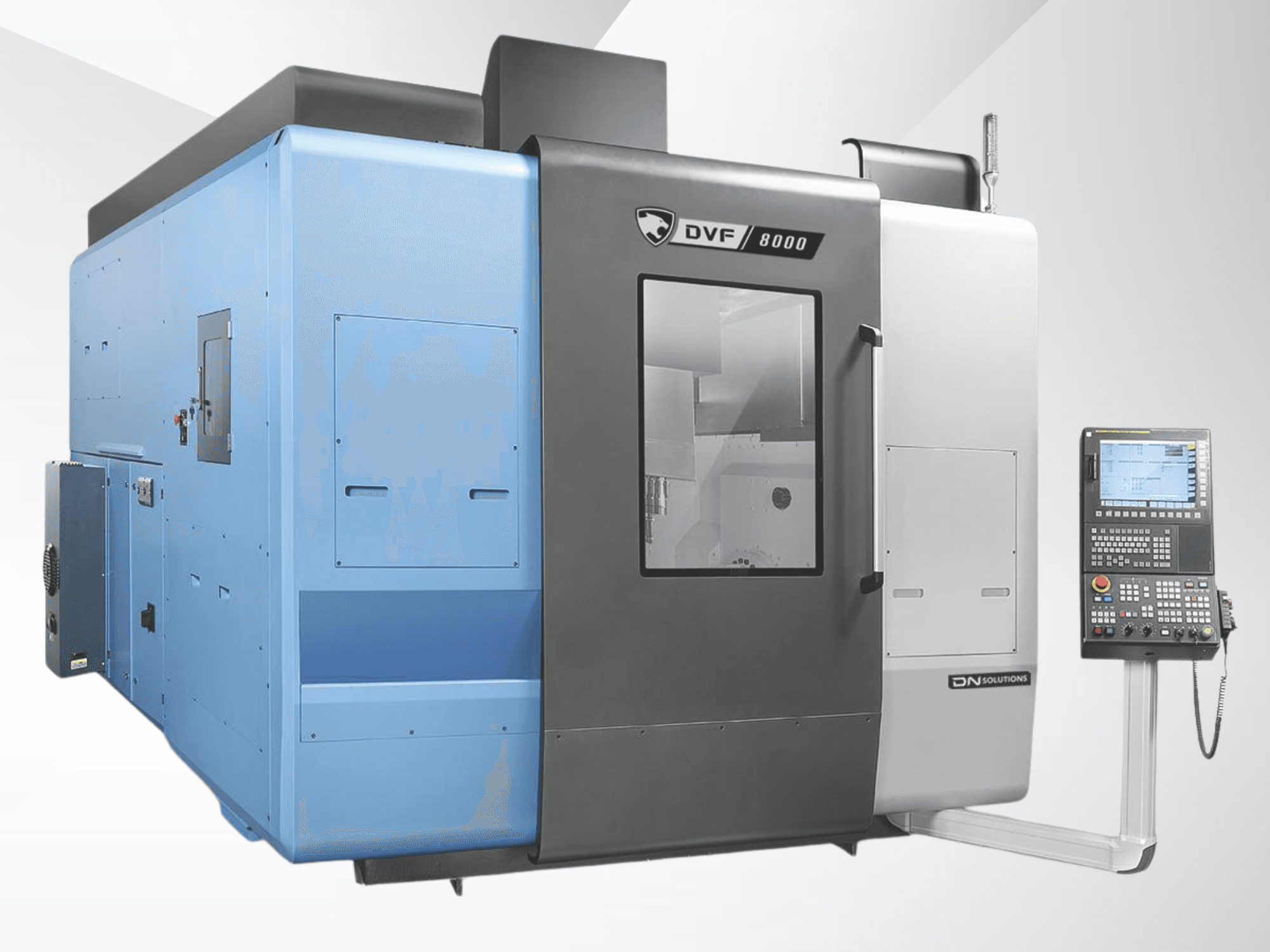

This 5-axis DN SOLUTIONS DVF 8000 was manufactured in 2022. It features impressive X-axis travel of 1,020 mm, Y-axis travel of 850 mm, and Z-axis travel of 805 mm. The machine includes a maximum workpiece diameter of 1,000 mm and a spindle speed of 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the DN SOLUTIONS DVF 8000 universal machining centre we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2022
- MODEL: DVF 8000
- application type: Milling
- Location: Portugal
- machine type: Universal Machining Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS DVF 8000
Control Unit
- Control Brand: FANUC
- Control Model: 31i-b5
Dimensions
- Table Load: 800 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1020 mm
- Y-axis Travel: 850 mm
- Z-axis Travel: 805 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 18000 RPM
- Tool Stations: 40
Additional Information
15" color touchscreen display
CE certified
Metric configuration
Power supply: 3-phase AC 380V / 50Hz
Number of axes: 5 (X, Y, Z, A, C)
Simultaneous 5-axis machining
Absolute feedback system (absolute pulse coder on A- and C-axis)
Table diameter: 800 mm
Maximum workpiece diameter: 1,000 mm
Maximum workpiece height: 630 mm
Spindle motor power: 22 / 18.5 kW
Spindle taper: HSK-A63
Tool holder type: HSK63A
Flood coolant pump: 2.5 kW / 0.44 MPa / 100 L/min
Through-spindle coolant: 4.0 kW / 2.0 MPa (20 bar)
Tool load monitoring
Portable MPG handwheel
Automatic power off
Program storage: 10,240 m (4 MB)
1,000 program capacity
400 tool offset pairs
48 work coordinate systems
Large capacity memory: 2 GB
Data server & memory card: 2 GB
Embedded Ethernet
iHMI easy operating system (EZI & Machining Cycle)
DSQ1 (AICC II – 200 blocks)
Additional equipment
Hinged belt chip conveyor (rear side)
Cyclone filter system
Renishaw probe ready (RMI-Q) + software
External power transformer
Electrical line filter
Machine lifting hooks
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
