➤ Used HAAS UMC-1000SS For Sale | gindumac.com

Show in original language

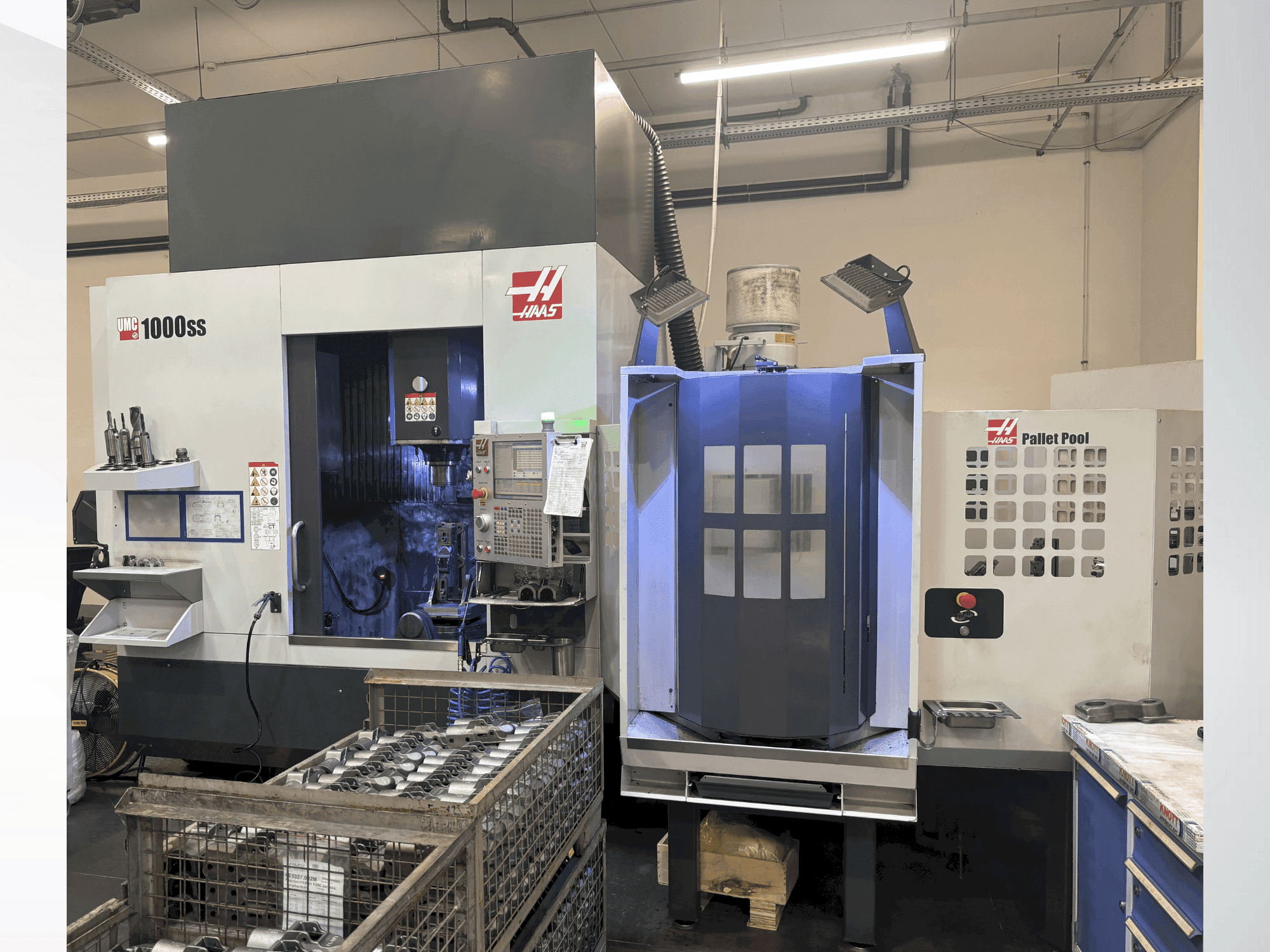

This 5-axis HAAS UMC-1000SS was manufactured in 2020. It features a large working envelope with X, Y, and Z axes measuring 1016 mm, 635 mm, and 635 mm respectively. Ideal for complex geometries and multi-sided machining. Consider the opportunity to buy this HAAS UMC-1000SS universal machining centre. Contact us for more information.

Overview

brand: HAAS
year: 2020
MODEL: UMC-1000SS
application type: Milling
Location: Hungary
machine type: Universal Machining Centre
availability: Immediately

Technical Information - HAAS UMC-1000SS

Main drive

Spindle speed range: 15000 RPM 1/MIN

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 635 mm
Z-AXIS Movement: 635 mm

Table

Min distance between vertical spindle and table: 102 mm
Max distance between vertical spindle and table: 737 mm

Additional equipment

- Chip Conveyor with Belt Drive
- Export Packaging
- 8-Station Pallet Pool for UMC
- UMC Spare Tool Storage (1 unit)
- Through-Tool Air Blast (TAB)
- Auxiliary Coolant Filter
- Chip Tray Filter Kit

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Standard program memory: 1 gb/ coolant tank capacity: 55 gallons/ cnc control cabinet cooler/ dynamic work offsets and tool center point control (dwo/tcpc)/ fast power-failure detection module/ ethernet interface/ haasconnect: remote monitoring/ haasdrop: wireless file transfer
- - Second home position/ high-speed machining (hsm)/ media display via m-code (m130)/ remote jog handle with touchscreen/ rotary encoders/ synchronized tapping/ safe run (safety restart feature)/ 1-year standard warranty
- - Enclosure with mist extraction preparation/ variable coolant pressure/ wi-fi connectivity to haas control/ wireless intuitive probing system (wips)/high-speed side-mount tool changer – 50+1 tools/ ct (sk) 40 spindle taper
- - Through-spindle coolant (tsc): 69 bar (1000 psi)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
