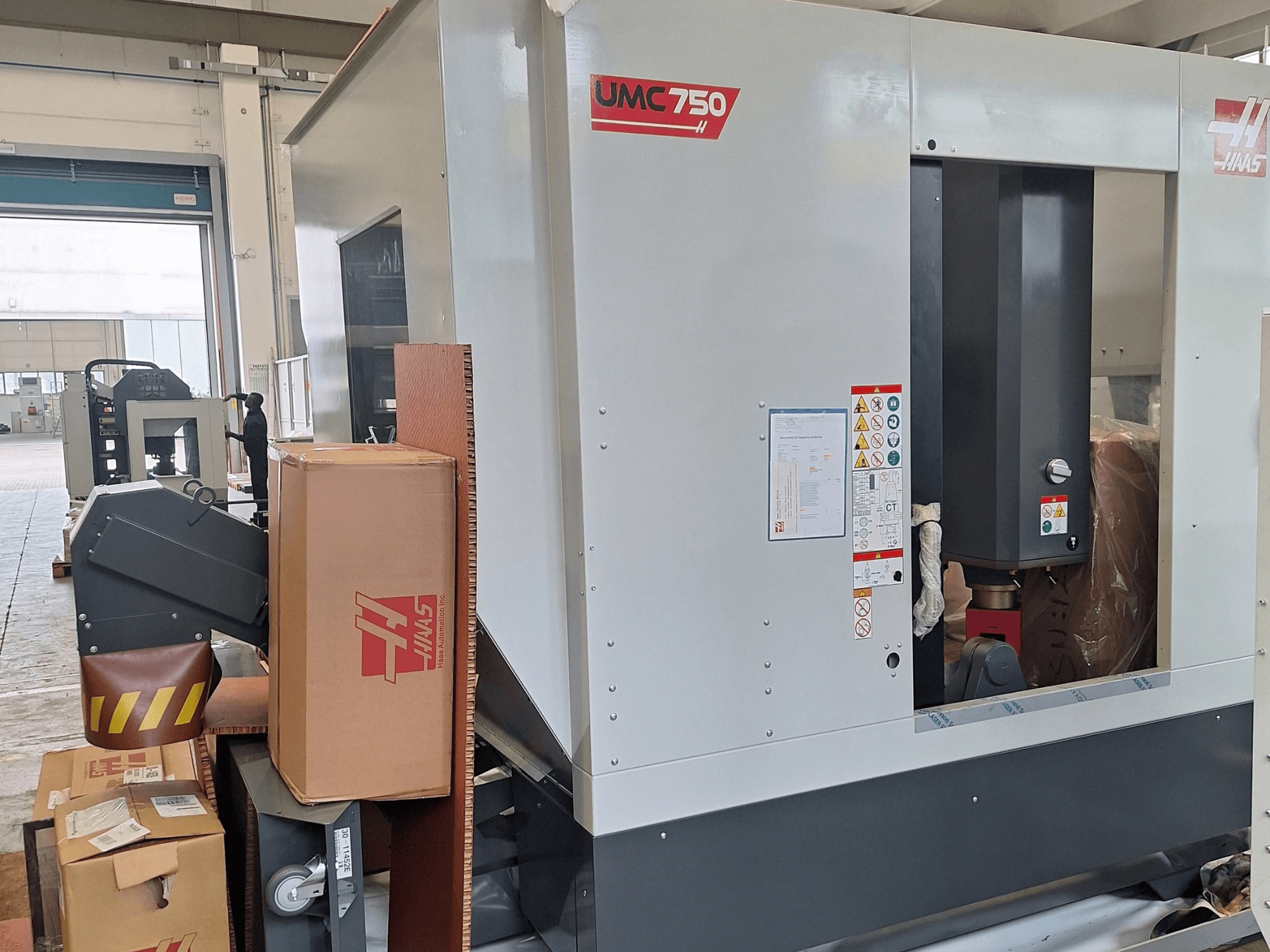

HAAS - UMC-750IT-MIL-HAA-2025-00001

Working Hours: 0

Showroom Machine

Spindle Nose to Platter (~ max): 24.0 in / 610 mm

Spindle Nose to Platter (~ min): 4.0 in / 102 mm

Spindle Max Torque: 90.0 ft-lbf @ 2000 rpm / 122.0 Nm @ 2000 rpm

Spindle Drive System: Inline Direct-Drive

Spindle Taper: CT40 | BT40 | HSK-A63

Spindle Bearing Lubrication: Air / Oil Injection

Spindle Cooling: Liquid Cooled

B Axis (Tilt) Travel: +120° to -35°

B Axis Max Speed: 170 °/sec

B Axis Continuous Torque: 2240 ft-lbf / 3037 Nm

B Axis Brake Torque: 2000 ft-lbf / 2712 Nm

C Axis (Rotation) Travel: 360°

C Axis Max Speed: 179 °/sec

C Axis Continuous Torque: 1854 ft-lbf / 2514 Nm

C Axis Brake Torque: 900 ft-lbf / 1220 Nm

Max Part Swing: 27.0 in / 686 mm

Platter Diameter: 19.70 in / 500 mm

Max Weight on Platter: 660 lb / 300.0 kg

Max Weight on Platter w/ Pallet Pool: 200 lb / 90.7 kg

T-Slot Width: 0.626 in to 0.630 in / 15.90 mm to 16.00 mm

Number of Std T-Slots: 7

T-Slot Center Distance: 2.48 in / 63 mm

Max Cutting Feedrate: 833 ipm / 21.2 m/min

Rapid Feedrate (X, Y, Z): 1200 ipm / 30.5 m/min

Max Thrust X / Y: 3300 lbf / 14680 N

Max Thrust Z: 4050 lbf / 18015 N

Tool Changer Type: Side-Mount Tool Changer (SMTC)

Tool Capacity: 30+1

Max Tool Diameter (full): 2.5 in / 64 mm

Max Tool Diameter (adjacent empty): 5.0 in / 127 mm

Max Tool Length: 12.00 in / 305 mm

Tool-to-Tool Time (avg): 1.80 s

Chip-to-Chip Time (avg): 2.40 s

Coolant Capacity: 55 gal / 208 L

Air Required: 4 scfm @ 100 psi / 113.0 L/min @ 6.9 bar

Air Pressure Min: 80 psi / 5.5 bar

Electrical Input AC Voltage (3 Phase): 220 VAC (70 A) / 440 VAC (35 A)

Shipping Weight (Standard): 14250 lb / 6463.8 kg
