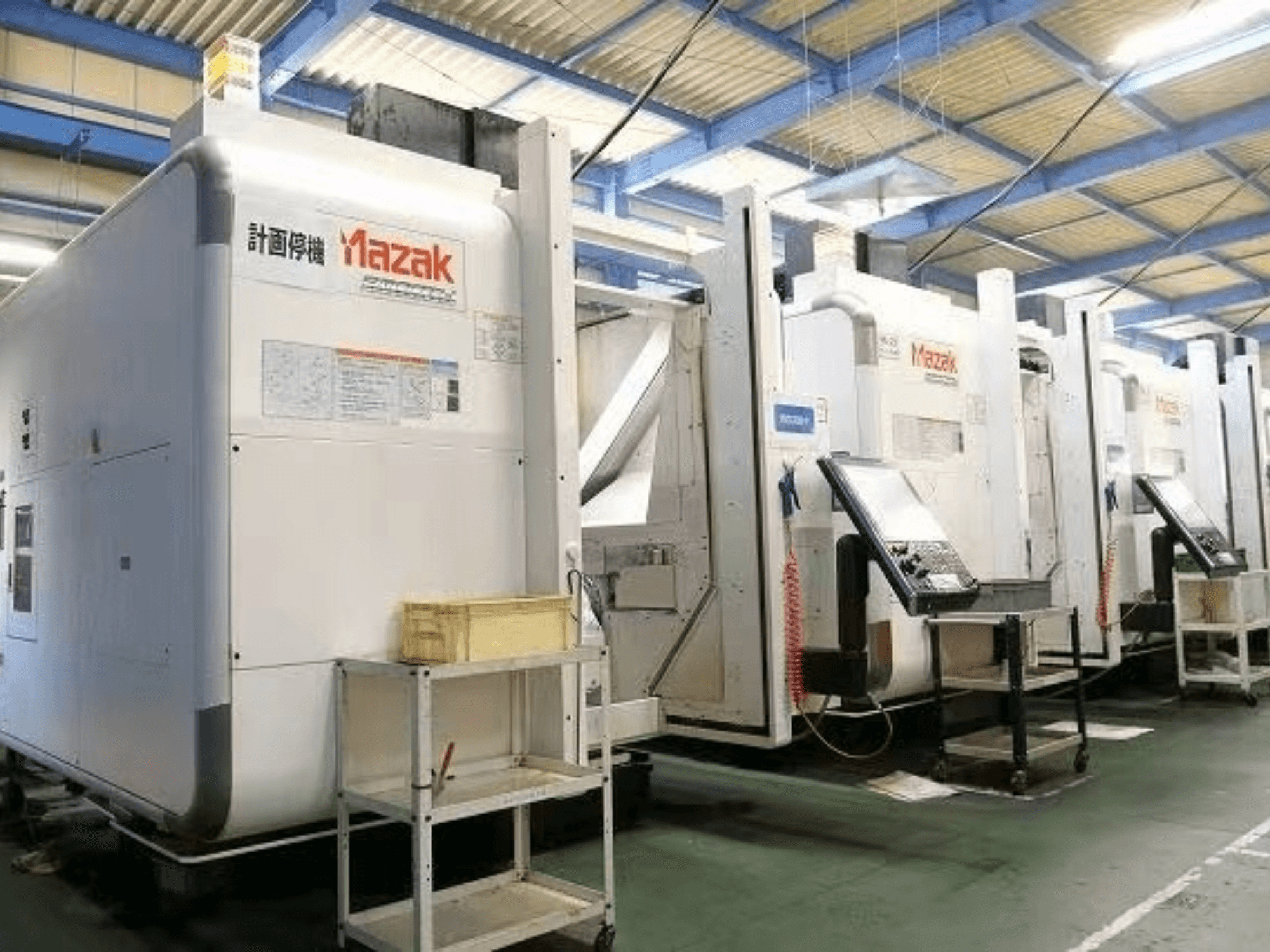

Mazak CNC machines in a factory setting, side view showcasing control panels and labels on white bodies.
Mazak CNC machines in a factory setting, side view showcasing control panels and labels on white bodies.

Mazak - Variaxis i-500JP-MIL-MAZ-2019-00001

Rs. 16,221,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Mazak Variaxis i-500 was manufactured in 2019, featuring a spindle speed of up to 12,000 rpm and a tool magazine capacity of 30 tools. It supports workpieces up to Ø500 mm by 350 mm and has a table load capacity of 300 kg. Consider the opportunity to buy this Mazak Variaxis i-500 universal machining centre. Contact us for more information about this machine.

Overview

  • brand: Mazak
  • year: 2019
  • MODEL: Variaxis i-500
  • application type: Milling
  • Location: Japan
  • machine type: Universal Machining Centre

Technical Information - Mazak Variaxis i-500

Main drive

  • Spindle speed range: 35 – 12000 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 350 mm
  • Y-AXIS Movement: 550 mm
  • Z-AXIS Movement: 510 mm

Table

  • Table load: 300 kg

Additional Information

  • Availability: 15 units

  • Maximum workpiece dimensions: Ø500 mm × 350 mm height

  • A-axis travel: −120° to +30° (0.0001° resolution)

  • C-axis travel: ±360° (0.0001° resolution)

  • Distance spindle–table top (horizontal): 50–560 mm

  • Distance spindle–table center (vertical): 40–550 mm

  • Table dimensions: Ø500 mm × 400 mm width

  • Spindle taper: 724 taper No. 40

  • Spindle bearing inner diameter: 80 mm

  • Tool magazine capacity: 30 tools

  • Special specifications:

    • Oil station fixture mounting: 6.9 MPa, 4 ports, center 500 × 400 T-groove table; Ports: 1P Clamp, 1P Uncouple, 2P Seat

    • Front door with automatic opening/closing and area sensor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
