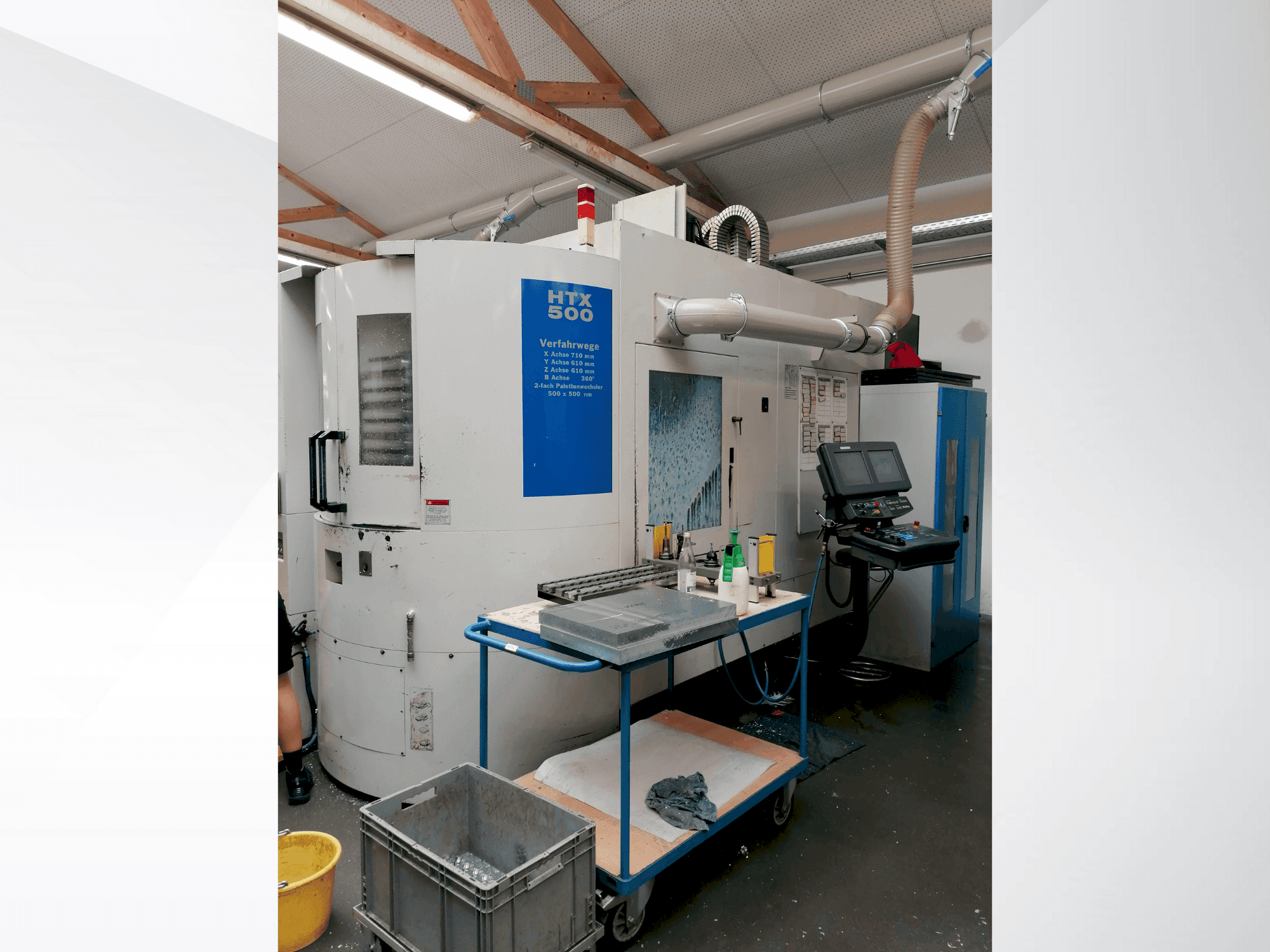

Front view of Hurco HTX 500  machine

Hurco - HTX 500DE-MIL-HUR-2008-00003

Rs. 1,738,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Hurco HTX 500 horizontal machining center was manufactured in 2008. It features a robust 500 mm × 500 mm working surface with a maximum load capacity of 500 kg. The spindle operates at speeds up to 12000 RPM, powered by an 18 kW motor. It includes a 60-station automatic tool changer and rapid traverse rates of 32,004 mm/min for efficient machining. Ideal for handling complex, multi-sided parts. Reach out for further details regarding this horizontal machining center.

Overview

  • brand: Hurco
  • year: 2008
  • MODEL: HTX 500
  • production hours: 43892
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Immediately

Technical Information - Hurco HTX 500

General Data

  • Measurements width: 2450 MM
  • Measurements height: 2800 MM
  • Machine weight: 13000 KG

Main drive

  • Spindle speed range: 0-12000 1/MIN
  • Spindle motor power: 18 kW (Peak), 11 kW (Continuous)
  • Tool taper: #40 Taper

Movement

  • X-AXIS Movement: 710 mm
  • X-AXIS Rapid traverse: 32,004 mm/min
  • Y-AXIS Movement: 610 mm
  • Y-AXIS Rapid traverse: 32,004 mm/min
  • Z-AXIS Movement: 610 mm
  • Z-AXIS Rapid traverse: 32,004 mm/min

Table

  • Outer length: 500 mm
  • Outer width: 500 mm
  • Table load: 500 kg

Tools

  • Number of stations: 60
  • Max weight: 10 kg
  • Max tool diameter: 80 mm

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Large tool capacity with 60 stations
      • - Coolant tank capacity: 580 liters
      • - Machining primarily 90% aluminium
      • - Torque for x, y, z, b axes: 28. 48 nm / 71. 19 nm
      • - Peak thrust for x, y, z axes: 23. 8 kn
      • - Positioning accuracy: +/-0. 0001"
      • - Repeatability: +/-0. 0025 mm

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
