HULLER HILLE NBH 70
HULLER HILLE - NBH 70
1985
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Hueller Hille NBH 70 Horizontal Machining Center

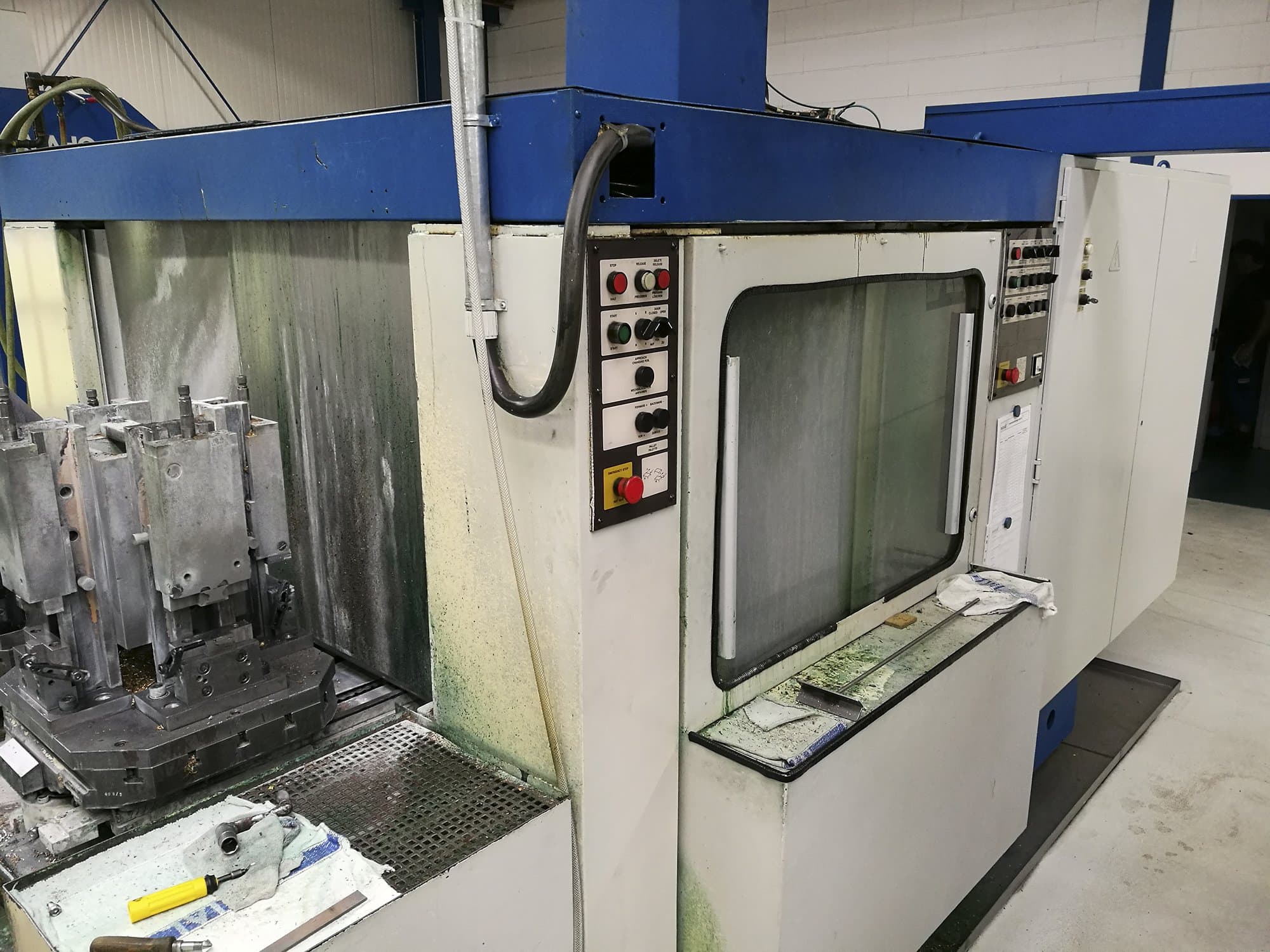

This Hueller Hille NBH 70 Horizontal Machining Center from 1985 was manufactured in Germany. Operated through a SIEMENS SINUMERIK System 8 Control unit, this machine has mainly worked with steel during the past.
Overview
- brand: HULLER HILLE
- year: 1985
- MODEL: NBH 70
- application type: Milling
- Location: Germany
- machine type: Machining centers (horizontal)
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: DE-MIL-HUE-1985-00001
Technical Information
General Data
- Measurements width: 4040 mm
- Measurements depth: 2300 mm
- Measurements height: 2920 mm
- Machine weight: 8700 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK System 8
- CNC main language: German
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 25-4000 1/min
Movement
- X-AXIS Movement: 630 mm
- X-AXIS Rapid traverse: 15000 mm/min
- Y-AXIS Movement: 500 mm
- Y-AXIS Rapid traverse: 15000 mm/min
- Z-AXIS Movement: 550 mm
- Z-AXIS Rapid traverse: 15000 mm/min
Table
- Outer length: 500 mm
- Outer width: 400 mm
- Number of tslots: 5
- Distance between: 80 mm
Tools
- Max weight: 15 kg
- Max tool diameter: 110 mm
- Max tool length: 320 mm
Media
- Main electronic connection: 380 V
- Power consumption: 36 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
