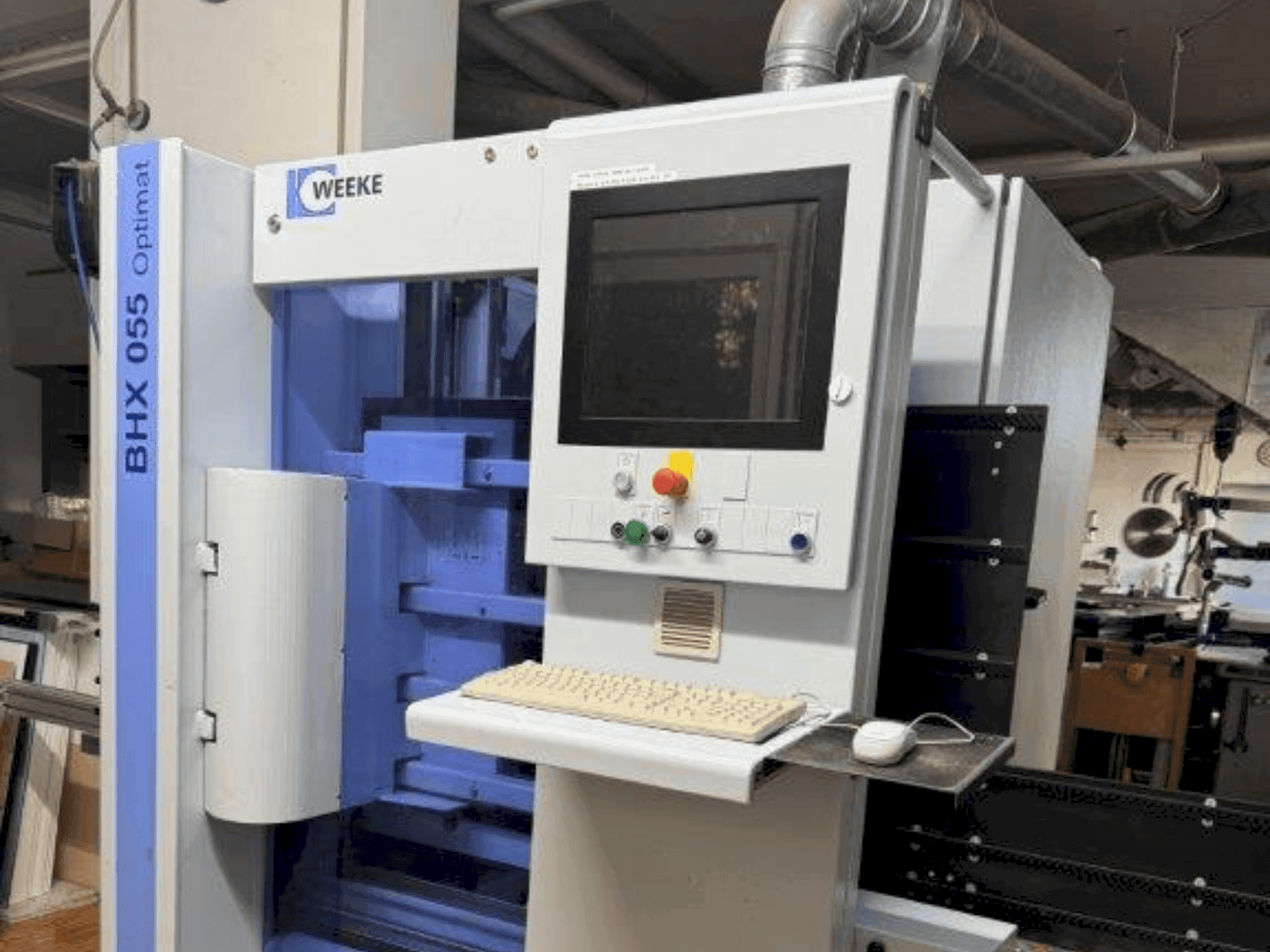

Front view of HOMAG WEEKE BHX 055 machine
Front view of HOMAG WEEKE BHX 055 machine

HOMAG WEEKE - BHX 055DE-CNC-HOM-2012-00001

Rs. 2,155,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HOMAG WEEKE BHX 055 was manufactured in 2012. It features a vertical drilling gear with high-speed selectable spindles and a grooving saw integrated into the drilling head. The milling motor ranges from 6,000 to 18,000 rpm. It includes a Power Control PC 85 with a 17-inch TFT screen and Woodwop software for CNC program creation. Consider the opportunity to buy this HOMAG WEEKE BHX 055 CNC processing center. Contact us for more information.

Overview

  • brand: HOMAG WEEKE
  • year: 2012
  • MODEL: BHX 055
  • application type: CNC Wood Machining
  • Location: Germany
  • machine type: CNC Processing Center

Technical Information - HOMAG WEEKE BHX 055

Main drive

  • Number of axis: 3

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Minimum workpiece length: 200 mm
      • - Maximum workpiece length: 3050 mm
      • - Minimum workpiece width: 70 mm
      • - Maximum workpiece width: 850 mm

    Extra information

    • - Tools Vertical Drilling Gear: V13 High Speed, with individually selectable spindles Spindle Distance: 32 mm Horizontal Drilling Gear 4 spindles in X direction 2 spindles in Y direction Grooving Saw: Integrated in the drilling head, with Diameter 100 mm Milling Motor: 5 kW, 6000 - 18000 rpm with manual hydro quick-change system Control Unit Control: Power Control PC 85 Screen: 17-inch TFT screen Woodwop: For graphical, dialogue-oriented creation of CNC programmes Features: Graphical user guidance for managing tool data and workpiece length-dependent machining in the X direction

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
