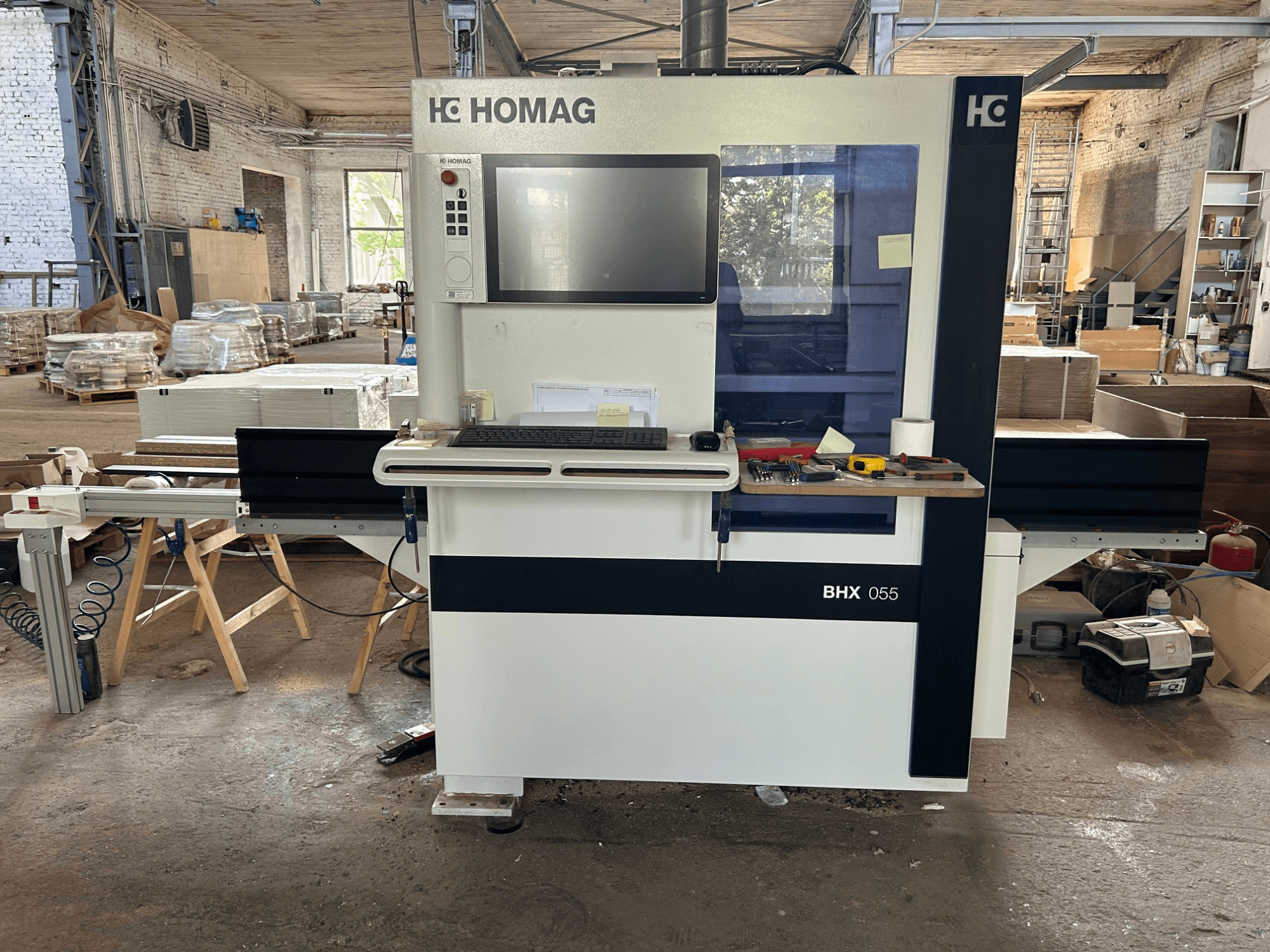

This 3-axis HOMAG WEEKE OPTIMAT BHX 055 was manufactured in 2018. It features a workpiece length capacity of 200 - 3,050 mm and a workpiece width of 70 - 850 mm. The machine includes 13 vertical drilling spindles and 4 horizontal drilling spindles, providing versatile machining capabilities. If you are looking to get high-quality CNC processing capabilities, consider the HOMAG WEEKE OPTIMAT BHX 055 machine we have for sale. Contact us for further details.

Overview

  • brand: HOMAG WEEKE
  • year: 2018
  • MODEL: OPTIMAT BHX 055
  • application type: CNC Wood Machining
  • Location: Poland
  • machine type: CNC Processing Center

Technical Information - HOMAG WEEKE OPTIMAT BHX 055

Dimensions

  • Machine Height: 1895 mm
  • Machine Length: 2950 mm
  • Machine Weight: 1580 kg
  • Machine Width: 1980 mm

Movement

  • Number of Axes: 3

Technical Specification

  • Spindle Power: 5 kW
  • Spindle Speed: 24000 RPM

Additional Information

Used Vertical CNC Machining Center

Brand: Homag

Type: Optimat BHX055

Year of manufacture: 2018

Technical data

  • Vertical CNC drilling and machining center

  • Workpiece length 200 - 3,050 mm

  • Workpiece width 70 - 850 mm

  • Workpiece thickness 12 - 60 mm

  • Milling spindle 1 unit

  • Main spindle power 5 kW

  • Max. speed 18,000-24,000 rpm (depending on configuration)

  • Tool holder HSK-F63 or ETP25

  • Tool changer 4-position magazine

  • Vertical drilling spindles 13

  • Horizontal drilling spindles (X) 4

  • Horizontal drilling spindles (Y) 2

  • Grooving saw X-direction

  • Control system Homag powerTouch / Power Control PC 86

  • Software WOODWOP 7.x

  • Total connected load 11.5 kW

  • Compressed air requirement 7 bar

  • Machine weight approx. 1,580 kg

  • Footprint (L × W × H) approx. 2,950 × 1,984 × 1,895 mm

  • CE marking

Note:

The technical data and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
